Fujitsu ScanSnap S1300 User Manual

Installing Trial Version of the Software
38

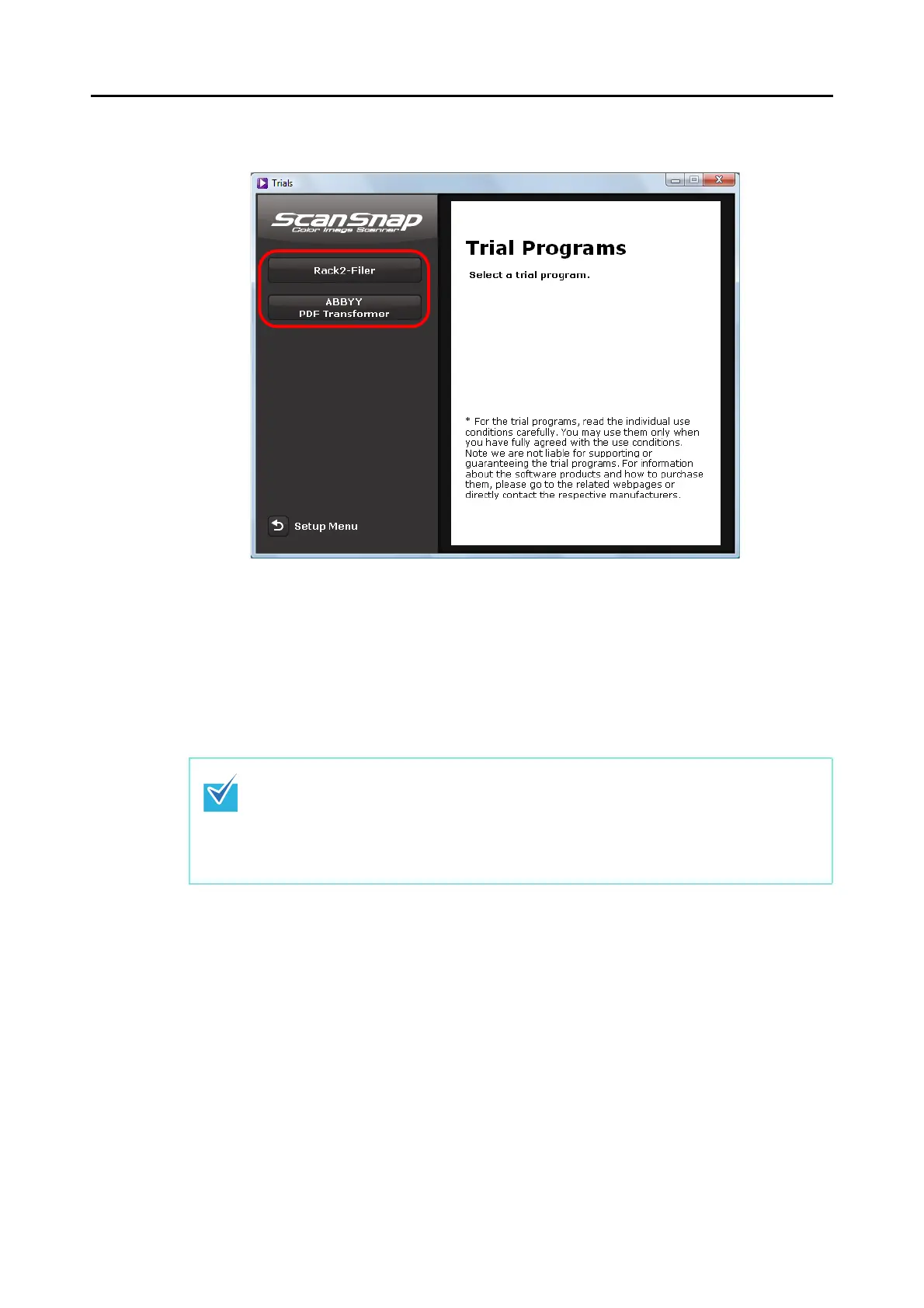

4. Click the button of the trial program you want to install.
D The Setup dialog box for the trial program that you want to install appears.
5. Click the [Install Products] button.
D Installation starts.
6. Follow the instructions on the screen to complete the installation.
7. Click the [Finish] button when the "InstallShield Wizard Complete" notifi-
cation dialog box appears.
8. Remove the Setup DVD-ROM from the DVD-ROM drive.
z Refer to "Readme" of the trial version for more details about the installation. You can
display the "Readme" by clicking the [Readme] button on the trial version setup dialog
box.
z For information on how to use trial versions of the software, refer to the software
manual. You can display the software manuals by clicking the [Manual] button on the
trial version program setup dialog box.

Fujitsu ScanSnap S1300 Specifications

General

Film scanning	No
Color scanning	Yes
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 99 x 77 mm
Power requirements	AC 100 - 240V, 50/ 60 Hz
Non-operating relative humidity (non-condensing)	20 - 80 %
Minimum RAM	512 MB
Minimum storage drive space	2197 MB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Operating temperature (T-T)	5 - 35 °C
Certification	RoHS

Weight and Dimensions

Depth	99 mm
Width	284 mm
Height	77 mm
Weight	1400 g
