Fujitsu ScanSnap S1300 User Manual

About Actions (for Windows users)
91

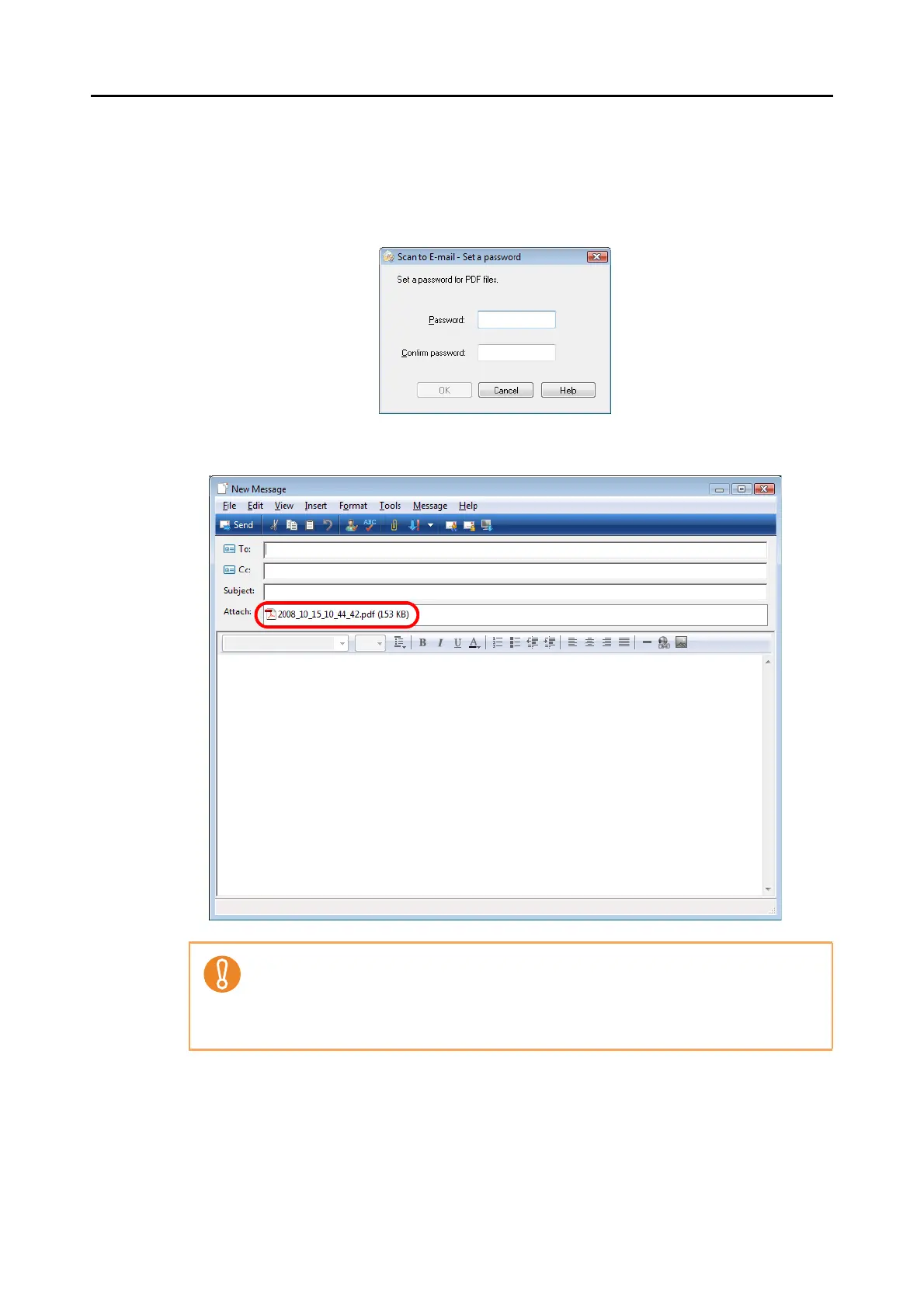

8. Click the [Attach] button.
D When the [Set a "Document Open password" for PDF files] check box is selected in
the [Scan to E-mail - Options] dialog box or the [Scan to E-mail] dialog box, the [Scan
to E-mail - Set a password] dialog box appears.
Enter a password, and then click the [OK] button.
D An e-mail program is started and the file is attached to an e-mail message.
z When the [Scan to E-mail] dialog box is displayed, scanning cannot be performed with
the ScanSnap. Close the [Scan to E-mail] dialog box before scanning the next
document.
z Do not move, delete, or rename the scanned image data in other applications when the
[Scan to E-mail] dialog box is displayed.

Fujitsu ScanSnap S1300 Specifications

General

Film scanning	No
Color scanning	Yes
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 99 x 77 mm
Power requirements	AC 100 - 240V, 50/ 60 Hz
Non-operating relative humidity (non-condensing)	20 - 80 %
Minimum RAM	512 MB
Minimum storage drive space	2197 MB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Operating temperature (T-T)	5 - 35 °C
Certification	RoHS

Weight and Dimensions

Depth	99 mm
Width	284 mm
Height	77 mm
Weight	1400 g
