Fujitsu ScanSnap S1500M User Manual

Actions (for Windows Users)
204
3. Change the settings for [Scan to SugarSync] (If you do not want to
change any settings, go to step 4.).

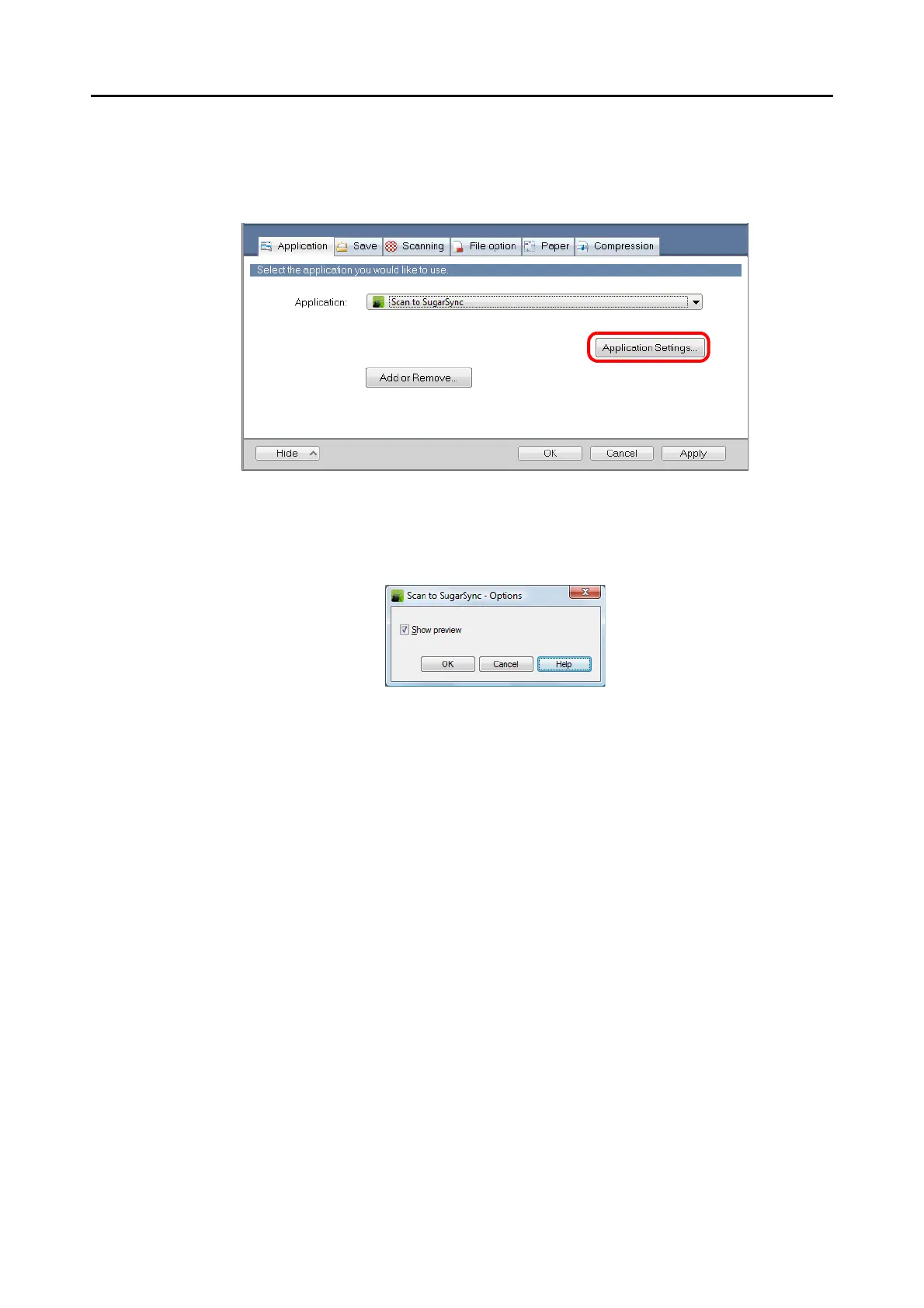

1. Click the [Application Settings] button.
D The [Scan to SugarSync - Options] dialog box appears.
2. Change the settings.
For details about the [Scan to SugarSync - Options] dialog box, refer to the
ScanSnap Manager Help.
3. Click the [OK] button to close the [Scan to SugarSync - Options] dialog box.
4. Click the [OK] button to close the ScanSnap setup dialog box.
5. Load a document in the ScanSnap.
For details about how to load documents, refer to "How to Load Documents" (page 32).
6. Press the [Scan] button on the ScanSnap to start a scan.
D The [Scan to SugarSync] dialog box appears when the scanning is completed.
If you clear the [Show preview] check box in step 3., scanned image is directly saved
to your SugarSync folder.

Fujitsu ScanSnap S1500M Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
Bundled software	Cardiris 3.6, Adobe Acrobat 8 Professional, ABBYY FineReader
Scan media weight	52 - 127 g/m²
Dimensions (WxDxH)	292 x 159 x 158 mm
Power requirements	AC 100V to 240V, 50 / 60 Hz
Dimensions (W x D x H) (imperial)	11.5 x 6.3 x 6.2 \
Minimum storage drive space	2440 MB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	4.5 W
Power consumption (typical)	35 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	3000 g
