124 SPARC Enterprise Mx000 Servers Product Notes for XCP Version 1121 • February 2016

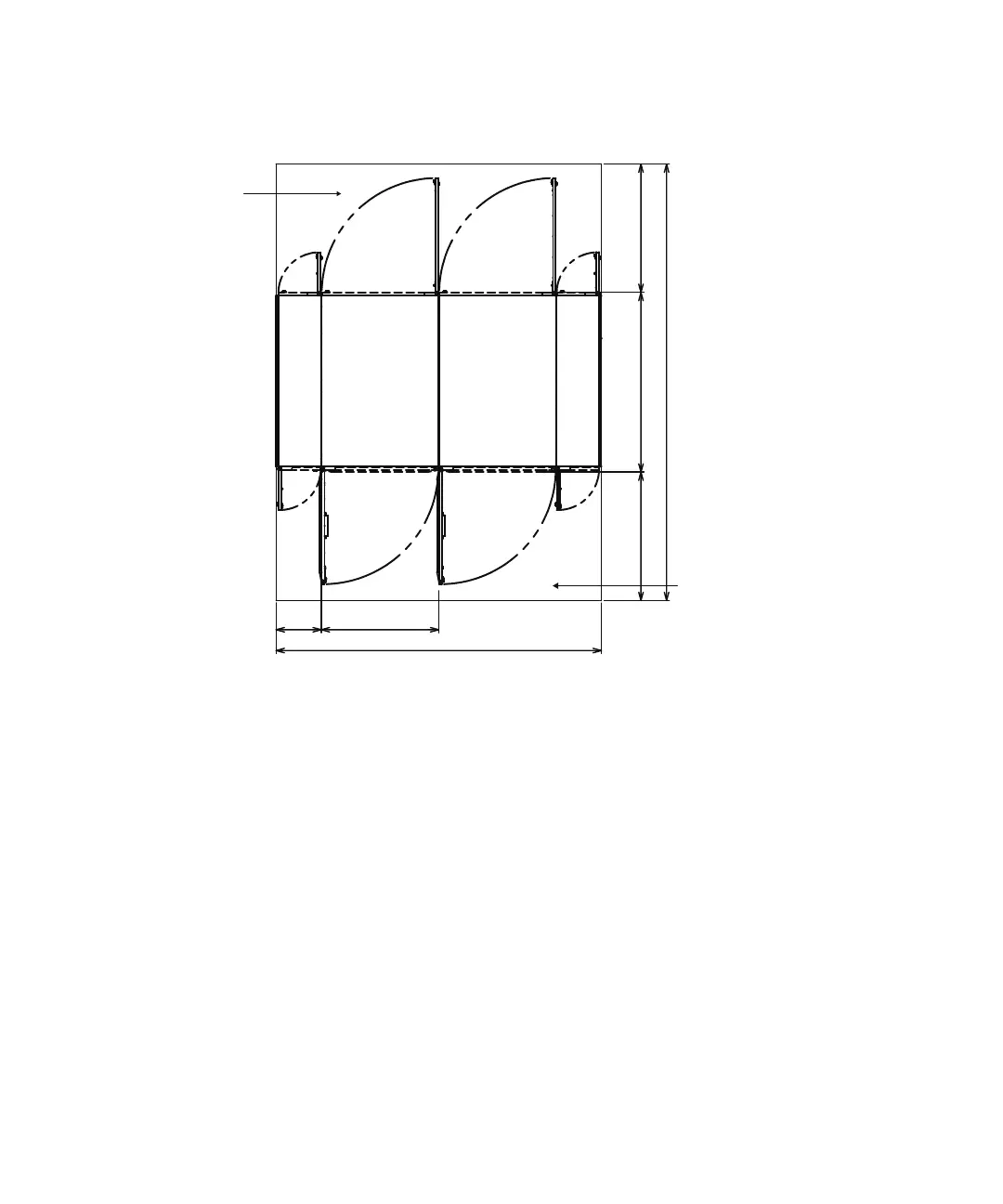

FIGURE 1-16 M9000 Server (Base Cabinet + Expansion Cabinet) + Power Cabinet
Installation Are
Updates of SPARC Enterprise M8000/M9000 Servers
Service Manual
The following information supersedes the information in the SPARC Enterprise
M8000/M9000 Servers Service Manual.
I/O Unit (IOU) Mounting Locations
FIGURE 7-4 shows the mounting locations of IOUs in the M9000 server (with the
expansion cabinet).
Service area
Service area
Unit: mm (inch)
317
(12.5)
824 (32.4)
2282 (89.8)
Power cabinet
Power cabinet
M9000
(Ex. cabinet)
M9000
(Base cabinet)
900 (35.4) 900 (35.4)
1260 (49.6)
3060 (120.5)
Front
