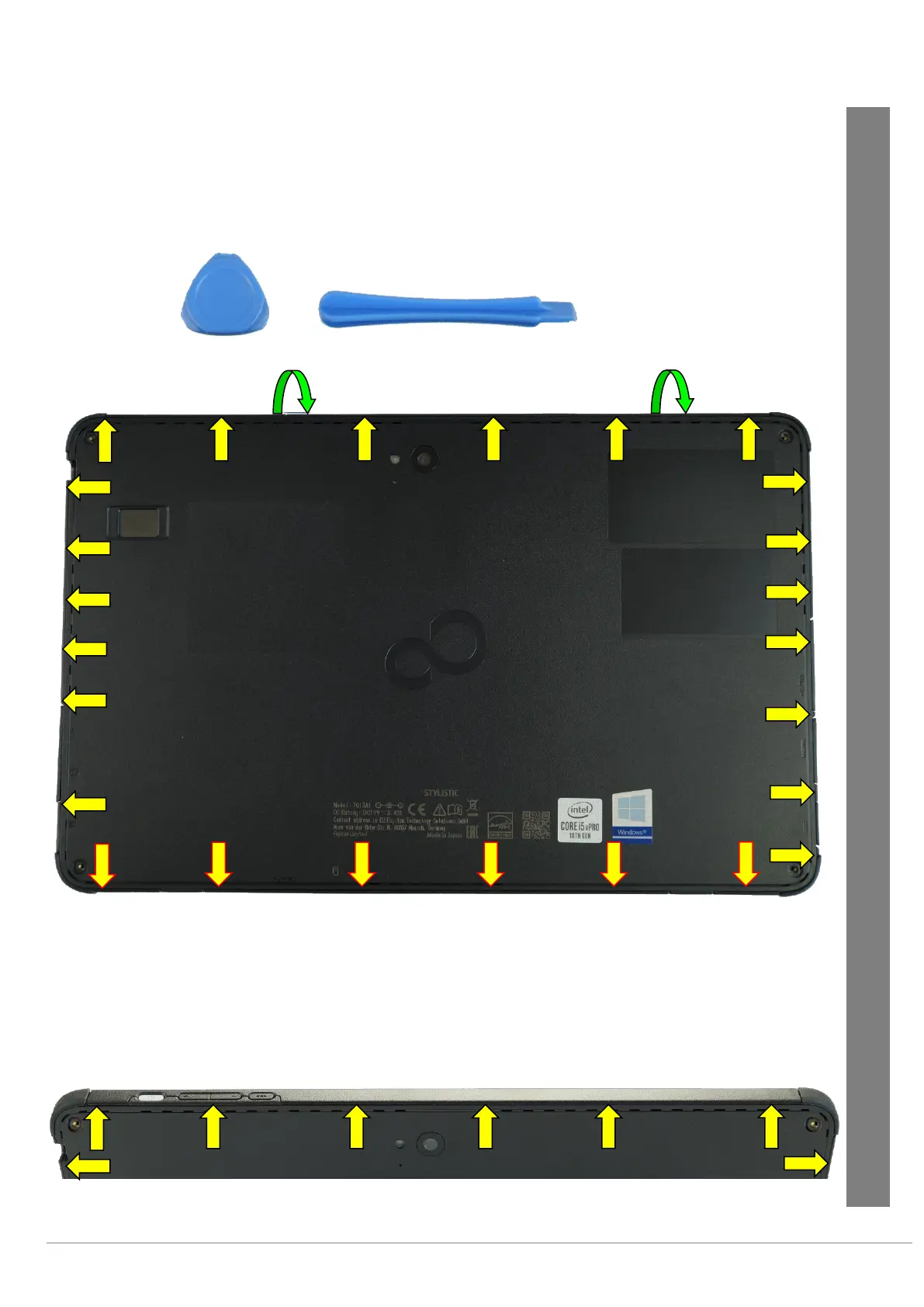

► Use plastic tools to carefully disconnect the LCD back cover assy from the STYLISTIC.
► The plastic tool is to be placed at short distances and in the slits (yellow arrows) between the lower assy and the display to
undo the plastic latches bit by bit.
► Start to do so on the sides or from the bottom (yellow arrows, red border) as shown on the next page.
► Now lift the LCD back cover assy and turn it over (green arrows). Be careful as two cables are still connected to the
mainboard (see picture on the next page).
Please note!
■ Careless movements when separating the LCD back cover assy from the STYLISTIC could damage the connectors on the mainboard that
are still linked to the flexprint cable.
