Fujitsu STYLISTIC Q7310 - Page 13

Page 13 of 64

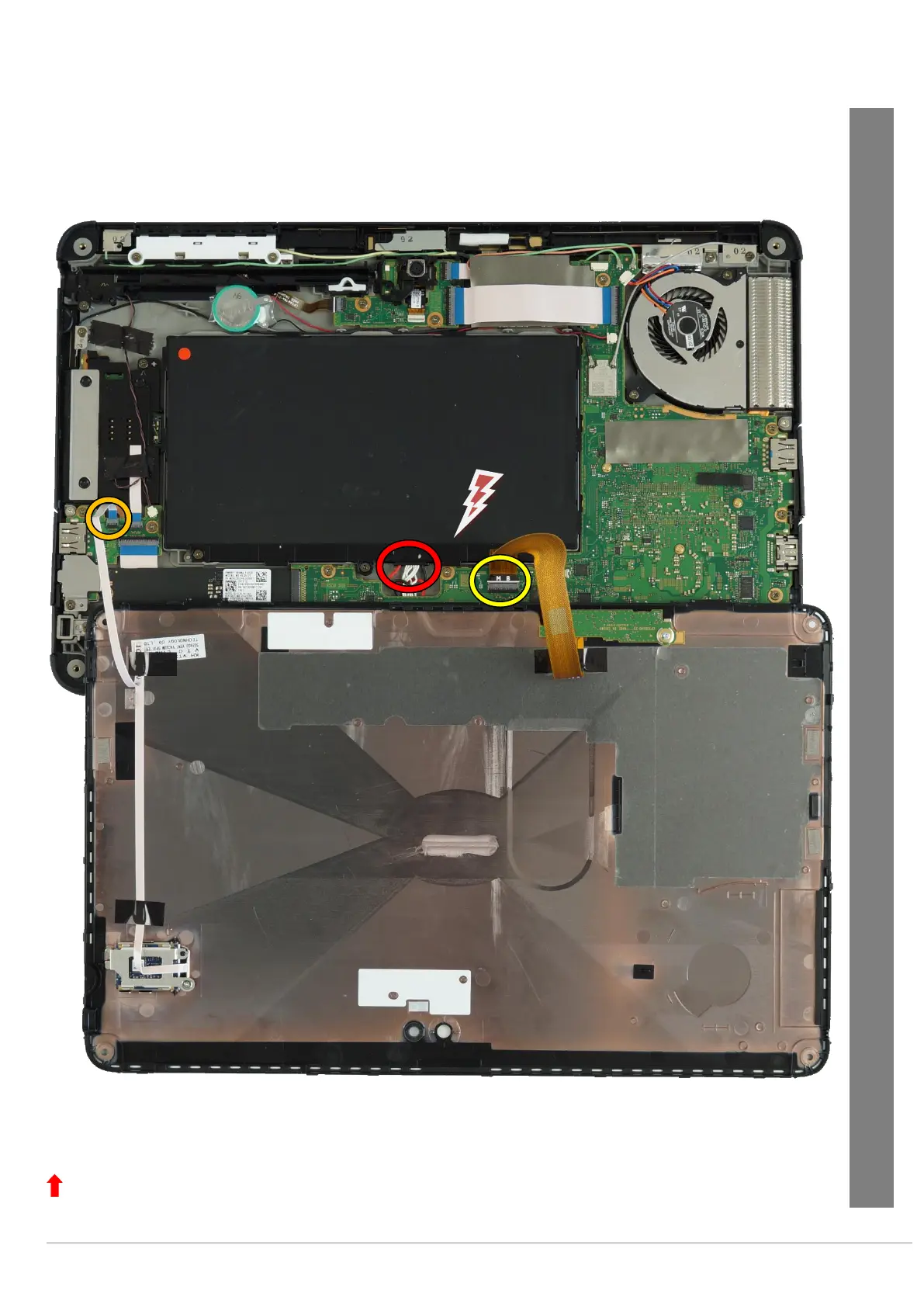

► Carefully place the LCD back cover assy in a position where the cables are not taut.
► First carefully disconnect the battery cable from the battery (red circle).
► Carefully disconnect the SiBeam flexprint cable (yellow circle). This cable is integrated in the LCD back cover assy.
► Disconnect the fingerprint flexprint cable (orange circle).
Return to Table of Contents
Service Partner only
