PRE-DELIVERY INSPECTION PROCEDURE
1-11

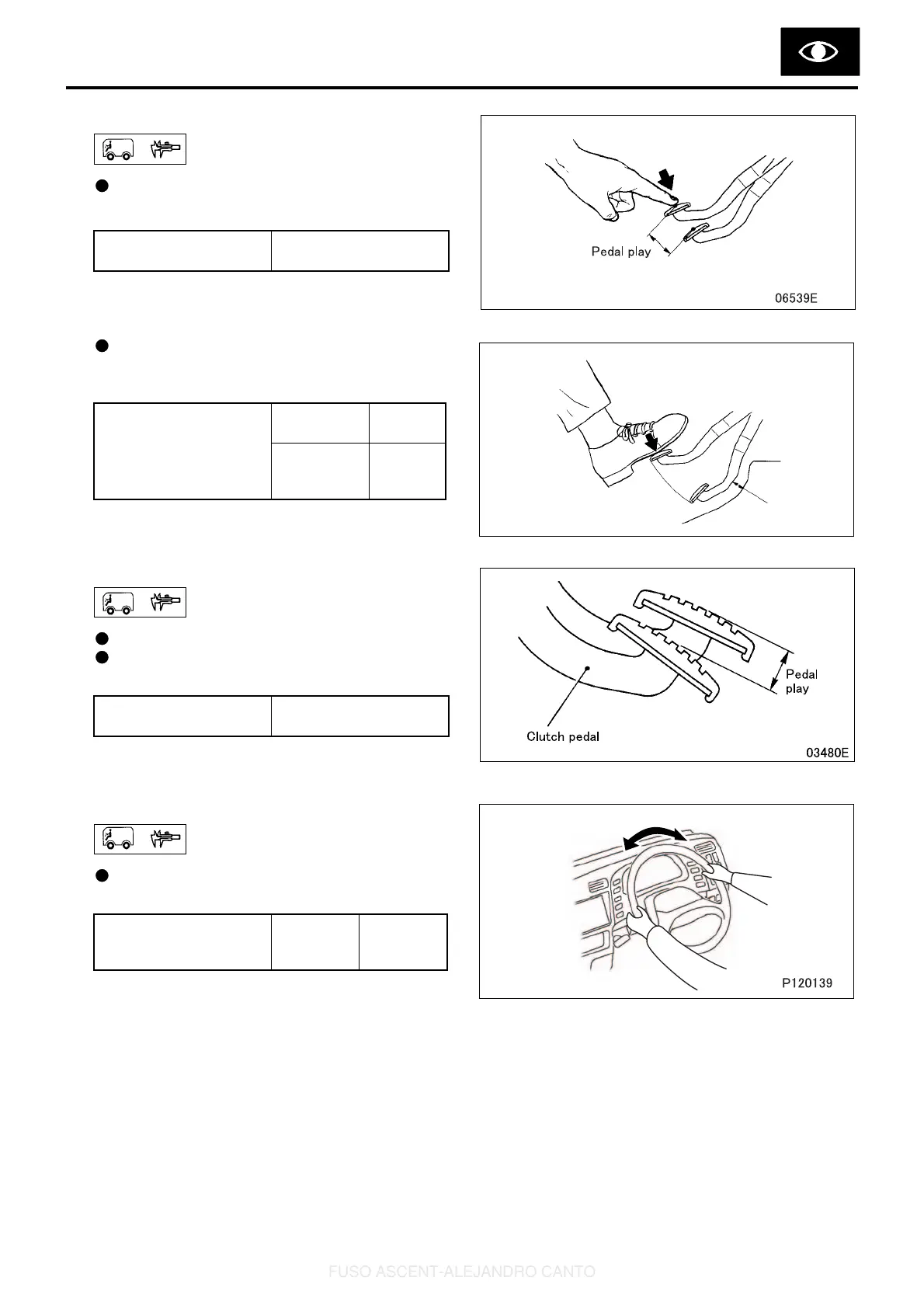

22. BRAKE PEDAL PLAY AND CLEARANCE
With the engine stationary, ensure that the pedal
play conforms to the standard value.
With the engine idling, depress the brake pedal
with a force of 490 N {50 kgf} and measure the
clearance between the brake pedal and floor.
23. CLUTCH PEDAL PLAY
Check clutch pedal play.
Check clutch pedal engagement and disengage-
ment level.
24. STEERING WHEEL PLAY
Place the steering wheel in straight ahead posi-
tion and check for the play.
Brake pedal play
(at center of pedal pad)
10 to 15 mm
Clearance between floor
and brake pedal (when
depressed with a force of
490 N {50 kgf})
With anti-lock
brake system
40 mm
or more
Without
anti-lock
brake system
45 mm
or more
Clutch pedal play
(at center of pedal pad)
0.1 to 7 mm
Steering wheel play
(on the periphery of
steering wheel)
When
engine is
turned off
0 to 25 mm
Height
06540E
