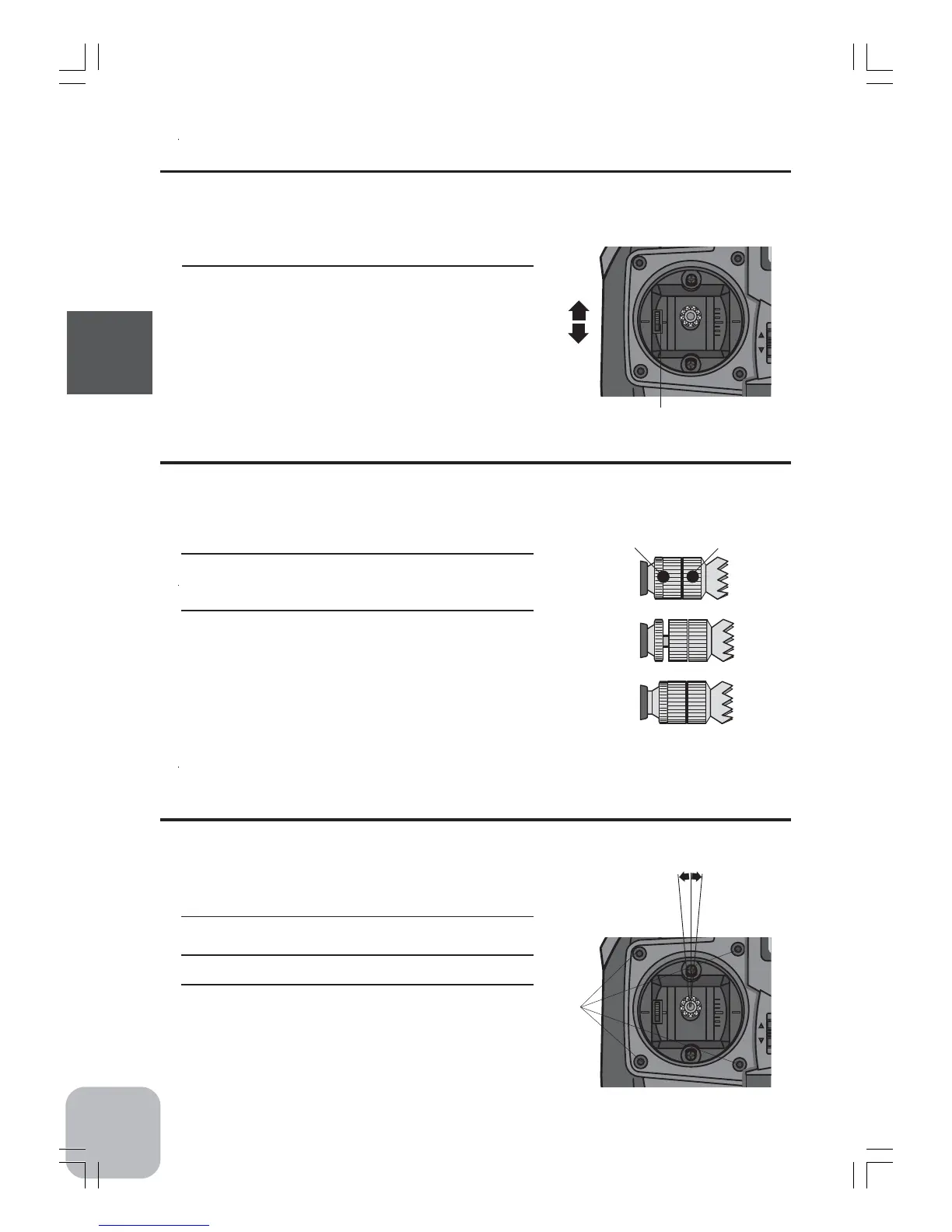

Neutral Adjuster Operation
The neutral adjuster selects the throttle stick neutral position.
- (High side):(brake/back side): 5:5 or 7:3 can be selected.
Setting
Switch to the side that uses the neutral
adjuster lever.
-This function only changes the throttle stick neu-
tral position; it has no effect on the servo neutral
position.
Stick Lever Head Adjustment
Neutral adjuster
5:5
7:3
The length of the lever head of the steering and throttle sticks can be adjusted.
Adjustment
Lever head
“B”
Lever head
“A”
1. Unlock lever head “A” by turning it coun-
terclockwise.
2. Adjust the head to the length best for
you, then lock the heads by turning lever
head “A” clockwise and lever head “B”
counterclockwise.
- When you want a long lever head, use the stick
adapter (sold separately).
Stick Mounting Angle Adjustment
1
2
The mounting angle of the throttle and steering sticks can be adjusted.
- The mounting angle can be adjusted approximately 5 degrees.
Setting
1. Loosen the four set screws.
2. Change the stick angle.
3. Retighten the four set screws.
Set
screws
- The figure at the right shows the throttle stick.
The steering stick can be adjusted similarly.
5 degrees
