80
Functions
BT1BT2
KNB
DT1DT2 DT3
Settable functions
D/R (D/R) : Dual rate function
ATL (ATL) : ATL function
EXP-S (EXPS) : Steering EXP
EXP-F (EXPF) : Throttle EXP (Forward side)
EXP-B (EXPB) : Throttle EXP (Brake side)
EXP-3 (EXP3) : 3rd Channel brake EXP (Brake mixing
fanction-ON)
SPD-T (SPDT) : Steering speed (Turn side)
SPD-R (SPDR) : Steering speed (Return side)
AB.P (AB.P) : A.B.S. function (Return amount)
ABS.D (ABSD) : A.B.S. function (Delay)
ACC-F (ACCF) : Throttle acceleration (Forward side)
ACC-B (ACCB) : Throttle acceleration (Brake side)
ACC-3 (ACC3) : 3rd Channel brake acceration
(Brake mixing fanction-ON)
THSPD (THSP) : Throttle speed
ST-TR (TRMS) : Steering trim
TH-TR (TRMT) : Throttle trim
CH3 (3CH) : Channel 3
D/R2 (D/R2) : 2nd dual rate function
IDL-1 (IDL1) : Idle up 1 function
IDL-2 (IDL2) : Idle up 2 function
TLT13 (TL13) : Tilt mixing (1>3)
TLT31 (TL31) : Tilt mixing (3>1)
PM1-A (PM1A) : Program mixing 1 (RGHT/BRAK/DOWN sides)
PM1-B (PM1B) : Program mixing 1 (LEFT/FWRD/UP sides)
PM2-A (PM2A) : Program mixing 2 (RGHT/BRAK/DOWN sides)
PM2-B (PM2B) : Program mixing 2 (LEFT/FWRD/UP sides)
BK-RT (BKRT) : Brake mixing (rate)
BK-DL (BKDL) : Brake mixing (delay)
B-ABP (BABP) :
3rd Channel brake function -Return amount
(Brake mixing fanction-ON)
B-ABD (BABD) :
3rd Channel brake function -
Delay
(Brake mixing fanction-ON)
CYCLE (CYCL) : A.B.S. function (cycle speed)
OFF (...) : OFF (not used)
Initially set functions
DT1: Steering trim
DT2: Throttle trim
DT3: (Not set)
BT1: Dual rate function
BT2: ATL function
KNB: Channel 3

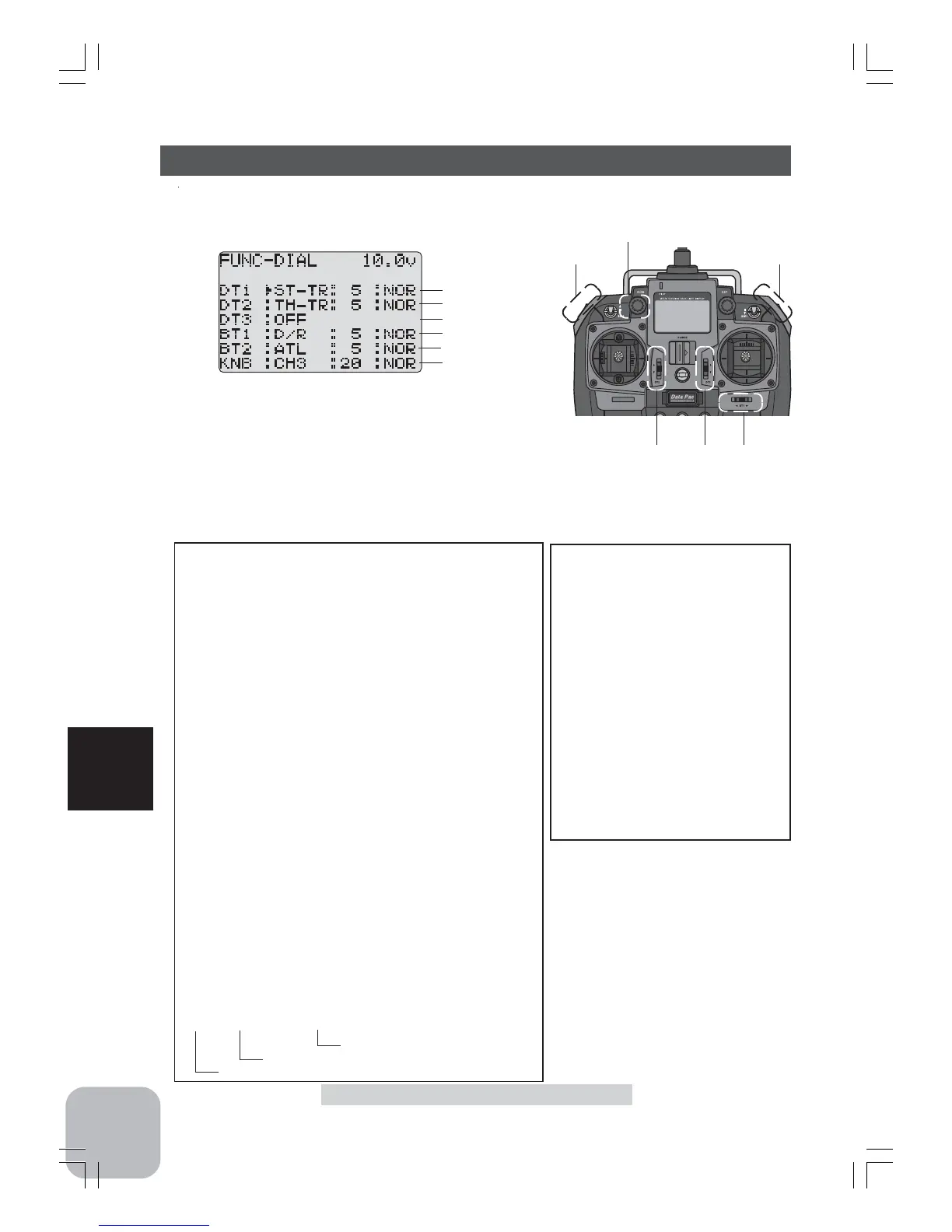

Function select dial/FUNC-DIAL
This function allows selection of the function performed by the trim (BT1/BT2),
knob (KNB), and digital trimmers (DT1/DT2/DT3), step amount adjustment, and
operating direction reversal.
Relationship between set
value and step amount
- Steering trim/throttle trim
(Setting range: 1, 2, 3, 4, 5, 6, 7, 10)
When set to the minimum "1", the trim op-
eration width is 200 clicks. When set to the
maximum "100", the trim operation width is
20 clicks.
- Rate, etc. setup
(Setting range: 1, 2, 3, 4, 5, 6, 7, 10%)
The % value that is operated by 1 click rela-
tive to the set value of each rate can be set.
- Channel 3
(Setting range: 1, 2, 5, 10, 20, 50, 3PS,
2PS)
When set to the minimum "1", the channel 3
total operation width is 200 clicks. When set
to "50", the channel 3 total operation width
is 4 clicks. The total operation width for 3PS
is 2 clicks and the total operation width for
2PS is 1 click. 3PS acts like a 3-position
switch and 2PS acts like a 2-position
switch.
- The table below lists the functions that can be assigned to each
dial, knob, and digital trimmer. The assigned function is also dis-
played on the initial screen together with the current adjustment
value. They are displayed in DT1, DT2, DT3, BT1, BT2, and KNB
order, from top to bottom.
- The step amount can be adjusted. The table below shows the
relationship between set value and step amount.
- The operation direction can be reversed. (NOR/REV)
Function name, etc.
Abbreviation displayed on initial screen
Abbreviation used on setup screen
Function select dial/FUNC-DIAL
