FUTABA 3VCS User Manual

69
Functions
(Initial screen)
Use the or
button to select the
menu screen.
Press the button.
Use the or
button to select the
function.
Press the button.
Calling the setup screen
* When the direct call button is set,
the setup screen is also called by the
following method:
MENU SELECT
DIRECT SEL
Press the and
button simulataneously.
Press the button set
at this function.
* Calling from menu screen
Use the or button to
select the setup item.
* blinks at the current
setup item.
(Initial screen)
MENU

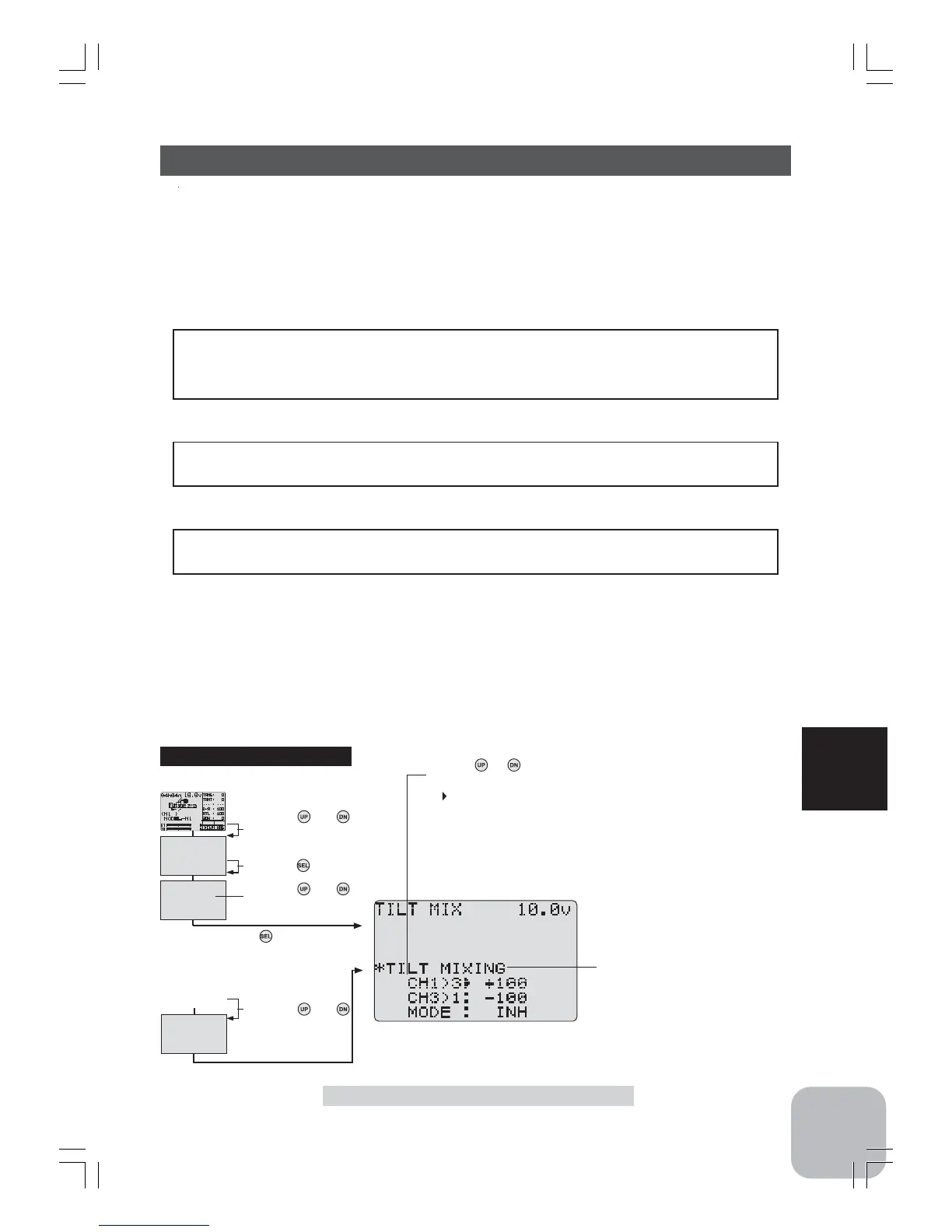

Tilt mixing/TILT-MIX (Steering system/throttle system)
* Tilt mixing function
Adjustment buttons
- Use the (+) and (-) buttons to make
adjustments.
- Press the (+) and (-) buttons simulta-
neously (approx. 1 sec) to return to the
initial screen.
Tilt mixing
This mixing uses an outboard engine with a boat, etc. and applies mixing of both
directions from rudder (steering) to 3rd channel and from 3rd channel to rudder and
allows rudder operation and tilt mixing using 2 servos. Rudder operation by steering
wheel and tilt mixing by 3rd channel knob are possible.
Effect of set value of other functions
The steering side EPA function, ST-EXP function, ST-SPEED function, or ST-D/R
function setting are effective even at 3rd channel side operation. However, the 3rd
channel is not reversed even if the reverse function is set at the steering side.
Slave channel output (Initial value)
Steering > 3rd channel side: +100%
3rd channel > Steering side: -100%
Dial / Trim Setting
The mixing rate amount can be controlled with button trim BT1, BT2 or digital trim
DT3, etc. with the function select dial function. (Page80)
Tilt mixing/TILT MIX (Steering system/throttle system)
