logic) and unused auxiliary encoder inputs may also be used as additional inputs (2 inputs / each axis). The general
inputs as well as the index pulse can also be used as high speed latches for each axis. A high speed encoder
compare output is also provided.
The DMC-4050 through DMC-4080 controller provides an additional 8 optoisolated inputs and 8 high
power optoisolated outputs.
System Elements
As shown in Figure 1.5, the DMC-40x0 is part of a motion control system which includes amplifiers, motors and
encoders. These elements are described below.

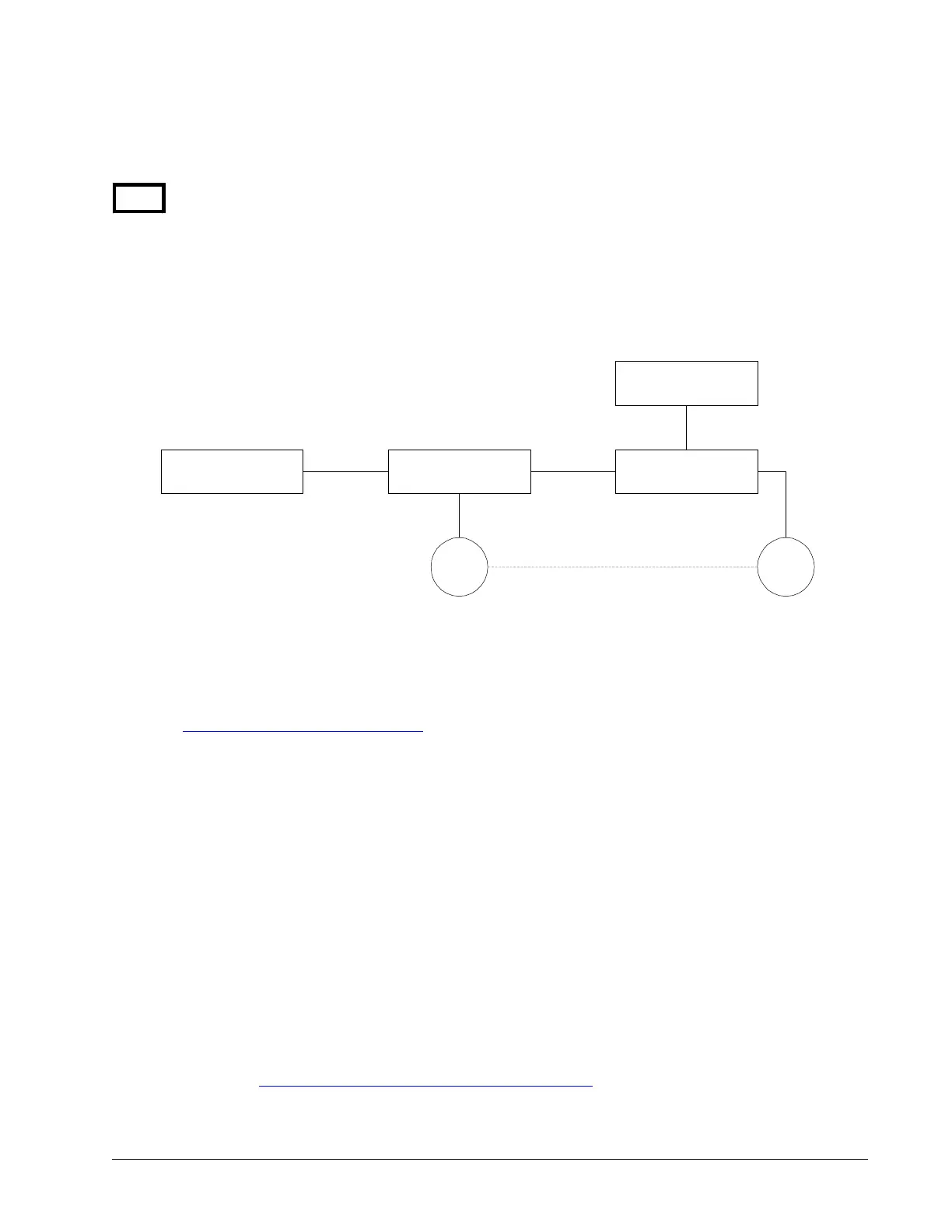

Figure 1.5: Elements of Servo systems
Motor
A motor converts current into torque which produces motion. Each axis of motion requires a motor sized properly
to move the load at the required speed and acceleration. (Galil’s MotorSizer Web tool can help you with motor
sizing: www.galilmc.com/support/motorsizer)
The motor may be a step or servo motor and can be brush-type or brushless, rotary or linear. For step motors, the
controller can be configured to control full-step, half-step, or microstep drives. An encoder is not required when
step motors are used.
Other motors and devices such as Ultrasonic Ceramic motors and voice coils can be controlled with the DMC-40x0.
Amplifier (Driver)
For each axis, the power amplifier converts a ±10 volt signal from the controller into current to drive the motor.
For stepper motors, the amplifier converts step and direction signals into current. The amplifier should be sized
properly to meet the power requirements of the motor. For brushless motors, an amplifier that provides electronic
commutation is required or the controller must be configured to provide sinusoidal commutation. The amplifiers
may be either pulse-width-modulated (PWM) or linear. They may also be configured for operation with or without
a tachometer. For current amplifiers, the amplifier gain should be set such that a 10 volt command generates the
maximum required current. For example, if the motor peak current is 10A, the amplifier gain should be 1 A/V. For
velocity mode amplifiers, 10 volts should run the motor at the maximum speed.
Galil offers amplifiers that are integrated into the same enclosure as the DMC-40x0. See the Integrated section in
the Appendices or http://galilmc.com/products/accelera/dmc40x0.html for more information.
Chapter 1 Overview ▫ 8 DMC-40x0 User Manual
Computer DMC-40x0 Controller
Amplifier (Driver)
Power Supply
Encoder Motor
