A9 – CMB-41012 (-C012)
Description

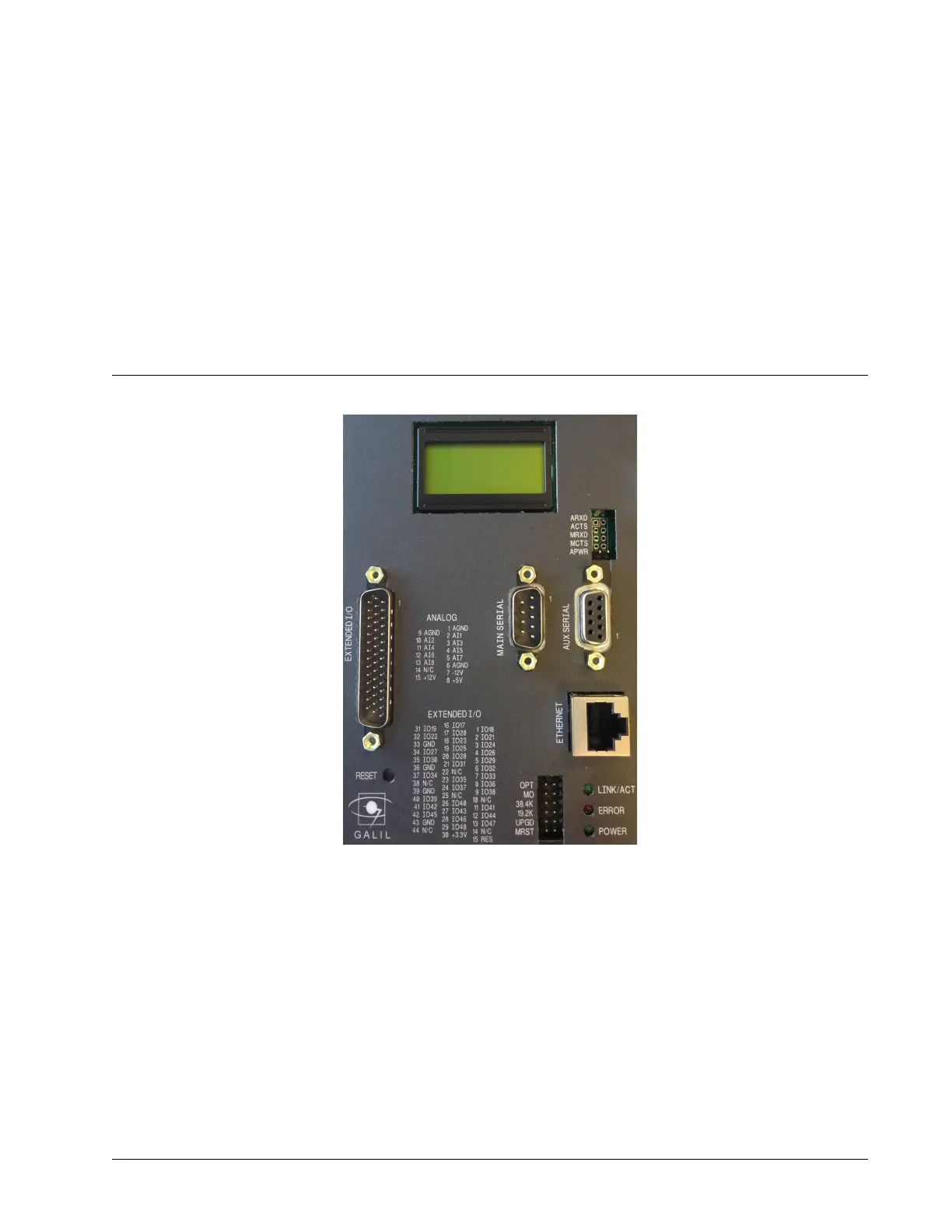

The CMB-41012 provides the connections for the Ethernet and Serial communication as well as the D-Sub
connector for the Extended I/O. The CMB-41012 also contains the 8x2 character LCD.
See Extended I/O, pg 42 for Electrical Specifications of Extended I/O.
A9 – CMB-41012 (-C012) ▫ 255 DMC-40x0 User Manual
