Galil Motion Control DMC-40 0 Series User Manual

Chapter 2 Getting Started
Layout
The following layouts assume either an ICM-42000(I000) or ICM-42100(I100) interconnect modules are installed.
For layouts of systems with ICM-42200’s(I200) installed please contact Galil. Overall dimensions and footprint are
identical, the only differences are in connector type and location.
DMC-4040

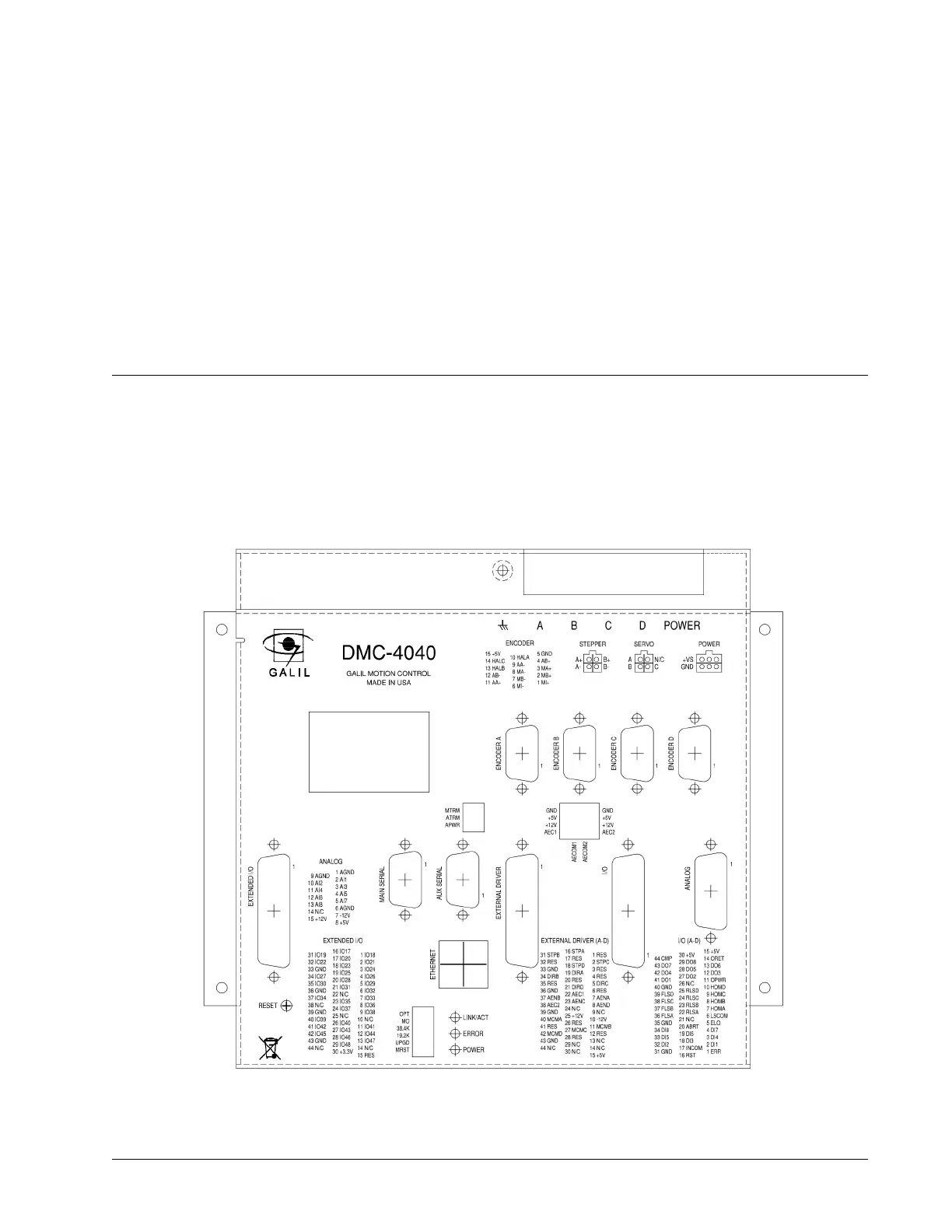

Figure 2.1: Outline of the of the DMC-40x0 1-4 axes model
Chapter 2 Getting Started ▫ 10 DMC-40x0 User Manual
