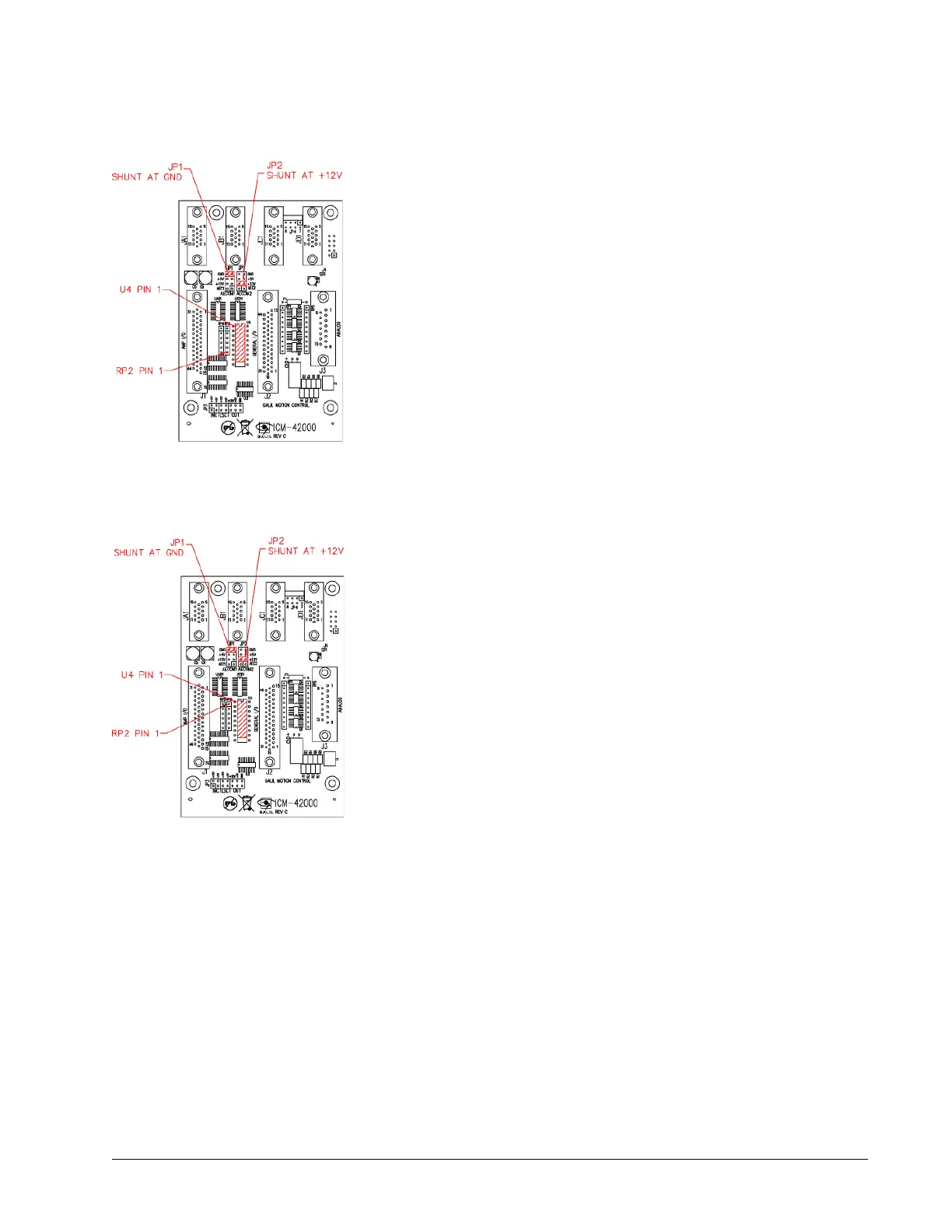

+12V High Amp Enable Sourcing Configuration

+12V Low Amp Enable Sourcing Configuration

Appendices ▫ 201 DMC-40x0 User Manual

From Default Configuration:

1. Move U4 up one pin location on socket

2. Reverse RP2

3. Change JP1 to GND

4. Change JP2 to +12V

From Default Configuration:

1. Move U4 up one pin location on socket

2. Change JP1 to GND

3. Change JP2 to +12V
