Galil Motion Control DMC-40 0 Series User Manual

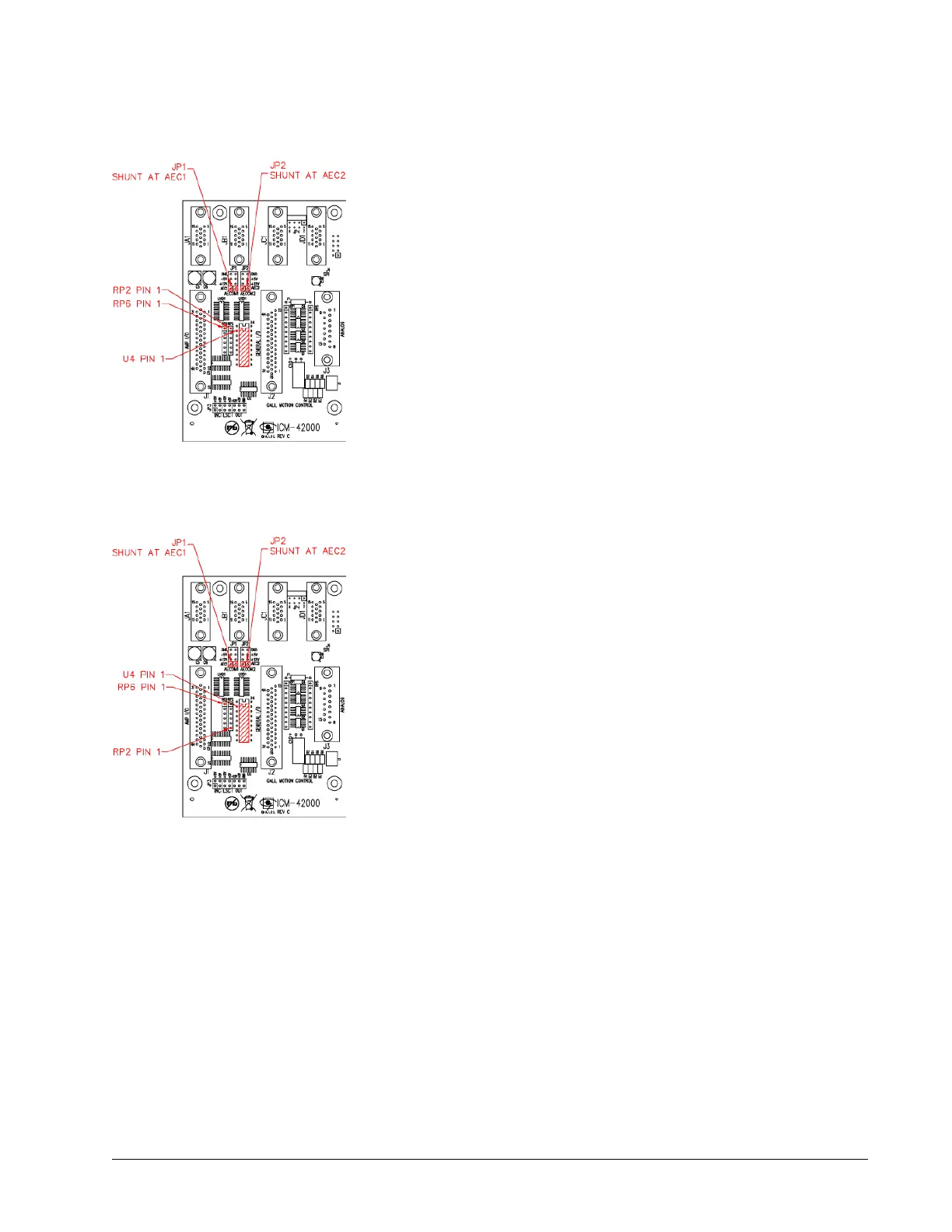

Isolated Power High Amp Enable Sinking Configuration
Isolated Power Low Amp Enable Sinking Configuration
Appendices ▫ 202 DMC-40x0 User Manual
AEC1 = V+
AEC2 = V-
For +5V to +12V, RP6 = 820 Ω
For +13V to +24V, RP6 = 4.7 kΩ
From Default Configuration:
1. Change JP1 to AEC1
2. Change JP2 to AEC2
3. If AEC1 is +13V to +24V, Replace RP6 with 4.7K
Resistor Pack
AEC1 = V+
AEC2 = V-
For +5V to +12V, RP6 = 820 Ω
For +13V to +24V, RP6 = 4.7 kΩ
From Default Configuration:
1. Reverse RP2
2. Change JP1 to AEC1
3. Change JP2 to AEC2
4. If AEC1 is +13V to +24V, Replace RP6 with 4.7K
Resistor Pack
