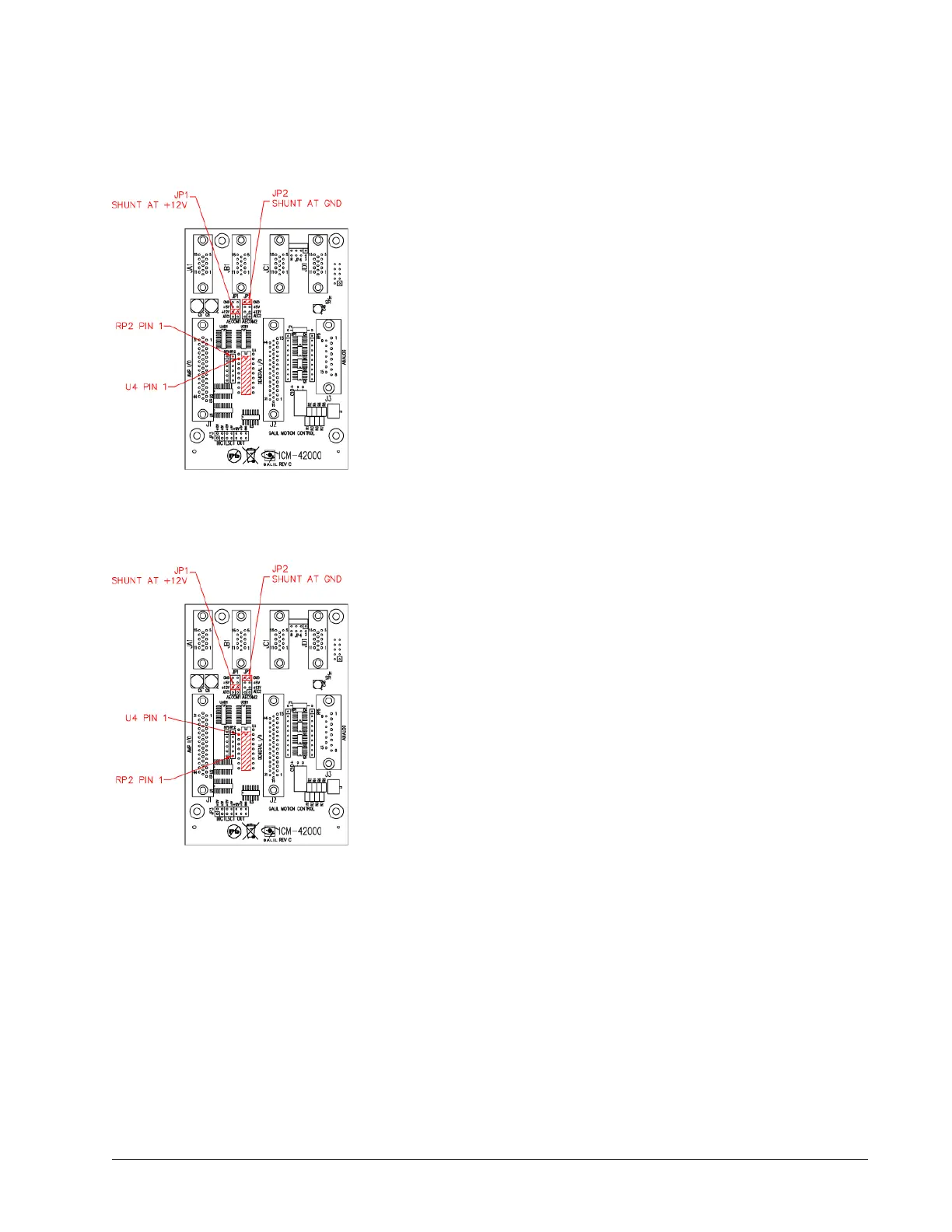

+12V High Amp Enable Sinking Configuration
(Does not require the removal of Metal)
+12V Low Amp Enable Sinking Configuration
Appendices ▫ 200 DMC-40x0 User Manual
From Default Configuration:
1. Change JP1 to +12V
From Default Configuration:
1. Reverse RP2
2. Change JP1 to +12V
To Next Page
