A10 – CMB-41022 (-C022)
Description

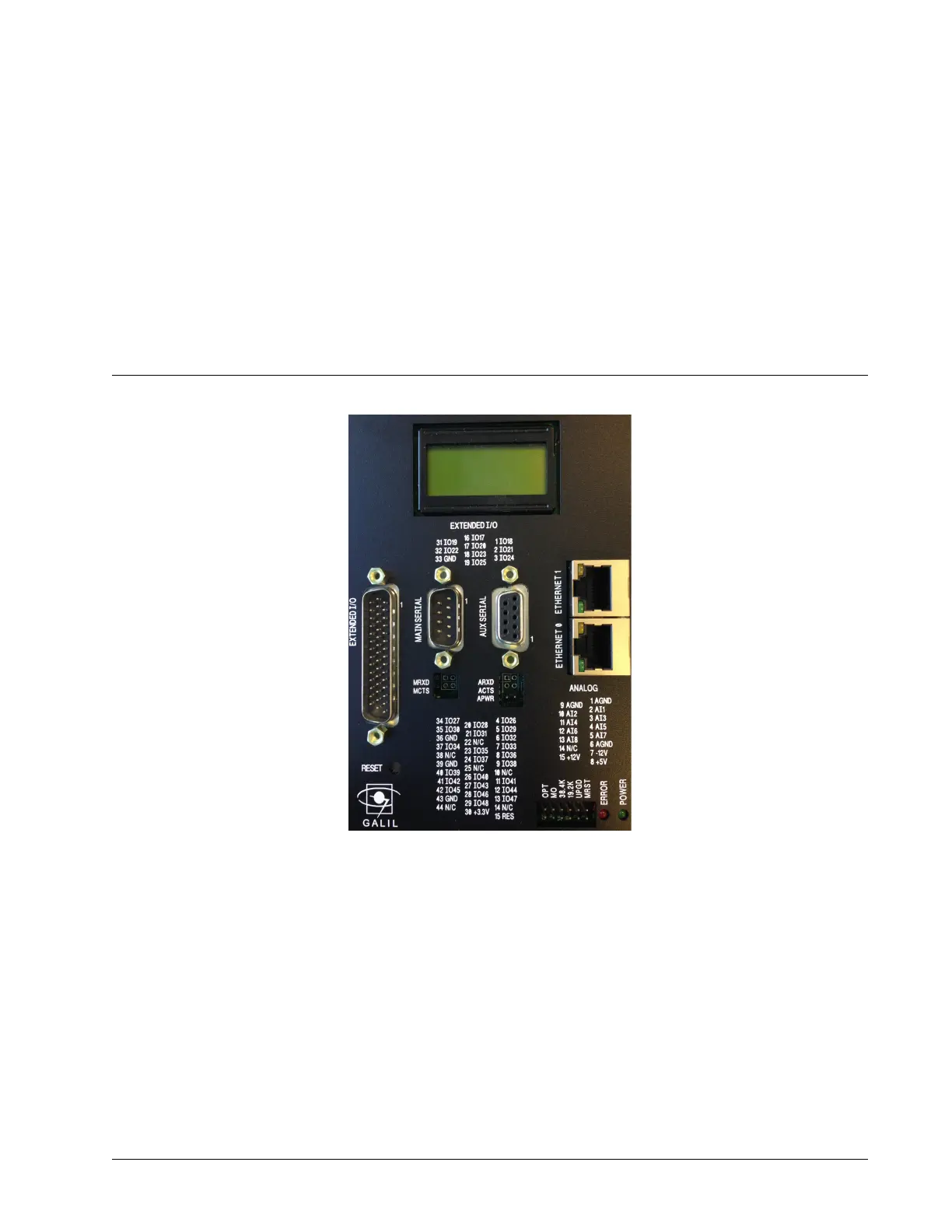

The CMB-41022 differs from the CMB-41012 (default) in that it has second Ethernet port, as shown in the figure
above. The CMB provides the connections for both Ethernet and Serial communication as well as the 44-pin HD D-
Sub connector for the Extended I/O. An 8x2 character LCD screen is used to display the status of each axis, or can
display a custom message if desired.
See Extended I/O, pg 42 for Electrical Specifications of Extended I/O.
A10 – CMB-41022 (-C022) ▫ 259 DMC-40x0 User Manual
