Galil Motion Control DMC-40 0 Series User Manual

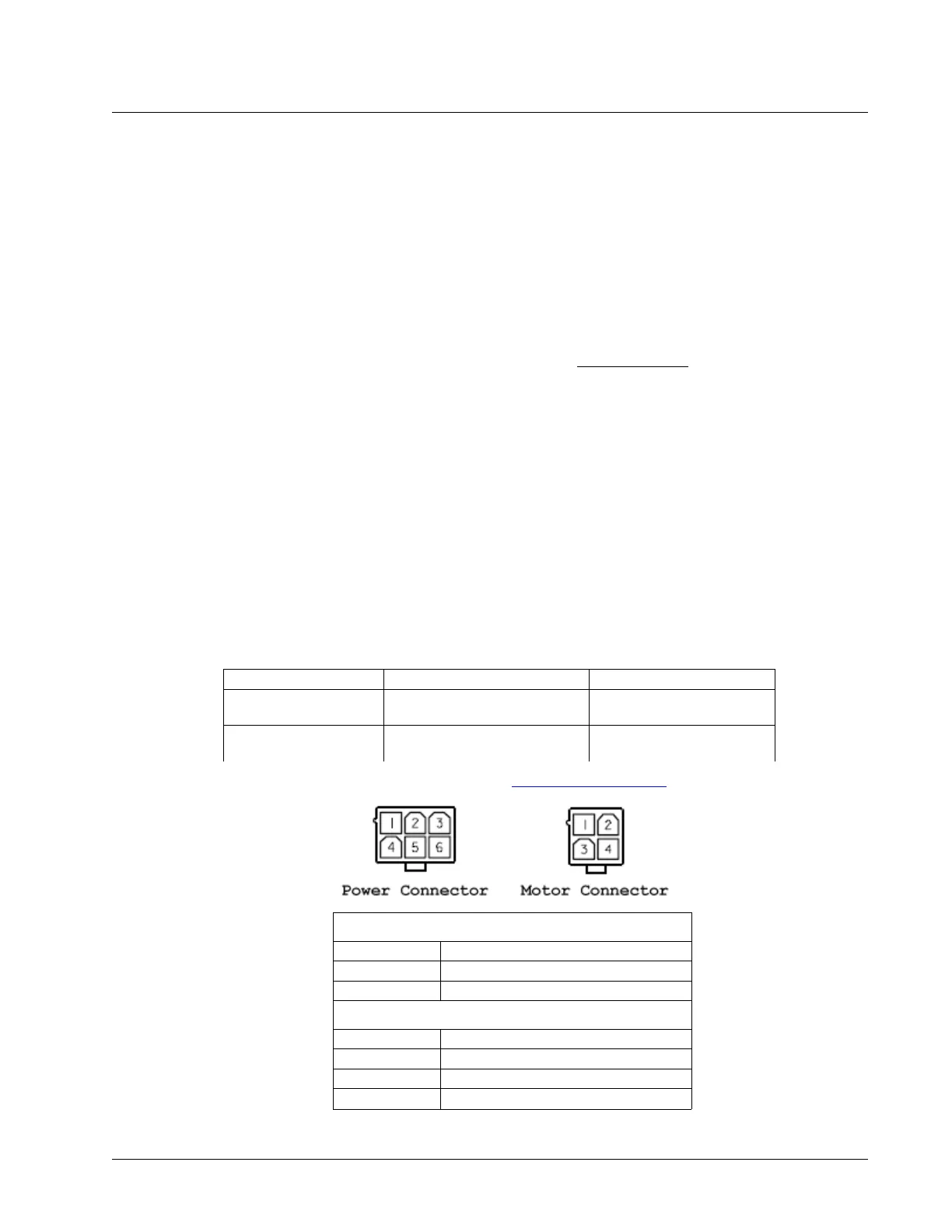

Electrical Specifications
The amplifier is a brush/brushless trans-conductance PWM amplifier. The amplifier operates in torque mode, and
will output a motor current proportional to the command signal input.
Supply Voltage: 20-80 V
DC
Continuous Current: 7 A
Peak Current 10 A
Nominal Amplifier Gain 0.7 A/V
Switching Frequency 60 kHz (up to 140 kHz available-contact Galil)
Minimum Load Inductance
L(mH )=
Vs(V )
480∗I
Ripple
(A)
Where:
Vs = Supply Voltage
I
ripple
= 10% of the maximum current at chosen gain setting
Brushless Motor Commutation angle 120° (60° option available)
The default PWM output operation on the AMP-430x0(-D3040, -D3020) is Inverter Mode. The
minimum inductance calculations above are based on Inverter mode. If you have a motor with lower
inductance, Chopper mode can be applied for the PWM output. Contact a Galil Applications Engineer
to review minimum inductance requirements if Chopper mode operation is required.
Mating Connectors
On Board Connector Terminal Pins
POWER
6-pin Molex Mini-Fit, Jr.™
MOLEX# 39-31-0060
MOLEX#44476-3112
A,B,C,D: 4-pin Motor
Power Connectors
4-pin Molex Mini-Fit, Jr.™
MOLEX# 39-31-0040
MOLEX#44476-3112
For mating connectors see http://www.molex.com/
Power Connector
Pin Number Connection
1,2,3 DC Power Supply Ground
4,5,6 +VS (DC Power)
Motor Connector
1 Phase C (N/C for Brushed Motors)
2 Phase B
3 No Connect
4 Phase A
A1 – AMP-430x0 (-D3040,-D3020) ▫ 214 DMC-40x0 User Manual
