Part Numbers
The DMC-40x0 is modular by nature, meaning that a customer must specify several components in order to create
a full part number. The user must specify the main control board (DMC), the communication board (CMB), and the
interconnect module (ICM) to have a complete unit. The user can also specify an optional internal amplifier (AMP
or SDM). How these models stack up internally is shown in Figure 1.1 for 1-4 axis models.
For 5-8 axis models, the user must also specify an additional ICM and optional internal amplifier type for axis 5-8 as
shown in Figure 1.2.
Each module has it's own set of part numbers and configuration options that make the full part number of a DMC-
40x0 unit. The DMC has the part number format “DMC-40X0(Y),” the CMB is “-CXXX(Y),” the ICM is “-IXXX(Y),” and
the AMP/SDM is “-DXXX(Y),” where X designates different module options and Y designates different configuration
options for these modules. The full DMC-40x0 part number would be the full string of individual module part
numbers combined as shown for 1-4 and 5-8 axis models in Figure 1.3.
Chapter 1 Overview ▫ 2 DMC-40x0 User Manual

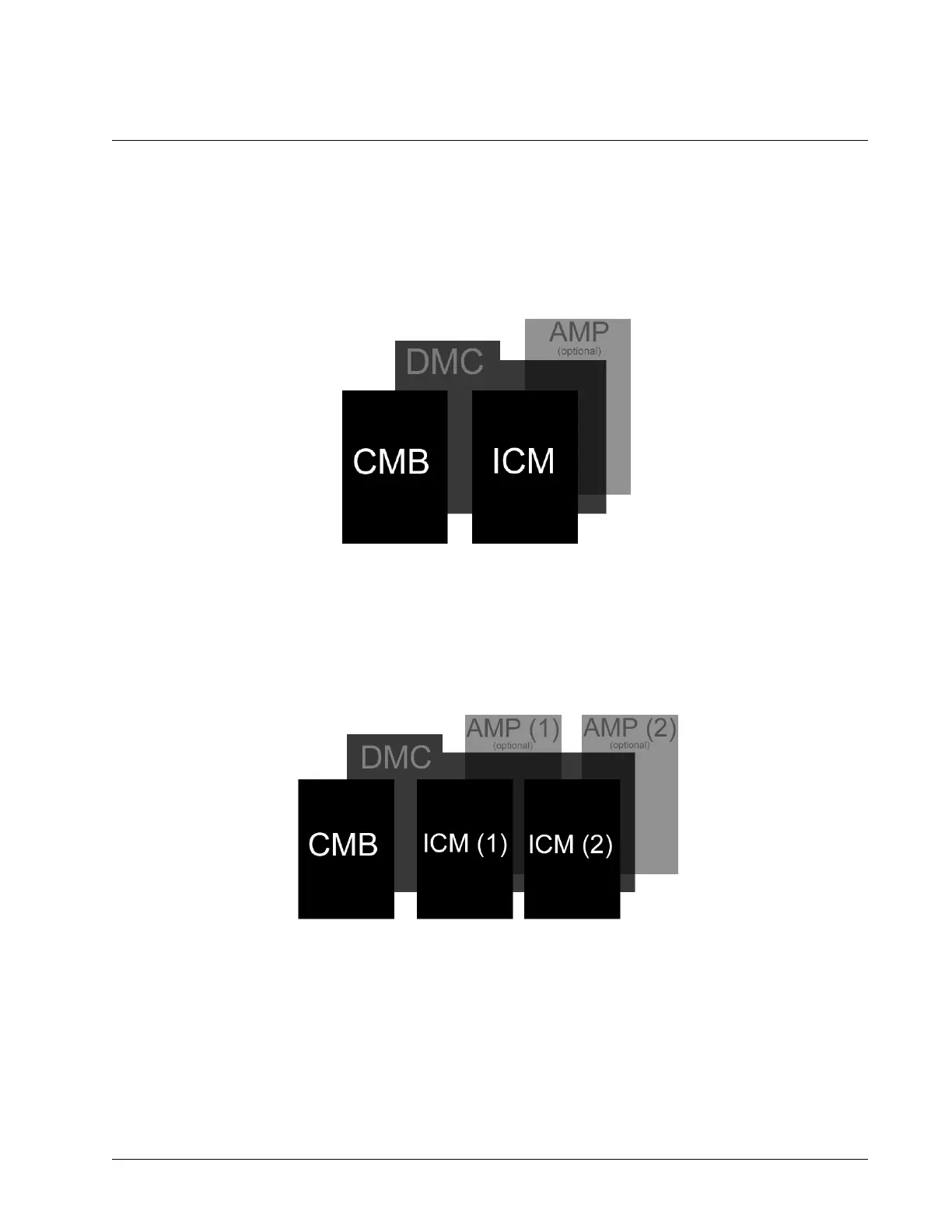

Figure 1.1: Abstract internal layout of the DMC-40x0 for 1-4 axis models
Figure 1.2: Abstract internal layout of the DMC-40x0 for 5-8 axis models
