Electrical Specifications
DC Supply Voltage: 12-30 VDC
In order to run the SDM-44040 in the range of 12-20 VDC, the
ISCNTL – Isolate Controller Power option must be ordered
Max Current (per axis) 1.4 Amps/Phase (Selectable with AG command)
Maximum Step Frequency: 6 MHz
Motor Type: Bipolar 2 Phase
Mating Connectors
On Board Connector Terminal Pins
POWER
6-pin Molex Mini-Fit, Jr.™
MOLEX# 39-31-0060
MOLEX#44476-3112
A,B,C,D: 4-pin Motor
Power Connectors
4-pin Molex Mini-Fit, Jr.™
MOLEX# 39-31-0040
MOLEX#44476-3112
For mating connectors see http://www.molex.com/

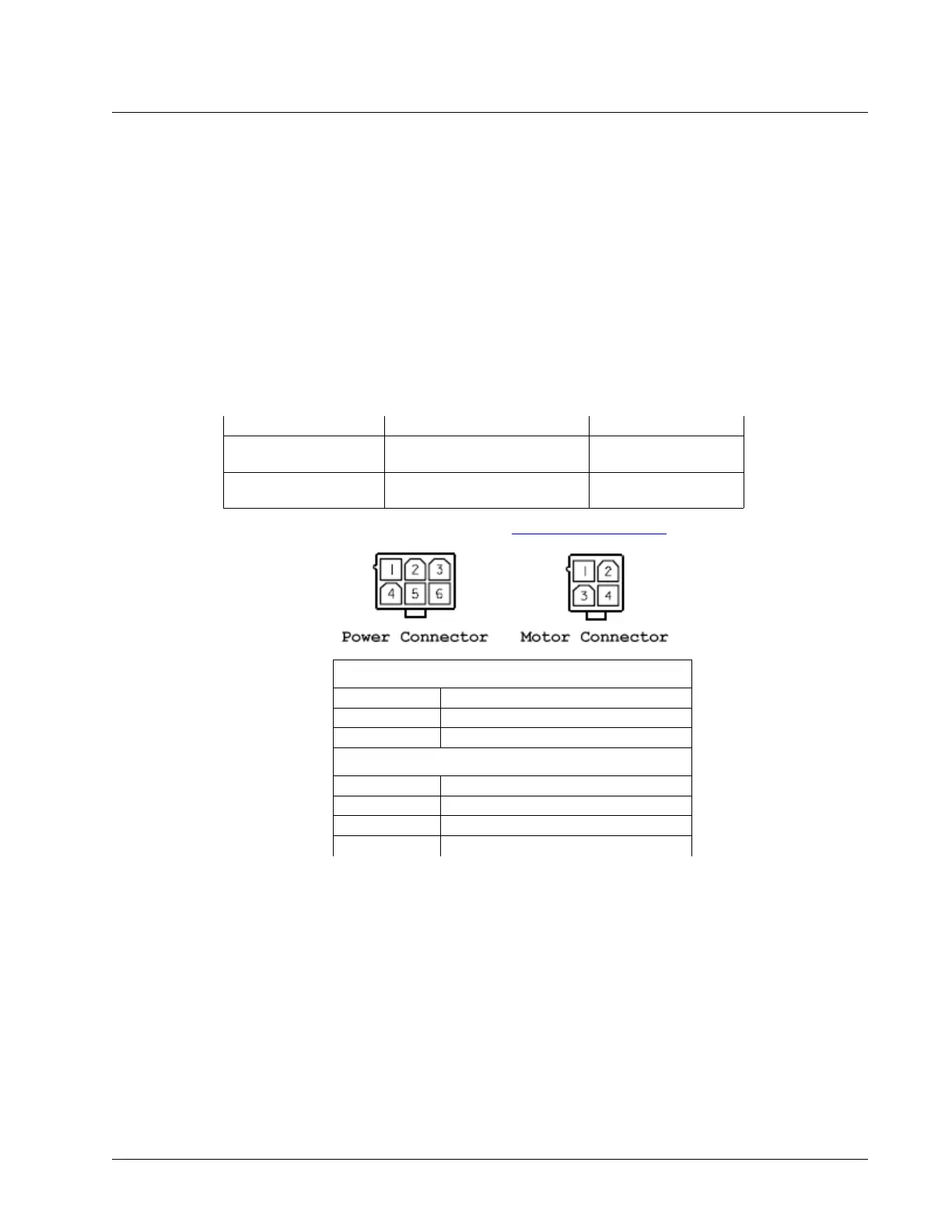

Power Connector
Pin Number Connection
1,2,3 DC Power Supply Ground
4,5,6 +VS (DC Power)
Motor Connector
1 B-
2 A-
3 B+
4 A+
A7 – SDM-440x0 (-D4040,-D4020) ▫ 248 DMC-40x0 User Manual
