Part number ordering example: DMC-4010(TRES)-C012-I000
-16 bit – 16 bit Analog Inputs
The -16 bit option provides 16 bit analog inputs on the DMC-40x0 motion controller. The standard resolution of
the analog inputs is 12 bits.
Part number ordering example: DMC-4010(-16bit)-C012-I000
4-20mA – 4-20mA analog inputs
The 4-20mA option converts all 8 analog inputs into 4-20mA analog inputs. This is accomplished by installing 475W
precision resistors between the analog inputs and ground. When using this option the analog inputs should be
configured for 0-10V analog inputs using the AQ command (AQ n,4). The equation for calculating the current is:
I
ma
= 2.105 V
Where I
ma
= current in mA
V = Voltage reading from DMC-40x0
Part number ordering example: DMC-4010(4-20mA)-C012-I000
ISCNTL – Isolate Controller Power
The ISCNTL option isolates the power input for the controller from the power input of the amplifiers. With this
option, the power is brought in through the 2 pin Molex connector on the side of the controller as shown in the
Power Connections section in Chapter 2. This option is not valid when Galil amplifies are not ordered with the
DMC-40x0. Molex connector part numbers and power connector pin-outs can be found here: Power Connector
Part Numbers, pg 192.
Part number ordering example: DMC-4010(ISCNTL)-C012-I000-D3020
ETL – ETL Certified DMC-40x0
The DMC-40x0 can be ordered in a configuration that is ETL listed. ETL Mark is shown in Figure A.2.
Appendices ▫ 186 DMC-40x0 User Manual
Figure A.2: ETL Mark with (ETL) Option

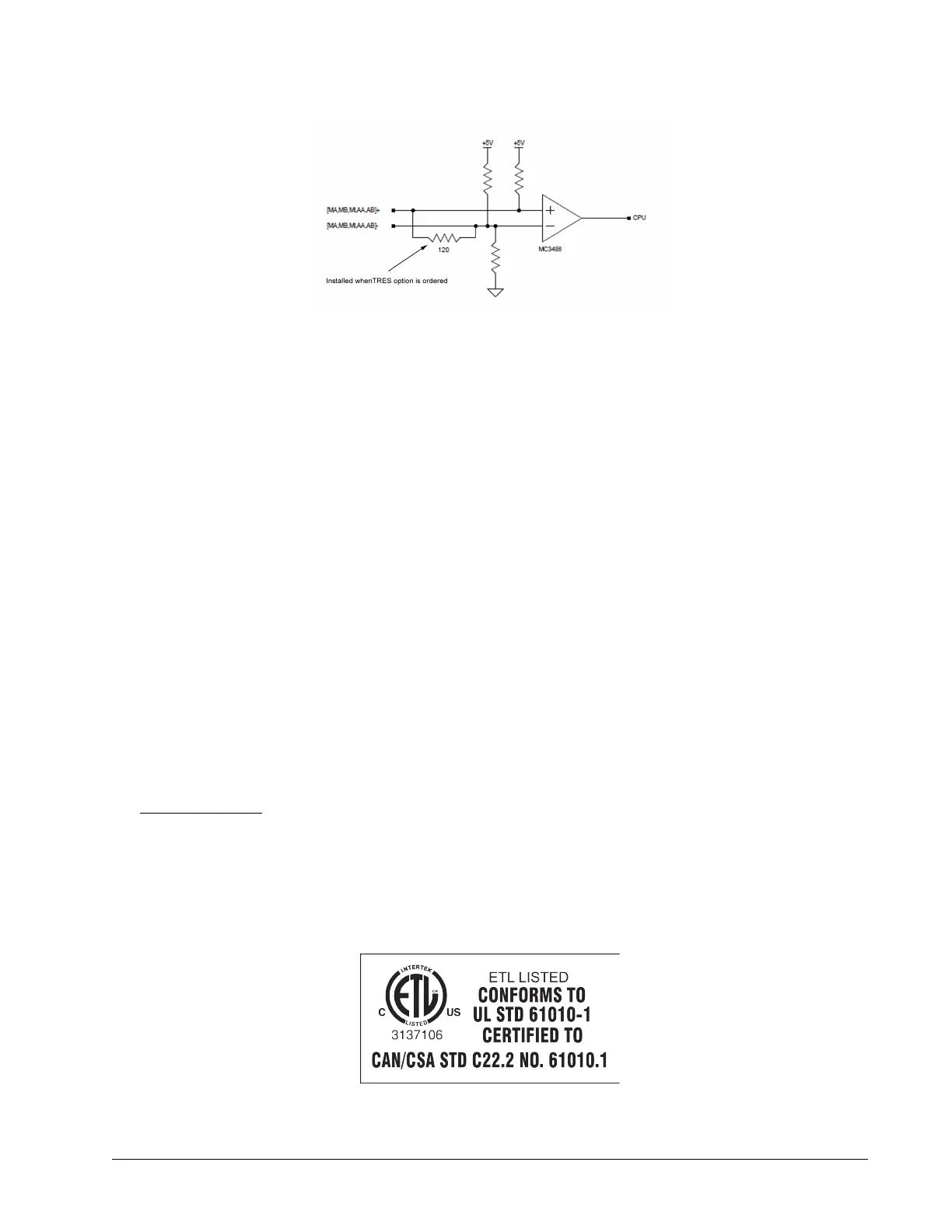

Figure A.1: Encoder Inputs with -TRES option
