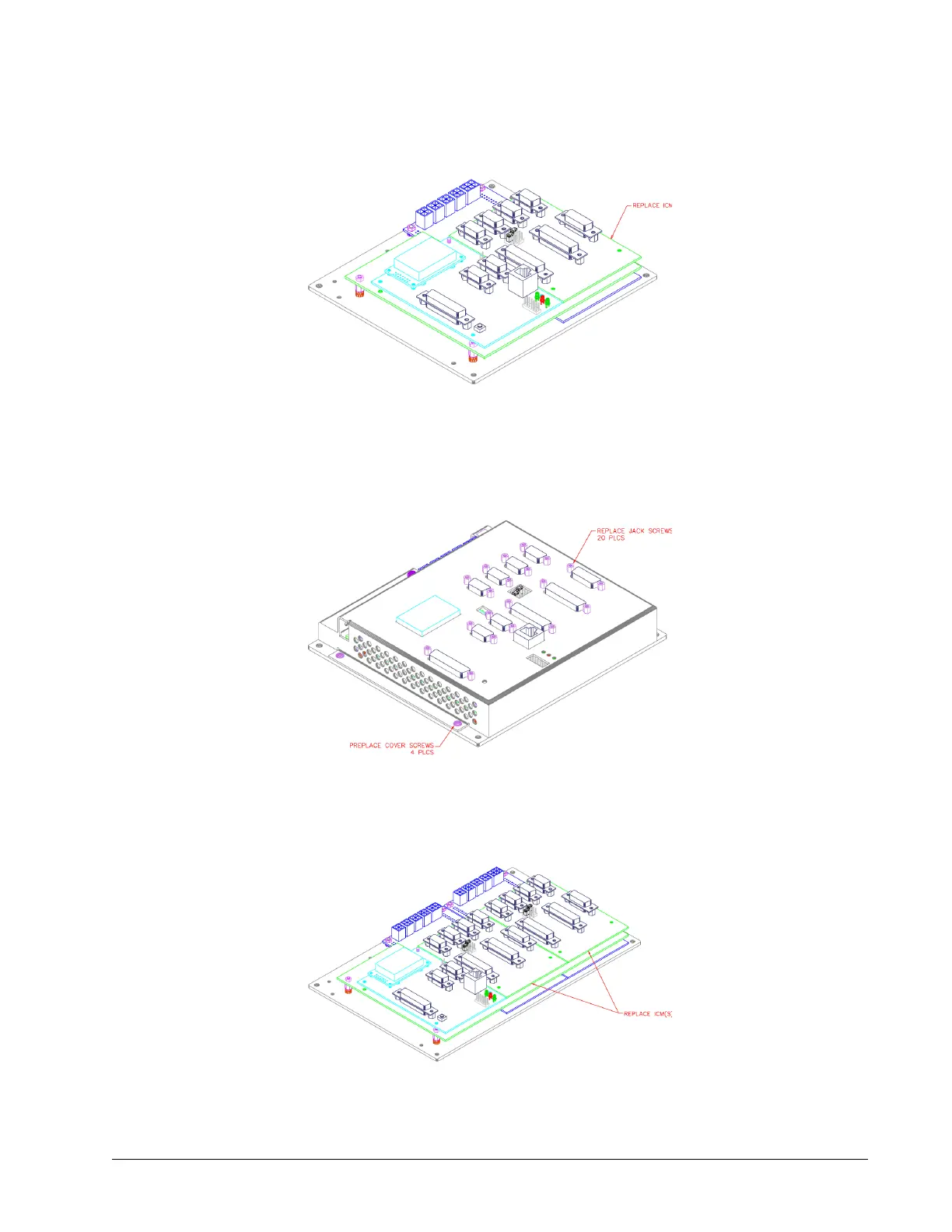

DMC-4040 (Steps 4 and 5)

Step 4: Replace ICM

Step 5: Replace Cover

Notes:

1. Cover Installation:

A. Install Jack Screws (20 Places)

B. Install #6-32x3/16” Button Head Cover Screws(4 Places)

DMC-4080 (Steps 4 and 5)

Step 4: Replace ICM(s)

Appendices ▫ 204 DMC-40x0 User Manual
