Galil Motion Control DMC-40 0 Series - Page 43

Chapter 3 Connecting Hardware ▫ 38 DMC-40x0 User Manual

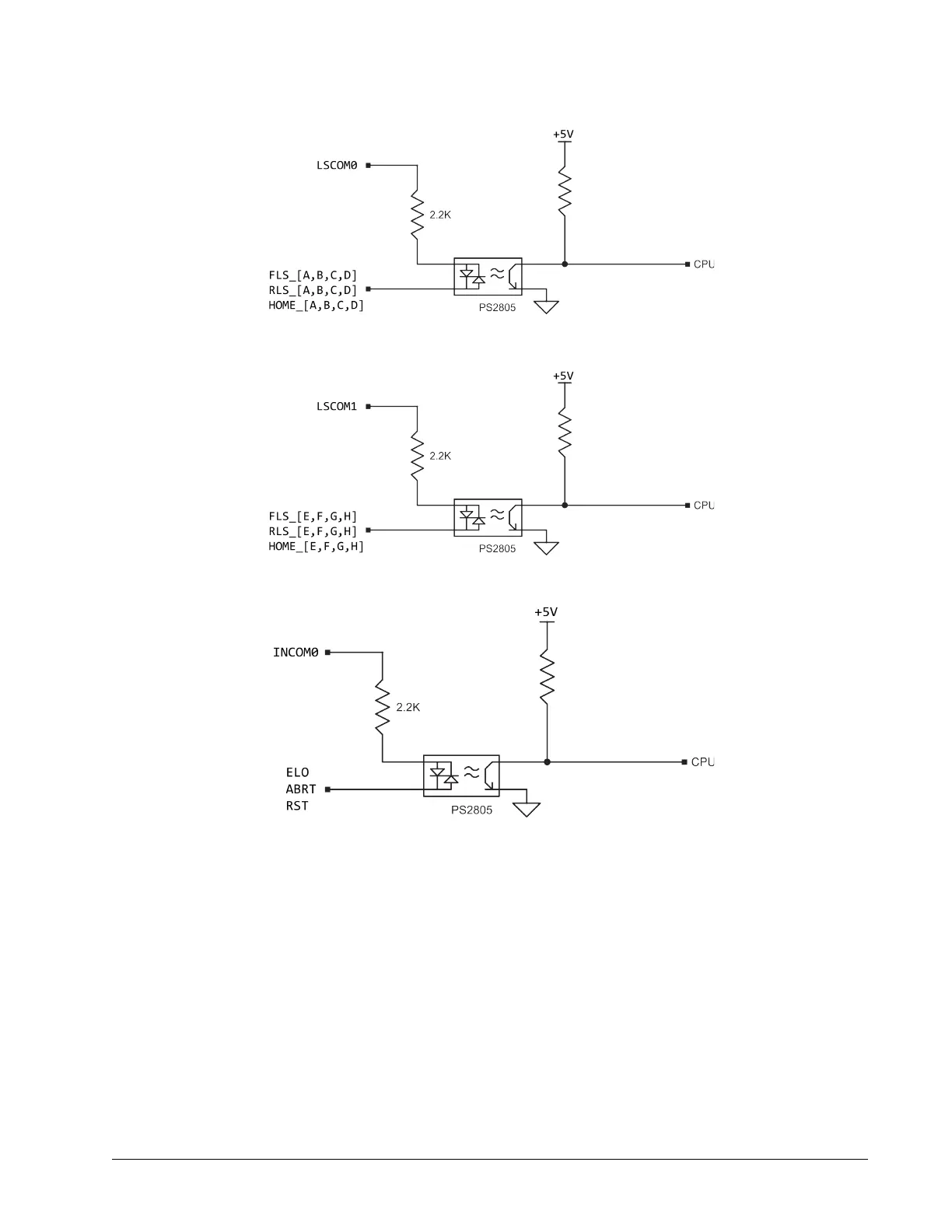

Figure 3.3: Limit Switch Inputs for Axes A-D
Figure 3.4: Limit Switch Inputs for Axes E-H
Figure 3.5: ELO, Abort and Reset Inputs
