PR,,80000 Raise C
BGC
AMC
VP -37600,-16000 Return AB to start
VE
VS 200000
BGS
AMS
EN

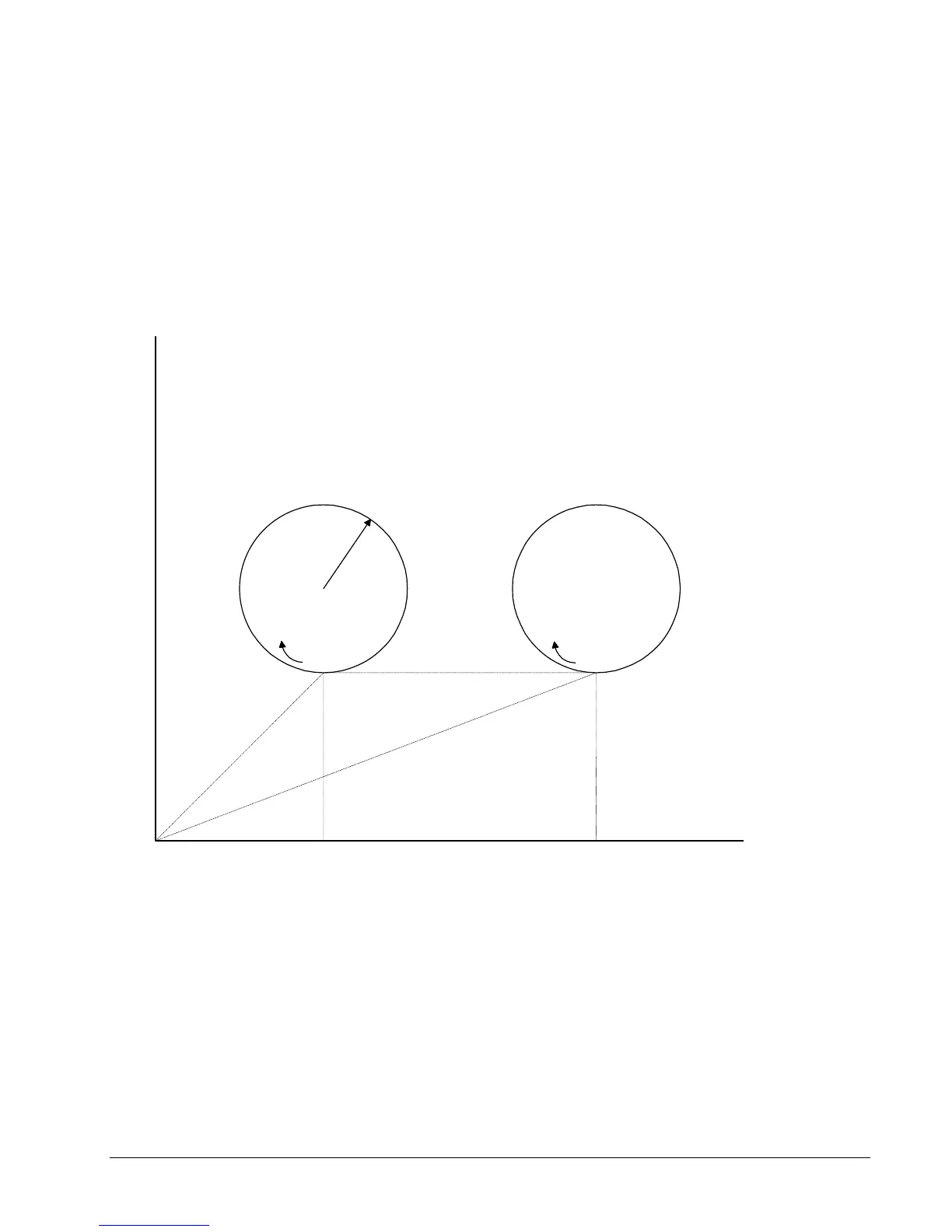

R=2
B C
A
0 4 9.3
4
B
A
Figure 7.2 - Motor Velocity and the Associated Input/Output signals
Speed Control by Joystick
The speed of a motor is controlled by a joystick. The joystick produces a signal in the range between -
10V and +10V. The objective is to drive the motor at a speed proportional to the input voltage.
Assume that a full voltage of 10 volts must produce a motor speed of 3000 rpm with an encoder
resolution of 1000 lines or 4000 count/rev. This speed equals:
3000 rpm = 50 rev/sec = 200000 count/sec
