Galil DMC-2X00 - ICM-2908 Drawing

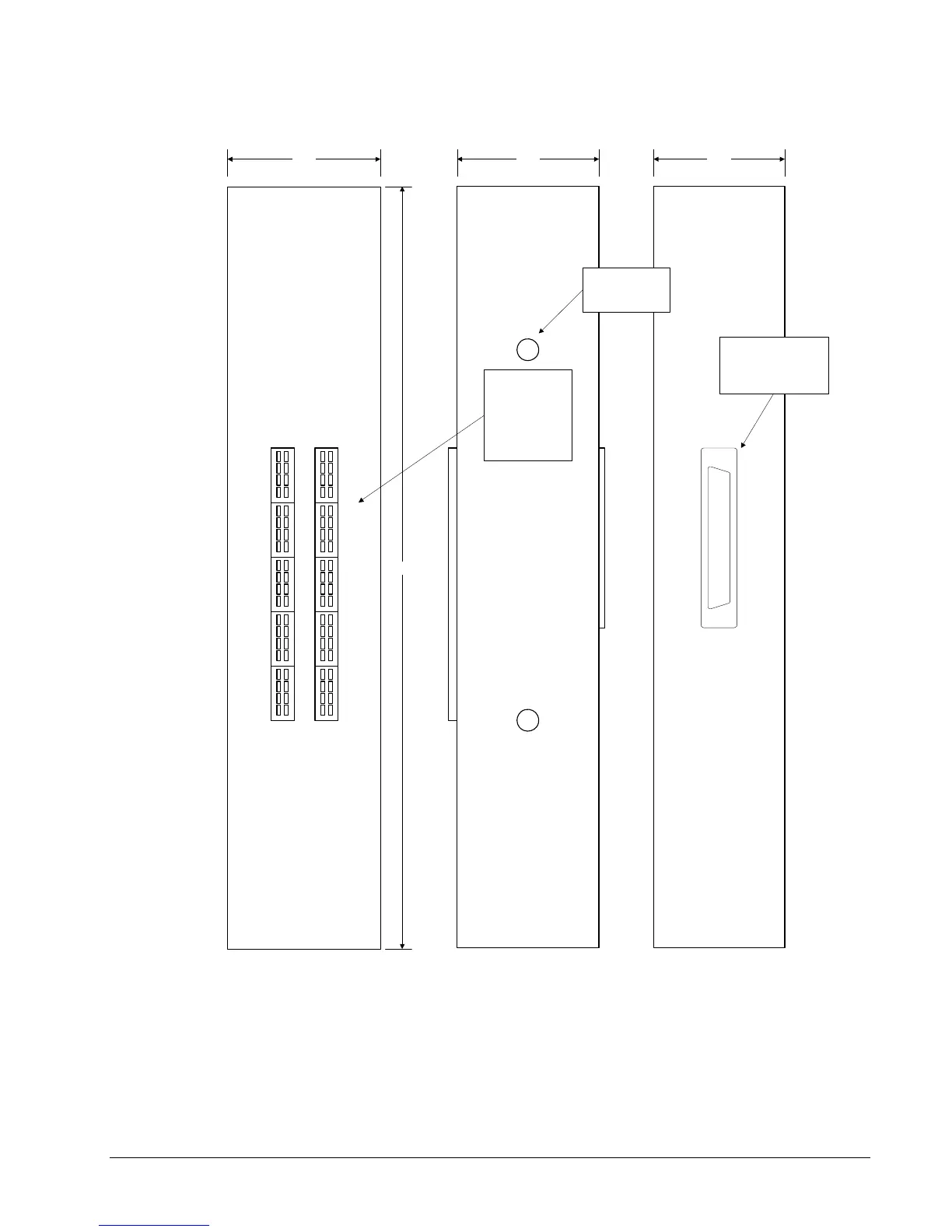

ICM-2908 Drawing:
ICM-2908
2.40"
12.25"
Front Side Back
2.75" 2.40"
Holes for
mounting to DMC-
2000 (2 holes)
Solderless
connections -
insert screwdriver
to open contacts
for insertion/
removal of lead
wires
+AAY
-AAY
+ABY
-ABY
+AAW
-AAW
+ABW
-ABW
GND
GND
GND
GND
+AAF
-AAF
+ABF
-ABF
+AAH
-AAH
+ABH
-ABH
+AAX
-AAX
+ABX
-ABX
+AAZ
-AAZ
+ABZ
-ABZ
+5V
+5V
+5V
+5V
+AAE
-AAE
+ABE
-ABE
+AAG
-AAG
+ABG
-ABG
36 pin high density
connector
AMP #2-178238-5
3M #10236-55-G3VC
Figure A-2
DMC-2X00 Appendices y 213
