Setting the Bow Offset
For forward view Panoptix transducers, you can enter a bow offset to compensate the forward distance
readings for the transducer installation location. This allows you to view the forward distance from the bow
instead of the transducer installation location.
This feature applies to Panoptix transducers in the FrontVü, LiveVü Forward, and RealVü 3D Forward sonar
views.

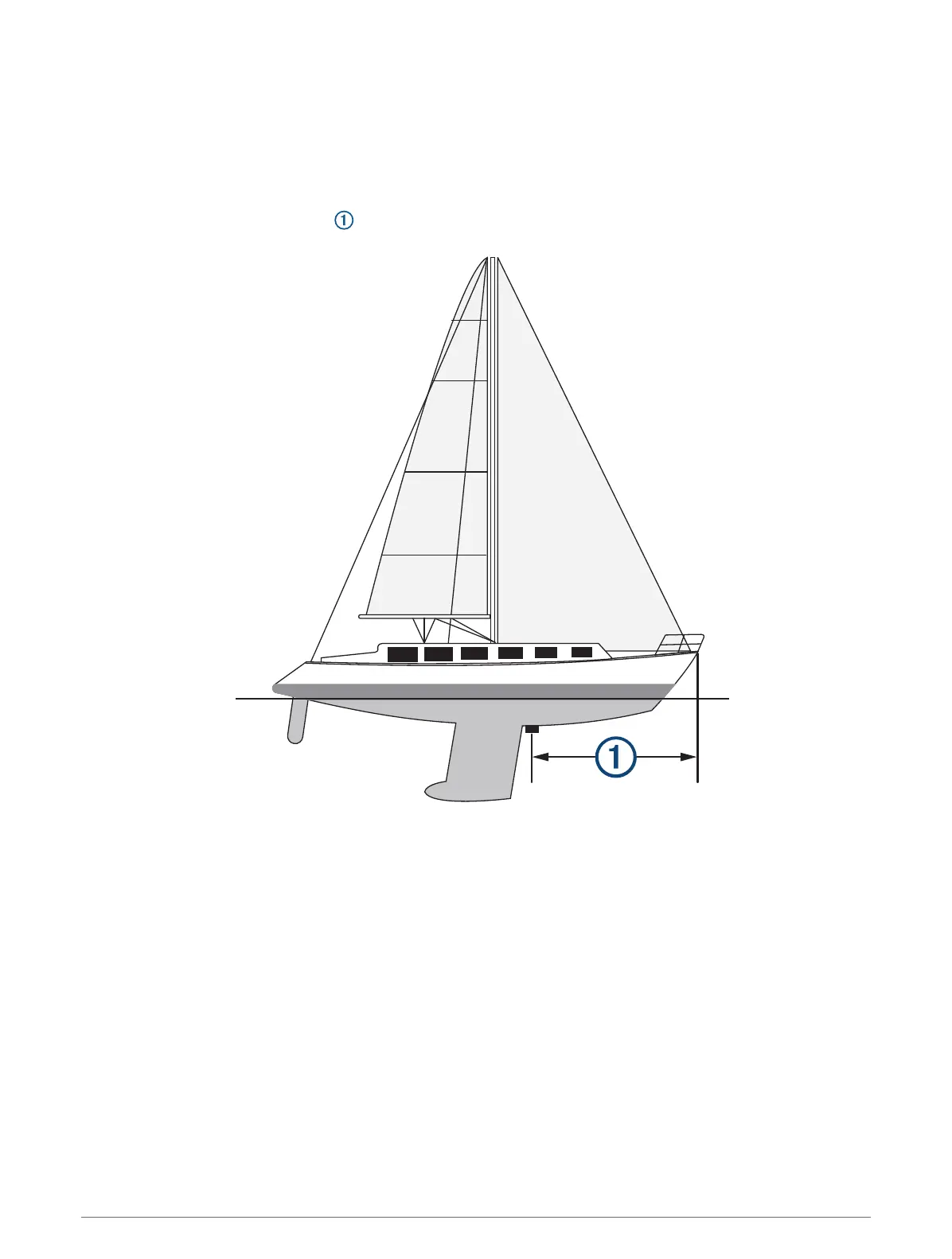

1 Measure the horizontal distance from the transducer to the bow.
2 From an applicable sonar view, select Options > Sonar Setup > Installation > Bow Offset.
3 Enter the distance measured, and select Done.
On the applicable sonar view, the forward range shifts by the distance you entered.
