N. Type 2 outlet.
2
O. Front cover lock.
P. Indication light.
Q. Optional ID-label placement after installation.
R. Label, load interface type.
S. Sealing label.
T. RFID reader area.

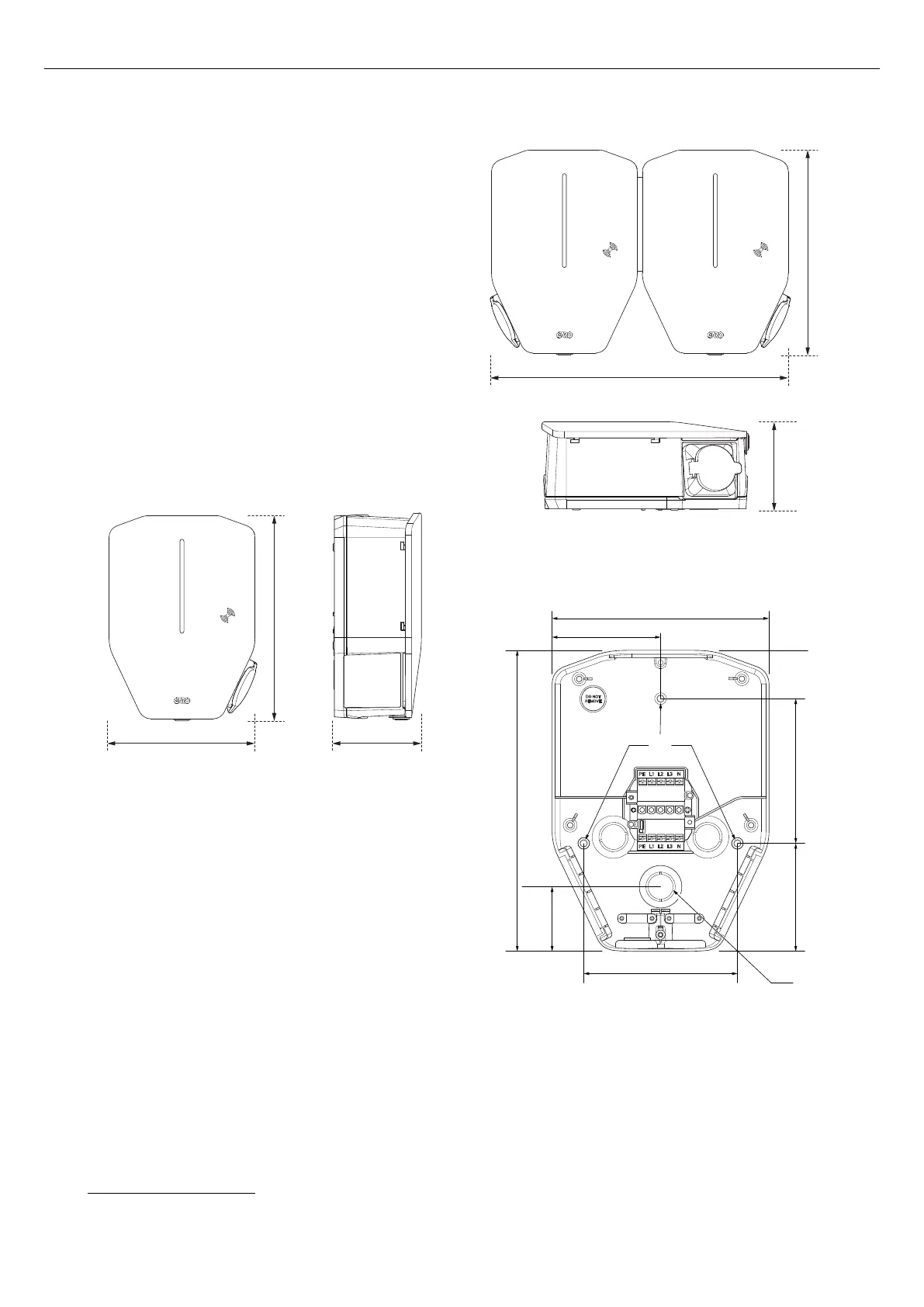

3.5 DIMENSIONS
Dimensions for bracket hole positions:
3.5.1 SINGLE VERSION INSTALLATION BRACKET
(IB)
Bracket and hole dimensions:
240 mm150 mm
340 mm
480 mm
150 mm
340 mm
240
160
119
174
71
333
Ø35
Knockout
Ø6
120
16
Version: 1.3
Product overview
2. The fixed cable variant of the charging unit has the cable parking placed here.
