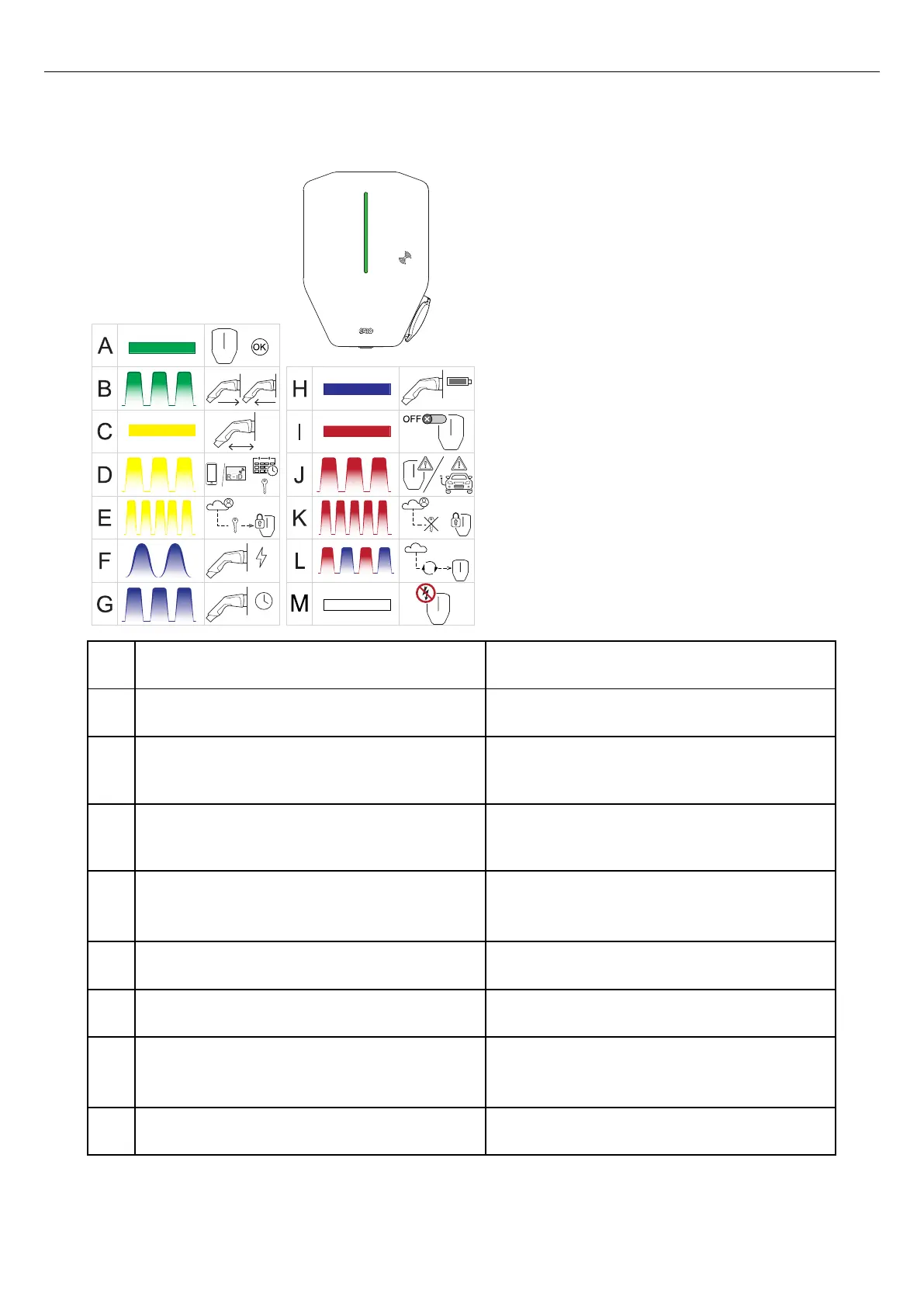

5.1.1 INDICATION LIGHT
When Meaning
A Green solid light. The charging station is available for charging.
B Green slow blinking light, 1 Hz. The charging station waits for either a connection to
or a disconnection of an EV.
C Yellow solid light. The Type 2 contact is not in correct position. Try to
reconnect.
D Yellow slow blinking light, 1 Hz. The charging station is reserved and/or awaits
authorization by the EV Driver.
E Yellow fast blinking light, 10 Hz. The authorization of the EV driver is checked.
F Blue pulsating light, 1 Hz. The EV charges.
G Blue slow blinking light. The charging awaits the time schedule to start the
charging process.
H Blue solid light. The charging process is finished by the EV.
