4.8 TO ENSURE THE NECESSARY
INSTALLATION MATERIAL
•

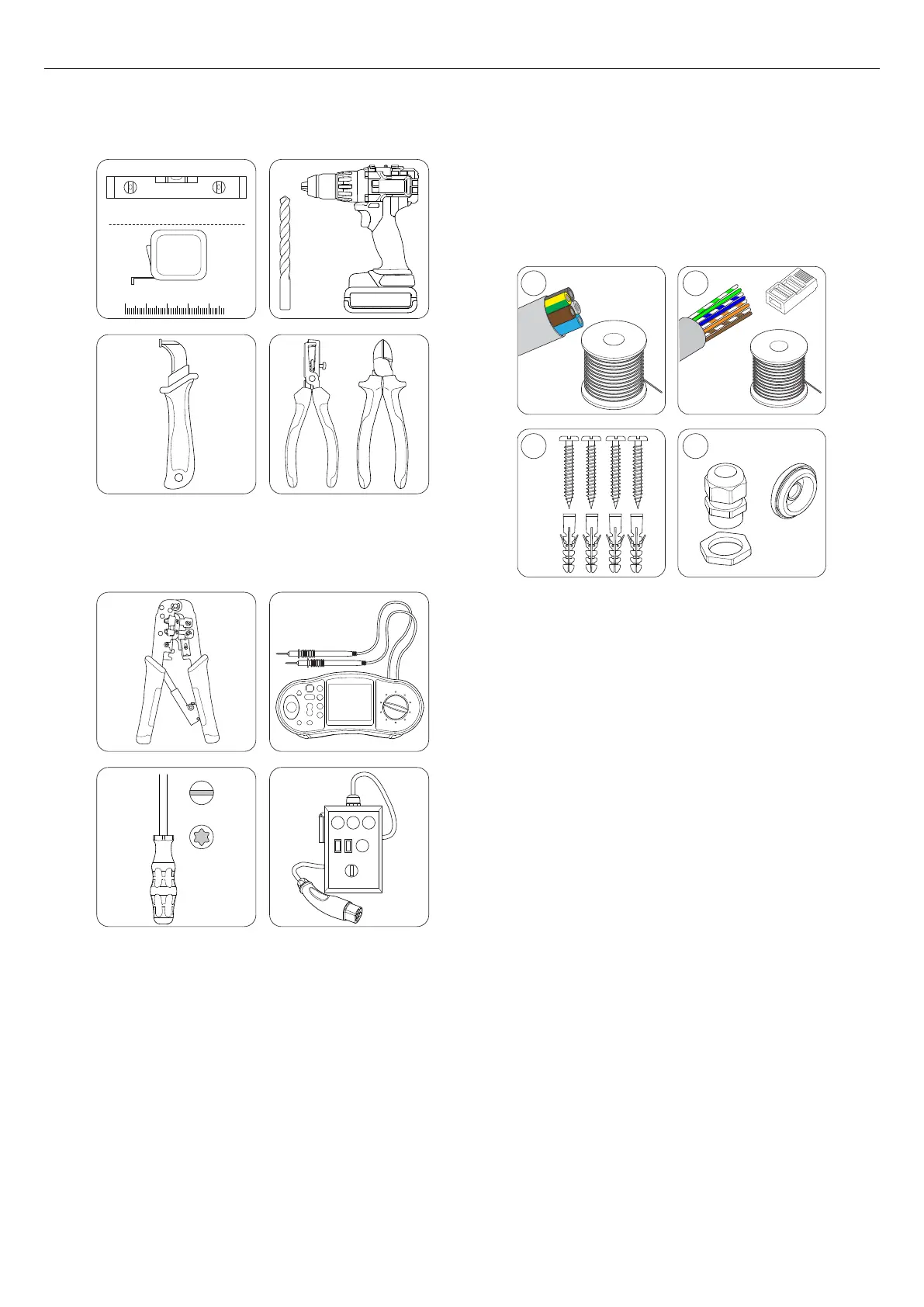

Make sure that the necessary installation materials
are available.
A. Power cable.
B. Ethernet cable with suitable RJ45 plug, if ethernet is
used.
C. Screws and plugs that are suitable for the wall
material, at a maximum diameter of 6 mm and a
maximum screw head diameter of 14 mm.
D. Cable grommets (M32) that is suitable for the entry
point of the power cable. The product is delivered
with a cable grommet (M32). For cables that enter
from the top or bottom of the charging station, use a
IP54 cable grommet with an integrated cable strain
relief function as a minimum requirement. If mounted
at the back, use the skin.
1234
TX20
A B
C D
