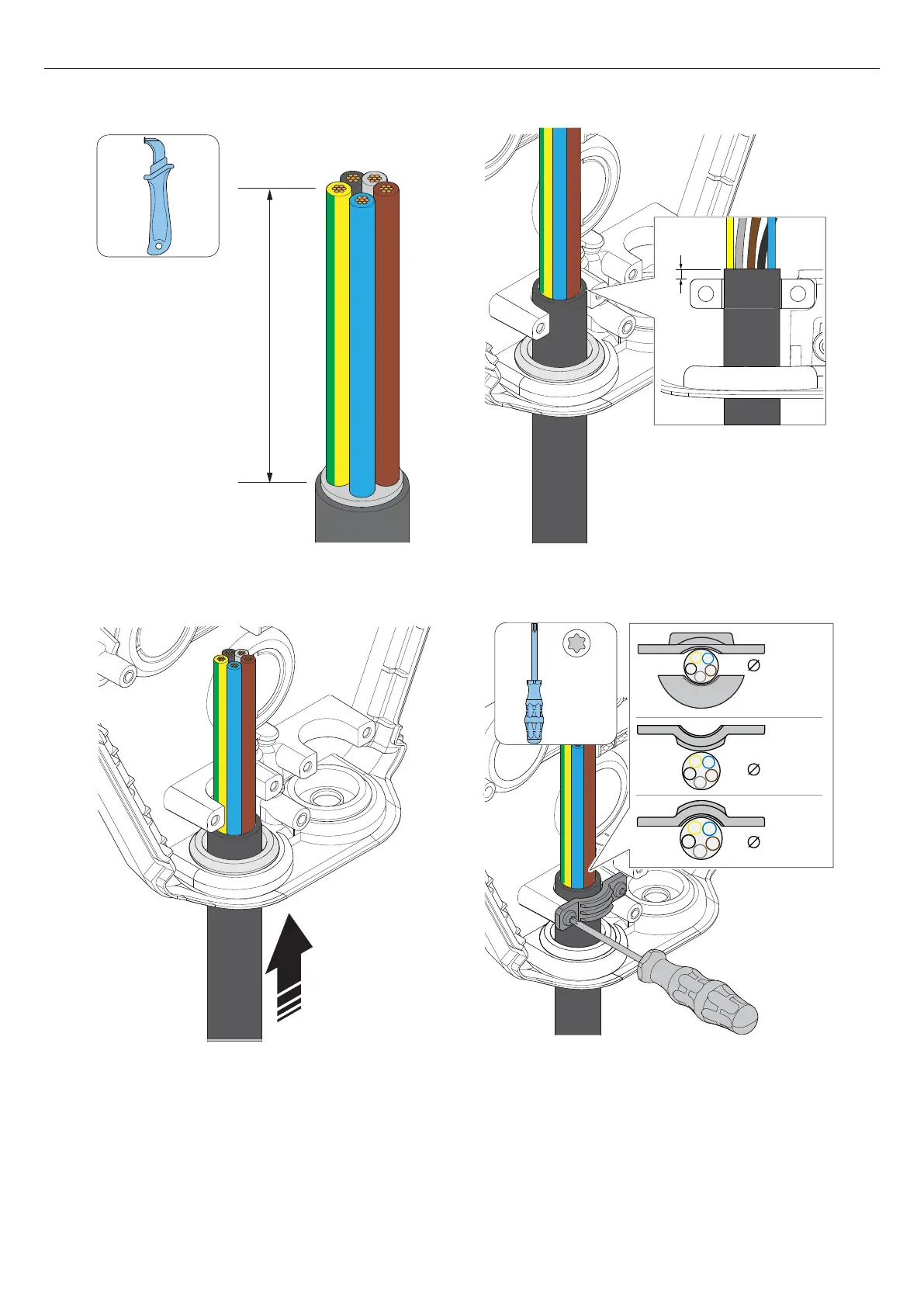

2. Thread the power cable through the grommet in the
power cable inlet hole.
3. Make sure that the cable sheet reaches 2 mm above
the bracket for the cable strain relief.
4. Install the cable strain relief to fixate the power
cable.
NOTE
The cable strain relief can be configured in 3 different
ways. Choose the configuration that is suitable for the
diameter of the power cable.
5. Cut the wires to the exact length for the installation.
~ 500 mm
2 mm
12 - 17 mm
15 - 20 mm
18 - 24 mm
TX20
