GARO ENTITY PRO - Page 47

Functional grounding of CT's
LN
M-Bus Energy Meter
M-Bus +
M-Bus -
Modbus Energy Meter
+-
+ B - A
Modbus B/Z +
Modbus A/Y -
Functional grounding
Relay controlled
auxillary unit
max 250V AC, 30V DC
max, 10A
+
IN
Wi-Fi antenna
Ethernet
Connect to charging station,
other load interface
or network switch.
Modbus termination
Indication light
CT1
CT2
CT3
Ethernet
Connect to charging station,
other load interface
or network switch.
CT1-3: 0-5 A output
FUNCTIONAL
BUTTON

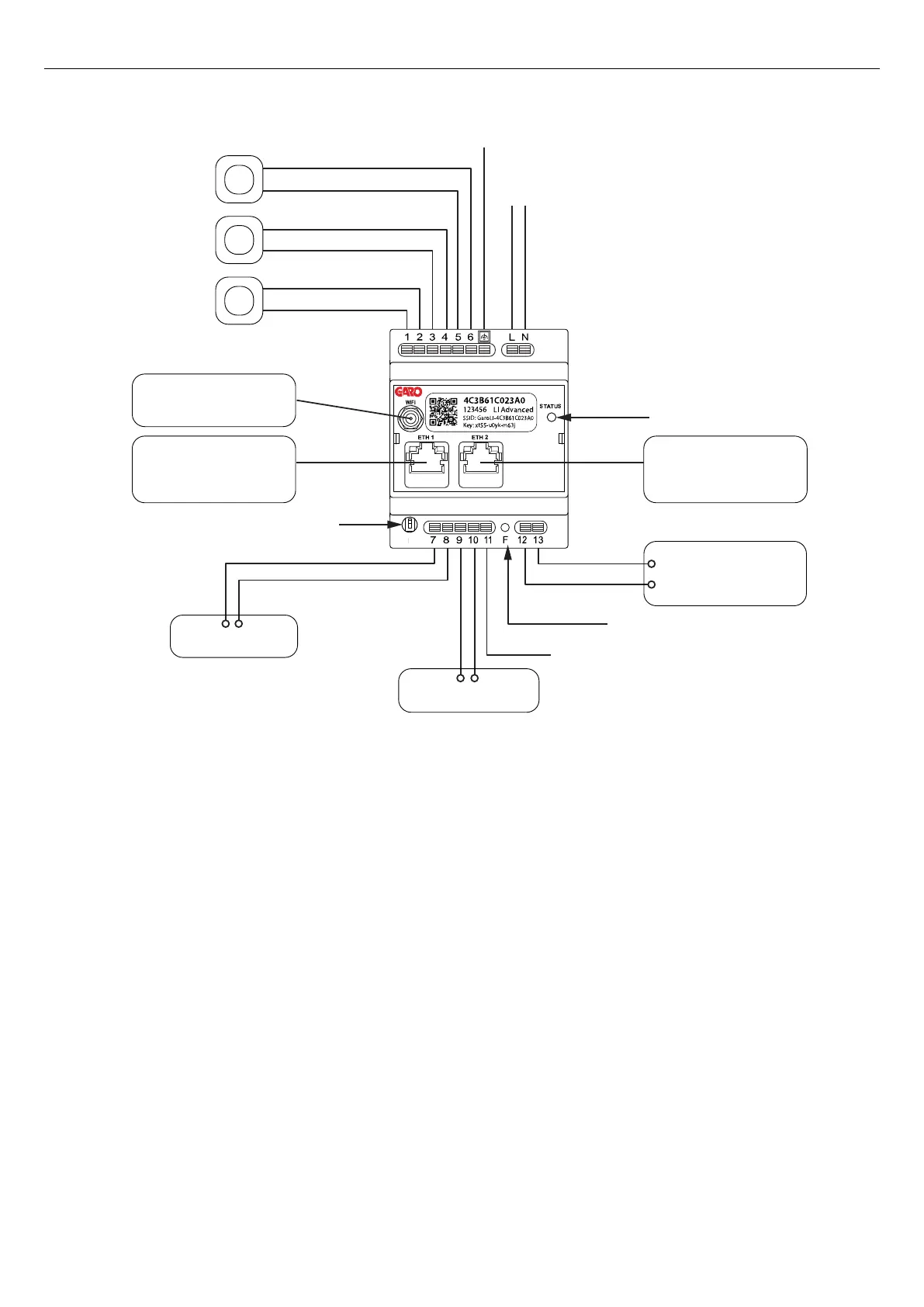

GARO Entity Balance Advanced
CT2-
CT1-
CT2+
CT1+
CT3-
CT3+
Version: 1.3 47
Installation
