TUNING THE CHASSIS 10
29

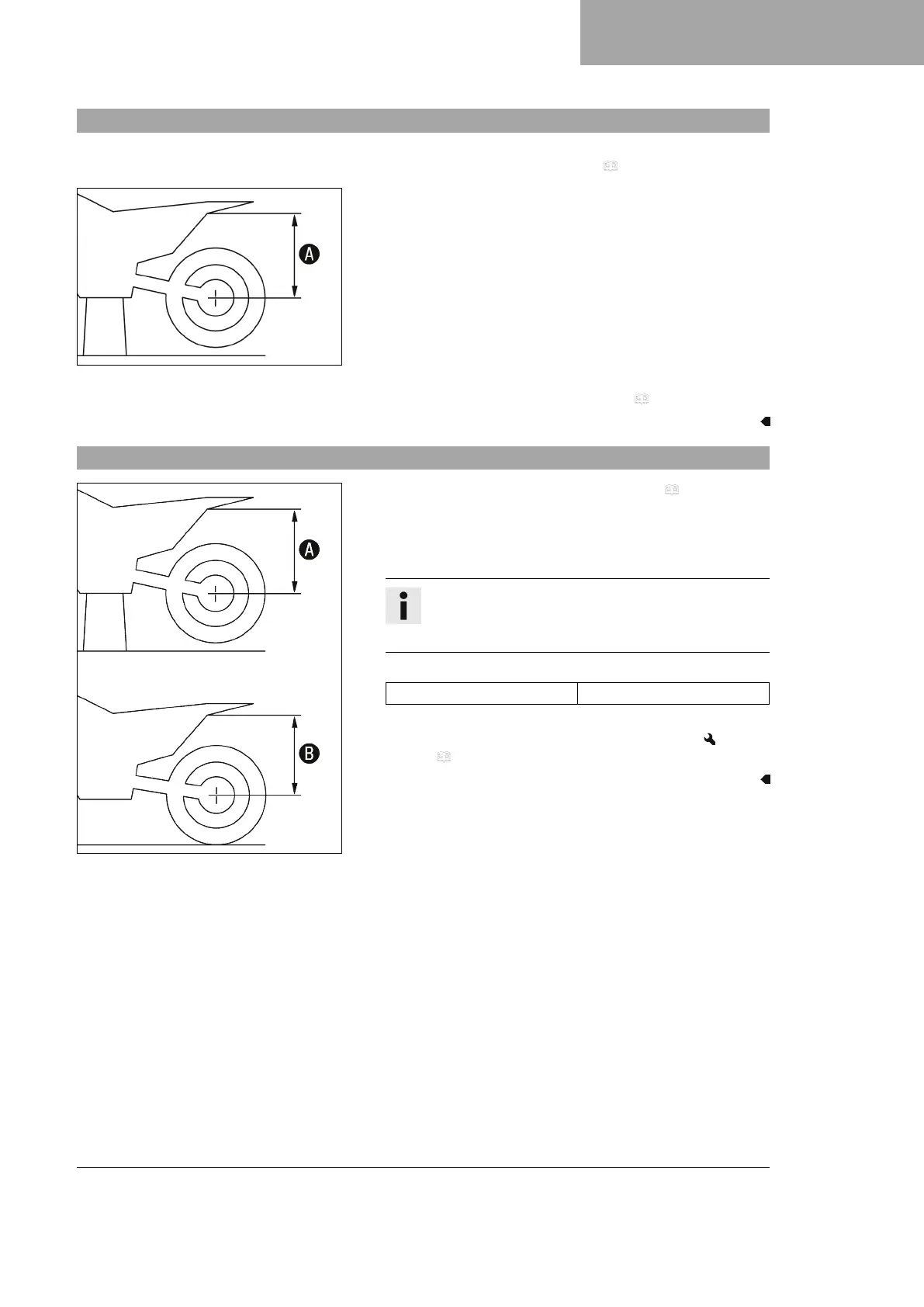

10.7 Measuring the dimension of the rear wheel unloaded
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 37)
400988-10
Main work
– Measure the vertical distance between the rear axle and a fixed
point, such as a marking on the side cover.
–
Note the value as dimension
A
.
Finishing work
–
Remove the motorcycle from the lift stand. ( p. 37)
10.8 Checking the static sag of the shock absorber
400989-10
–
Measure dimension
A
of rear wheel unloaded. ( p. 29)
– Hold the motorcycle upright with aid of an assistant.
– Measure the distance between rear axle and fixed point again.
–
Note the value as dimension
B
.
Info
The static sag is the difference between measurements
A
and
B
.
– Check the static sag.
Static sag 12 mm (0.47 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber.
( p. 30)
