TUNING THE CHASSIS 10
35
C00249-10
–

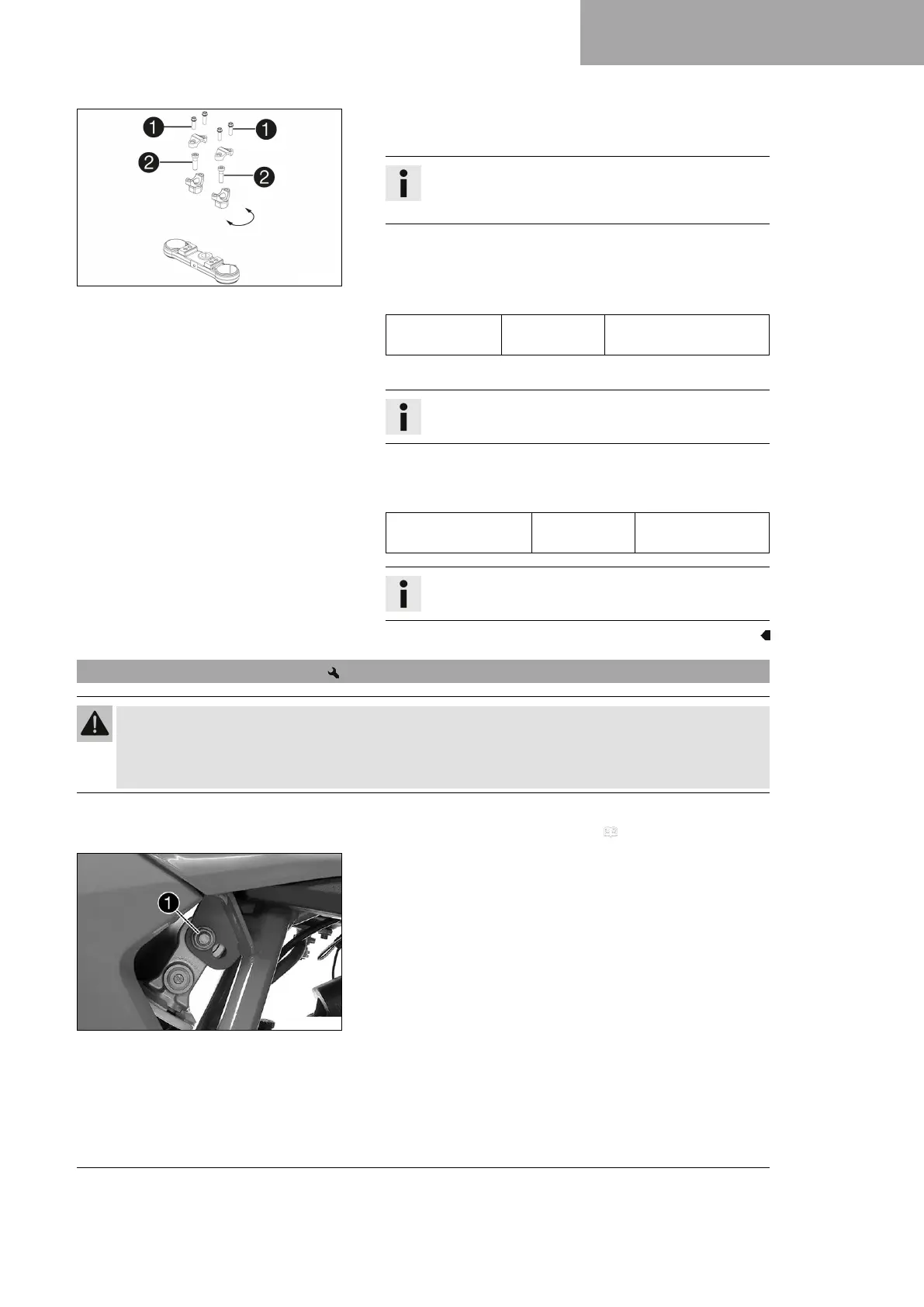

Remove screws
1
. Take off the handlebar clamps. Remove the
handlebar and lay it to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
2
. Take off handlebar supports.
– Place handlebar supports in required position. Mount and tighten
screws
2
.
Guideline
Screw, handlebar
support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
–
Position the handlebar clamps. Mount screws
1
and tighten
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Info
Make sure the installed gaps are even.
10.17 Adjusting the seat height
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteristic.
– Make sure your child rides slowly to start with after making adjustments in order that he or she can assess the
new handling characteristic.
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 37)
F02973-10
Main work
–
Remove nut
1
.
