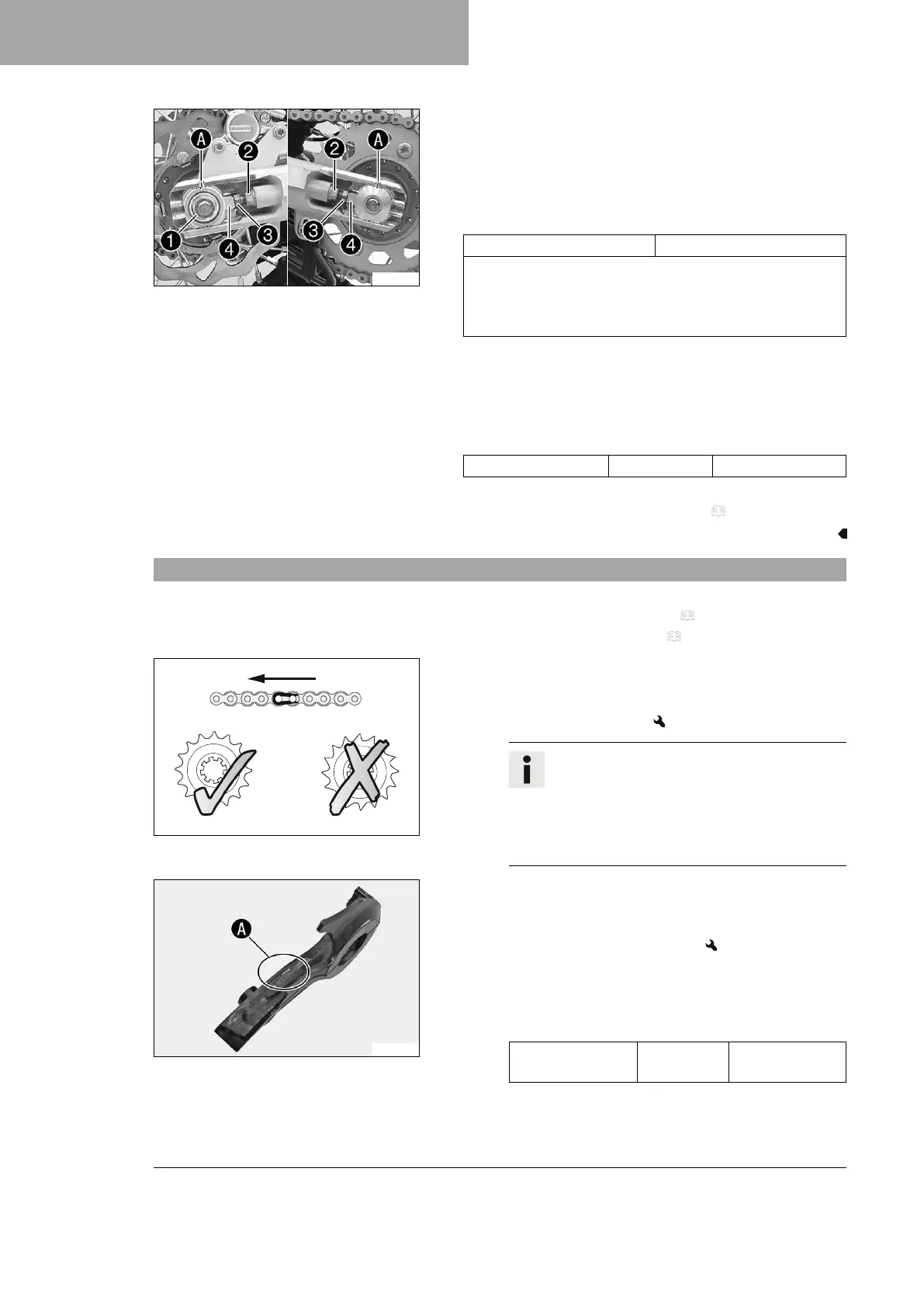

11 SERVICE WORK ON THE CHASSIS
56
F02198-10
Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–
Adjust the chain tension by turning adjusting screws
3
left and
right.
Guideline
Chain tension 5 … 8 mm (0.2 … 0.31 in)
Turn the adjusting screws
3
on the left and right so that the
markings on the left and right chain adjusters
4
are in the same
position relative to the reference marks
A
. The rear wheel is
then correctly aligned.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on adjusting
screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spindle M12x1 40 Nm (29.5 lbf ft)
Finishing work
–
Remove the motorcycle from the lift stand. ( p. 37)
11.36 Checking the chain, rear sprocket, engine sprocket, and chain guide
Preparatory work
–
Raise the motorcycle with a lift stand. ( p. 37)
–
Remove the engine sprocket cover. ( p. 53)
400227-01
Main work
– Check the chain, rear sprocket, and engine sprocket for wear.
» If the chain, rear sprocket or motor sprocket is worn:
– Change the drivetrain kit.
Info
The engine sprocket, the rear sprocket, and the
chain should always be replaced together.
When fitting the chain joint, always make sure that
the closed side of the joint faces forward (riding
direction).
100896-10
– Check the engine sprocket cover for wear.
» If the engine sprocket cover is worn through in the marked
area
A
:
– Change the engine sprocket cover.
– Check the engine sprocket cover for tightness.
» If the engine sprocket cover is loose:
– Tighten the engine sprocket cover.
Guideline
Screw, engine
sprocket cover
M6 10 Nm (7.4 lbf ft)
