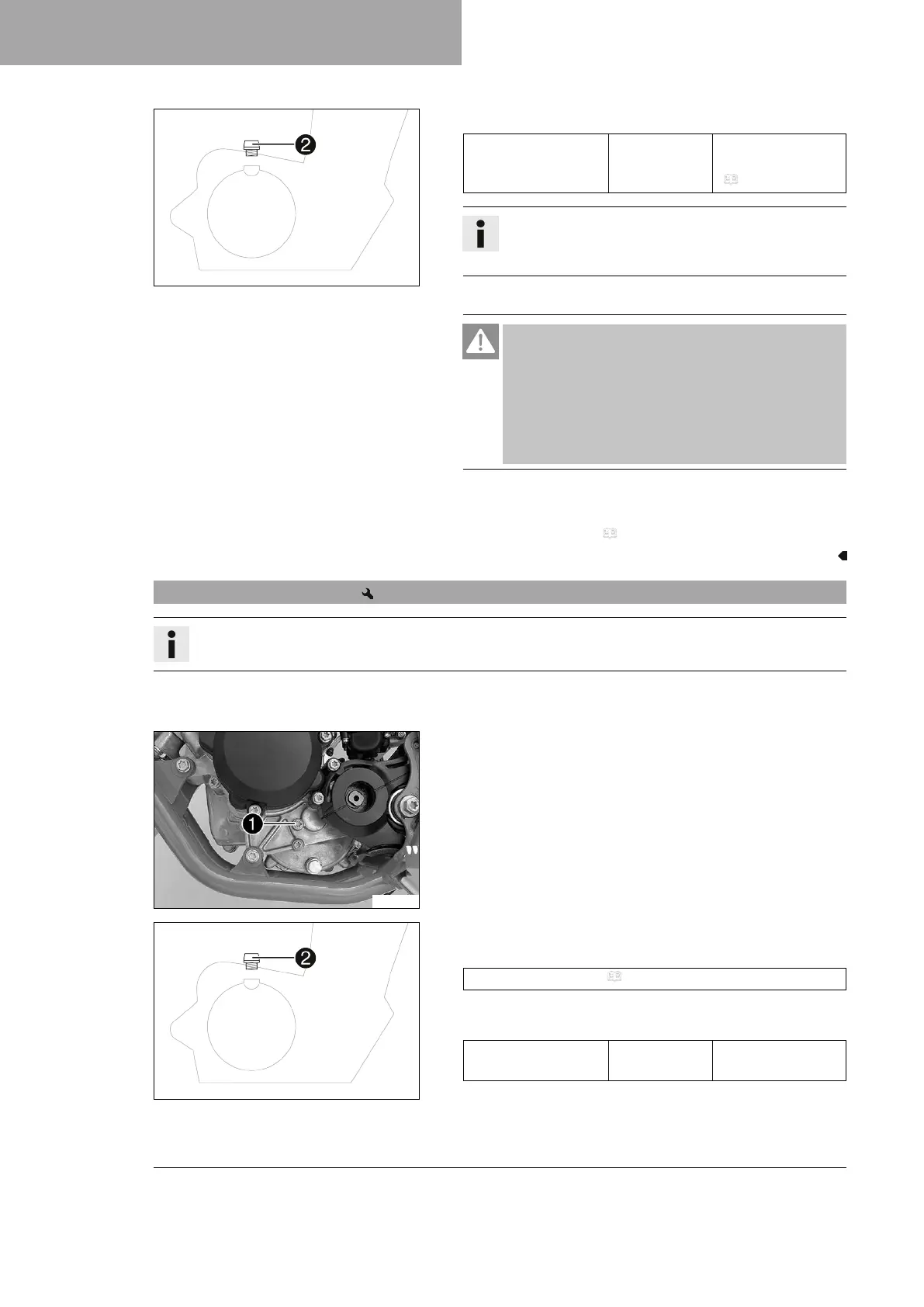

16 SERVICE WORK ON THE ENGINE
92
401955-11
–
Remove filler plug
2
with the O-ring, and fill up with gear oil.
Gear oil 0.20 l (0.21 qt.) Gear oil
(ATF Dexron 3)
( p. 109)
Info
Too little gear oil or poor-quality gear oil results in prema-
ture wear to the transmission.
–
Mount and tighten filler plug
2
with the O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling
them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation when
running the engine.
– Use effective exhaust extraction when starting or run-
ning the engine in an enclosed space.
– Start the engine and check for leaks.
Finishing work
–
Check the gear oil level. ( p. 91)
16.3 Adding the gear oil
Info
Too little gear oil or poor-quality gear oil results in premature wear to the transmission.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
F03034-10
Main work
–
Remove screw
1
.
401955-11
–
Remove filler plug
2
with the O-ring.
– Add gear oil until it flows out of the hole of the gear oil level plug.
Gear oil (ATF Dexron 3) ( p. 109)
–
Mount and tighten screw
1
.
Guideline
Screw, gear oil level
monitoring
M6 6 Nm (4.4 lbf ft)
–
Mount and tighten filler plug
2
with the O-ring.
