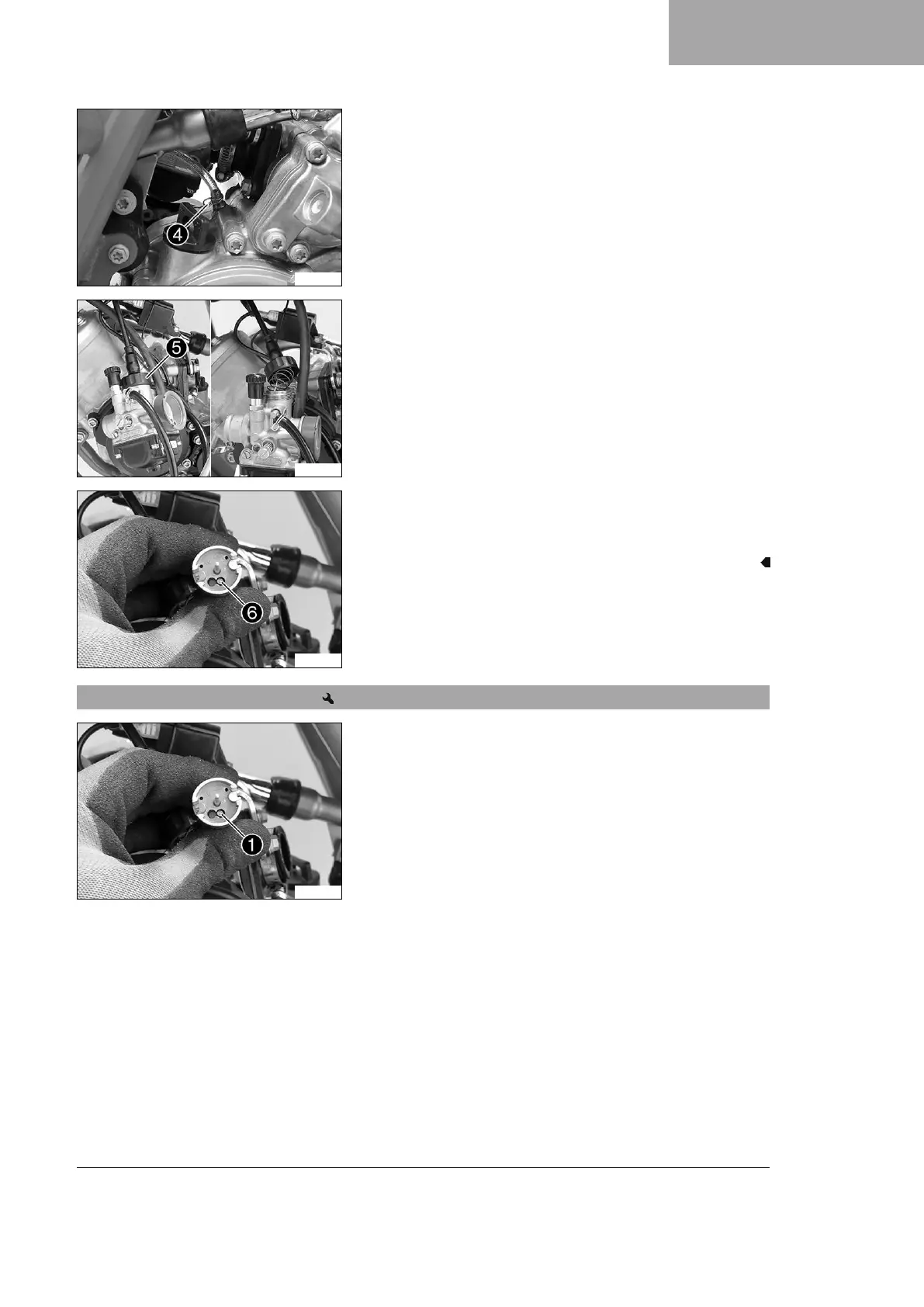

CARBURETOR 17
95
F03012-10
–
Push back hose clamp
4
and pull off the vent hose.
– Pull the carburetor out of the intake flange.
– Pull the carburetor forward out of the inlet sleeve.
F03013-10
–
Remove throttle slide cover
5
.
– Pull the throttle slide out of the carburetor.
– Drain the remaining fuel.
F03016-11
– Pull back the spring retainer and throttle slide spring.
–
Detach throttle cable wire
6
.
– Take off the throttle slide.
17.2 Installing the carburetor
F03016-10
Main work
–
Attach throttle cable wire
1
.
– Position the spring retainer and throttle slide spring.
