17 CARBURETOR
96
F03015-10

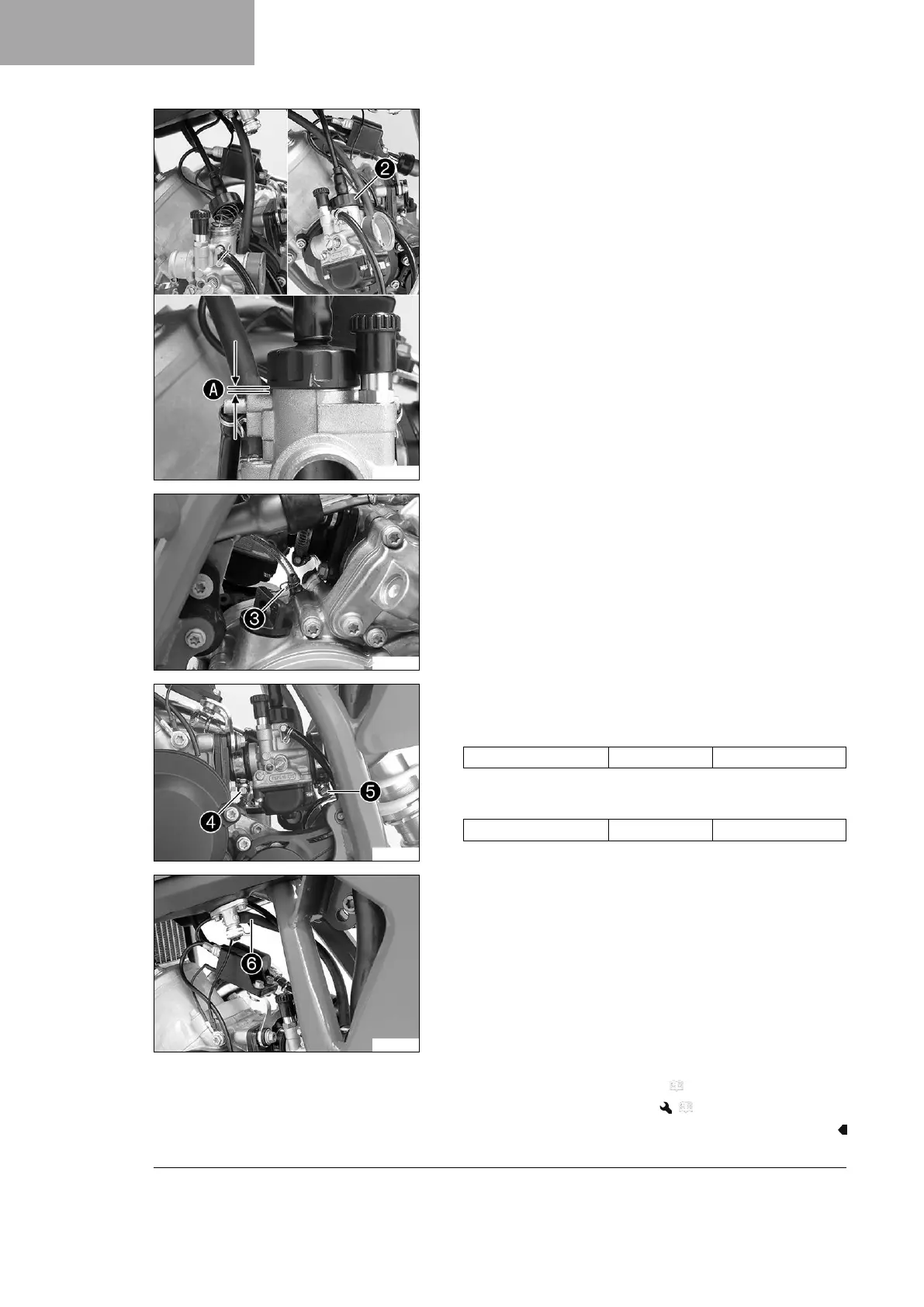

– Position the throttle slide and throttle slide cover.
–
Tighten throttle slide cover
2
hand-tight.
– Measure the distance between the carburetor housing and the
throttle slide cover.
»
Distance
A
: ≤ 3 mm (≤ 0.12 in)
If the specified value is not reached:
– Screw on the throttle slide cover correctly.
F03012-12
– Mount the carburetor.
–
Mount the engine breather hose and position clamp
3
.
F03011-11
– Mount the inlet sleeve.
–
Position and tighten hose clip
4
.
Guideline
Hose clip, carburetor - 2.8 Nm (2.07 lbf ft)
–
Position and tighten hose clip
5
.
Guideline
Hose clip, carburetor - 2.8 Nm (2.07 lbf ft)
F02979-12
–
Mount fuel hose
6
.
Finishing work
–
Check the play in the throttle cable. ( p. 86)
–
Carburetor – adjust the idle speed. ( p. 87)
