10

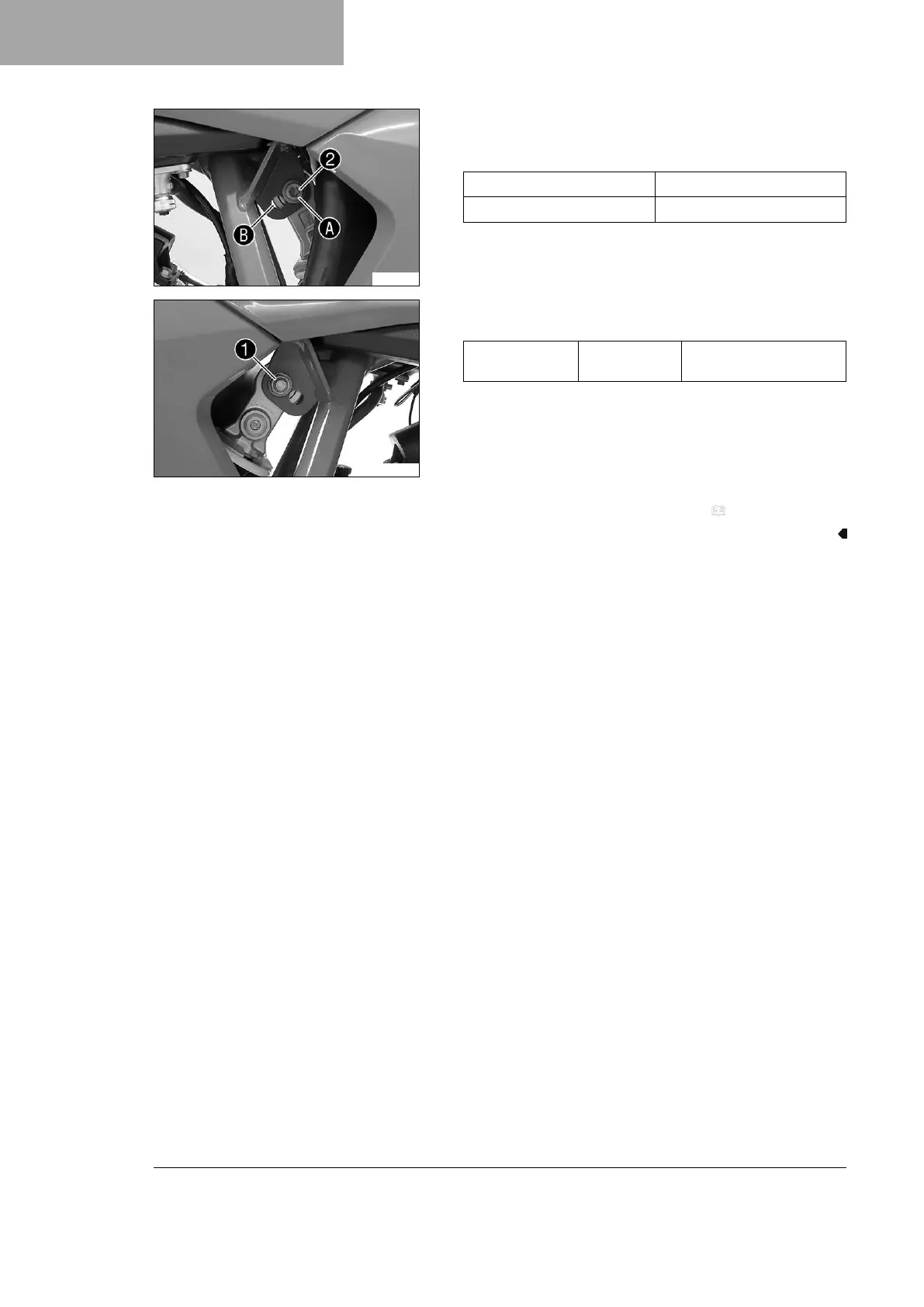

TUNING
THE
CHASSIS
36
F02974-10
–
Hold
the
rear
wheel
with
the
link
fork
and
remove
screw
2
.
–
Position
the
shock
absorber
according
to
the
required
seat
height.
Guideline
Low
seat
position
(standard)
A
High
seat
position
B
–
Position
screw
2
.
F02973-10
–
Mount
nut
1
and
tighten
the
fitting.
Guideline
Screw,
top
shock
absorber
M10
45
Nm
(33.2
lbf
ft)
Loctite
®
243™
Finishing
work
–
Remove
the
motorcycle
from
the
lift
stand.
(
p.
37)
37
39
