GE Multilin 239 Motor Protection Relay 7-19
7 COMMUNICATIONS 7 COMMUNICATIONS
7
0273 Message Buffer characters 39 and 40 --- --- ASCII F8 N/A
0274 Reserved
0275 Reserved
0276 Reserved
0277 Reserved
0278 Reserved
0279 Reserved
027A Reserved
027B Reserved
027C Reserved
027D Reserved
to ↓
02AF Reserved
02B0 MOTOR
STATISTICS
Motor Max Starting Current 0 to 10000 1 A F1 ----
02B1 Reserved
02B2 Reserved
02B3 Reserved
02B4 Motor Running Time (high) 0.1 x hr F45
02B5 Motor Running Time (low) 0.1 x hr F45
02B6 Reserved
to ↓
0FFF Reserved
Setpoint Values (Holding Registers) Addresses – 1000 to 11EF
1000 PREFERENCES Temp. Display Units (RTD Option) 1---F90 = CELSIUS
1001 Default Message Time 1-51 1
min x 0.1
F1 ** 10 = 1.0 min
1002 Default Message Brightness 0-100 20 % F1 60%
1003 Block Keypad Trip Reset 0-1 1 --- F14 0 = NO
1004 Overload Pickup Display Enable 0-1 1 --- F14 1 = YES
1005 Reserved
1006 Reserved
1007 Reserved
1008 ANALOG
OUTPUT
Analog Output Type (AN Option) 1---F100 = MOTOR LOAD
1009 Analog Output Range (AN Option) 0-2 1 --- F11 0 = 0-1 mA
100A Reserved
100B Reserved
100C Reserved

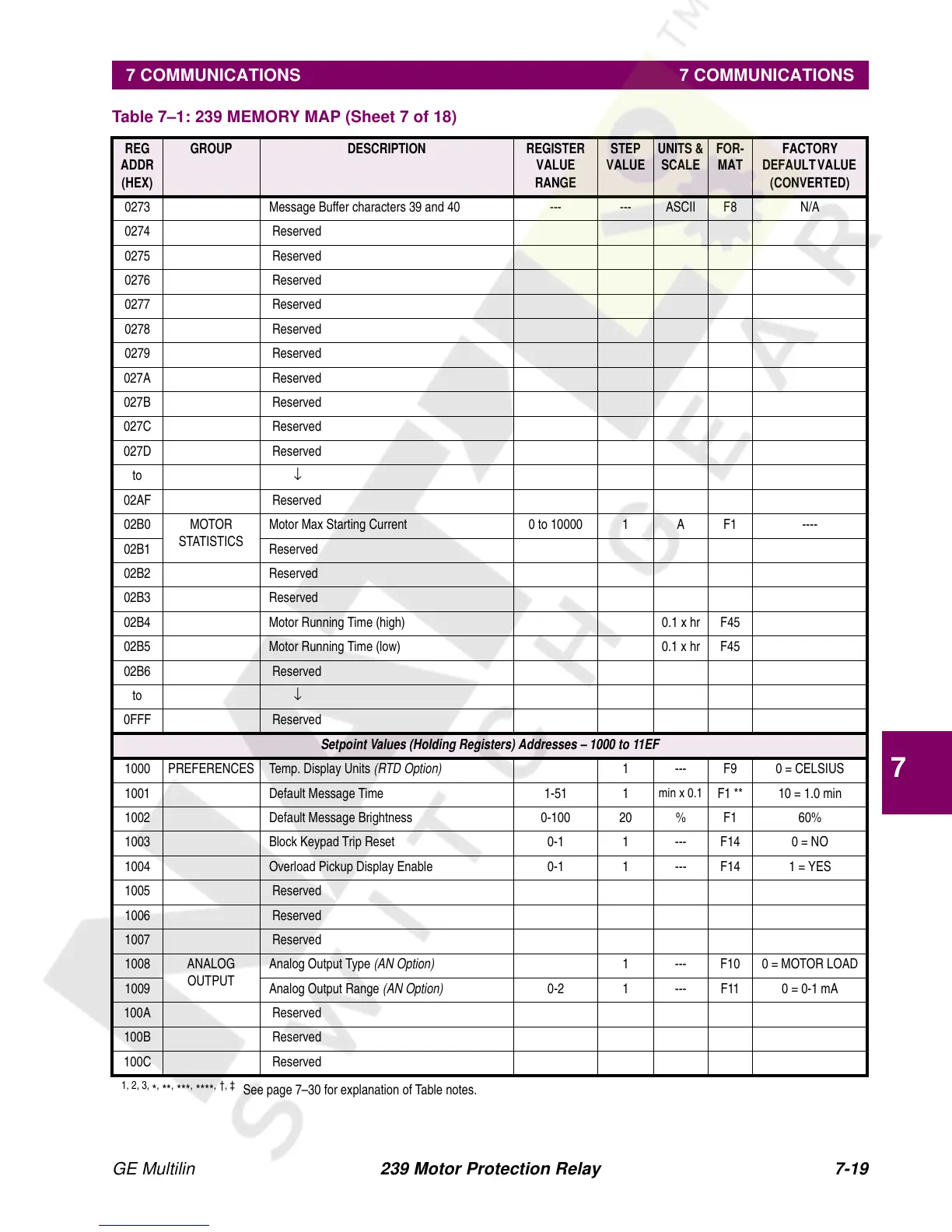

Table 7–1: 239 MEMORY MAP (Sheet 7 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
, †, ‡
See page 7–30 for explanation of Table notes.
