7 COMMUNICATIONS 7 COMMUNICATIONS
7
0250 DEBUG ADC Reference --- --- --- F1 N/A
0251 DATA Thermistor Reading --- --- Ω F1 N/A
0252 Power Loss Fine Time --- --- 10 ms F1 N/A
0253 Power Loss Coarse Time --- --- 0.1 min. F1 N/A
0254 Current key press --- --- --- F7 N/A
0255 Internal Fault Error Code --- --- --- F105 N/A
0256 Phase A Current (fast update) --- --- *** F1 N/A
0257 Phase B Current (fast update) --- --- *** F1 N/A
0258 Phase C Current (fast update) --- --- *** F1 N/A
0259 Ground Current (fast update) --- --- 0.1 x A F1 N/A
025A Calibrated Unscaled RTD 1 value --- --- ADC
counts
F1 N/A
025B RTD Reference --- --- --- F1 N/A
025C Upload Mode Count --- --- --- F1 N/A
025D Reserved
025E Reserved
025F Reserved
0260 Message Buffer characters 1 and 2 --- --- ASCII F8 N/A
0261 Message Buffer characters 3 and 4 --- --- ASCII F8 N/A
0262 Message Buffer characters 5 and 6 --- --- ASCII F8 N/A
0263 Message Buffer characters 7 and 8 --- --- ASCII F8 N/A
0264 Message Buffer characters 9 and 10 --- --- ASCII F8 N/A
0265 Message Buffer characters 11 and 12 --- --- ASCII F8 N/A
0266 Message Buffer characters 13 and 14 --- --- ASCII F8 N/A
0267 Message Buffer characters 15 and 16 --- --- ASCII F8 N/A
0268 Message Buffer characters 17 and 18 --- --- ASCII F8 N/A
0269 Message Buffer characters 19 and 20 --- --- ASCII F8 N/A
026A Message Buffer characters 21 and 22 --- --- ASCII F8 N/A
026B Message Buffer characters 23 and 24 --- --- ASCII F8 N/A
026C Message Buffer characters 25 and 26 --- --- ASCII F8 N/A
026D Message Buffer characters 27 and 28 --- --- ASCII F8 N/A
026E Message Buffer characters 29 and 30 --- --- ASCII F8 N/A
026F Message Buffer characters 31 and 32 --- --- ASCII F8 N/A
0270 Message Buffer characters 33 and 34 --- --- ASCII F8 N/A
0271 Message Buffer characters 35 and 36 --- --- ASCII F8 N/A
0272 Message Buffer characters 37 and 38 --- --- ASCII F8 N/A

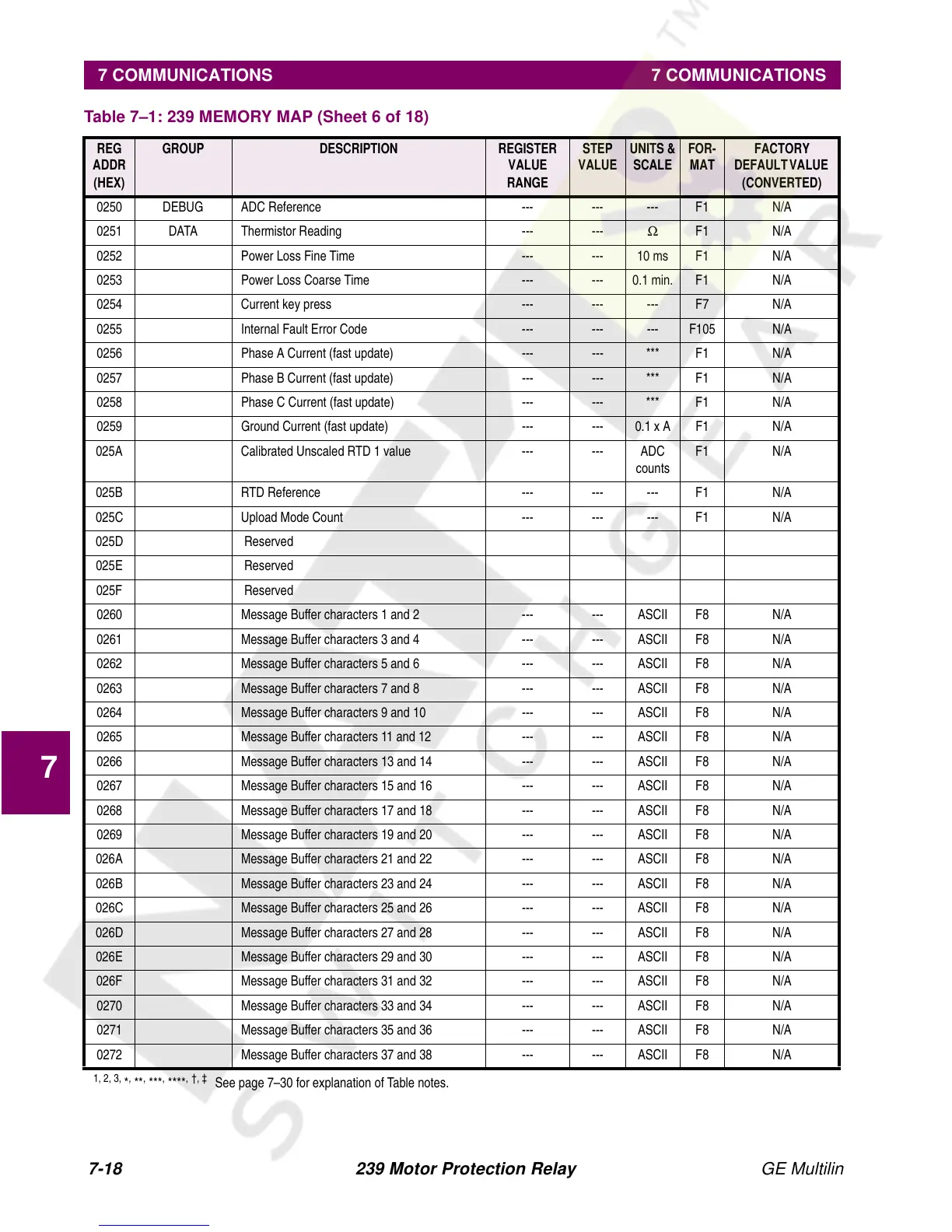

Table 7–1: 239 MEMORY MAP (Sheet 6 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
,
†, ‡
See page 7–30 for explanation of Table notes.
