GE Multilin 239 Motor Protection Relay 7-21
7 COMMUNICATIONS 7 COMMUNICATIONS
7
1031 Reserved
1032 Reserved
1033 Reserved
1034 Reserved
1035 Reserved
1036 Reserved
1037 Reserved
1038 TRIP
RELAY
Trip Operation 0-1 1 --- F16 0 = NON-FAILSAFE
1039 Reserved
103A Reserved
103B Reserved
103C Reserved
103D Reserved
103E Reserved
103F Reserved
1040 ALARM
RELAY
Alarm Operation 0-1 1 --- F16 0 = NON-FAILSAFE
1041 Alarm Activation 0-1 1 --- F17 0 = UNLATCHED
1042 Reserved
1043 Reserved
1044 Reserved
1045 Reserved
1046 Reserved
1047 Reserved
1048 AUXILIARY
RELAY
Auxiliary Operation 0-1 1 --- F16 0 = NON-FAILSAFE
1049 Auxiliary Activation 0-1 1 --- F17 0 = UNLATCHED
104A Auxiliary Function 0-2 1 --- F18 0 = NORMAL
104B Reserved
104C Reserved
104D Reserved
104E Reserved
104F Reserved
1050 PHASE
TIMED O/L
Phase Timed O/L Curve No 1-15 1 --- F1 4
1051 Phase Timed O/L Lockout Time 1-5000 1 min F1 30 min
1052 Overload Level to Calculate Trip Time 101-2000 1
0.01xFLC
F1 200 = 2.00 xFLC
1053 Auto Reset Overload Trips 0-1 1 --- F14 0 = NO
1054 Reserved

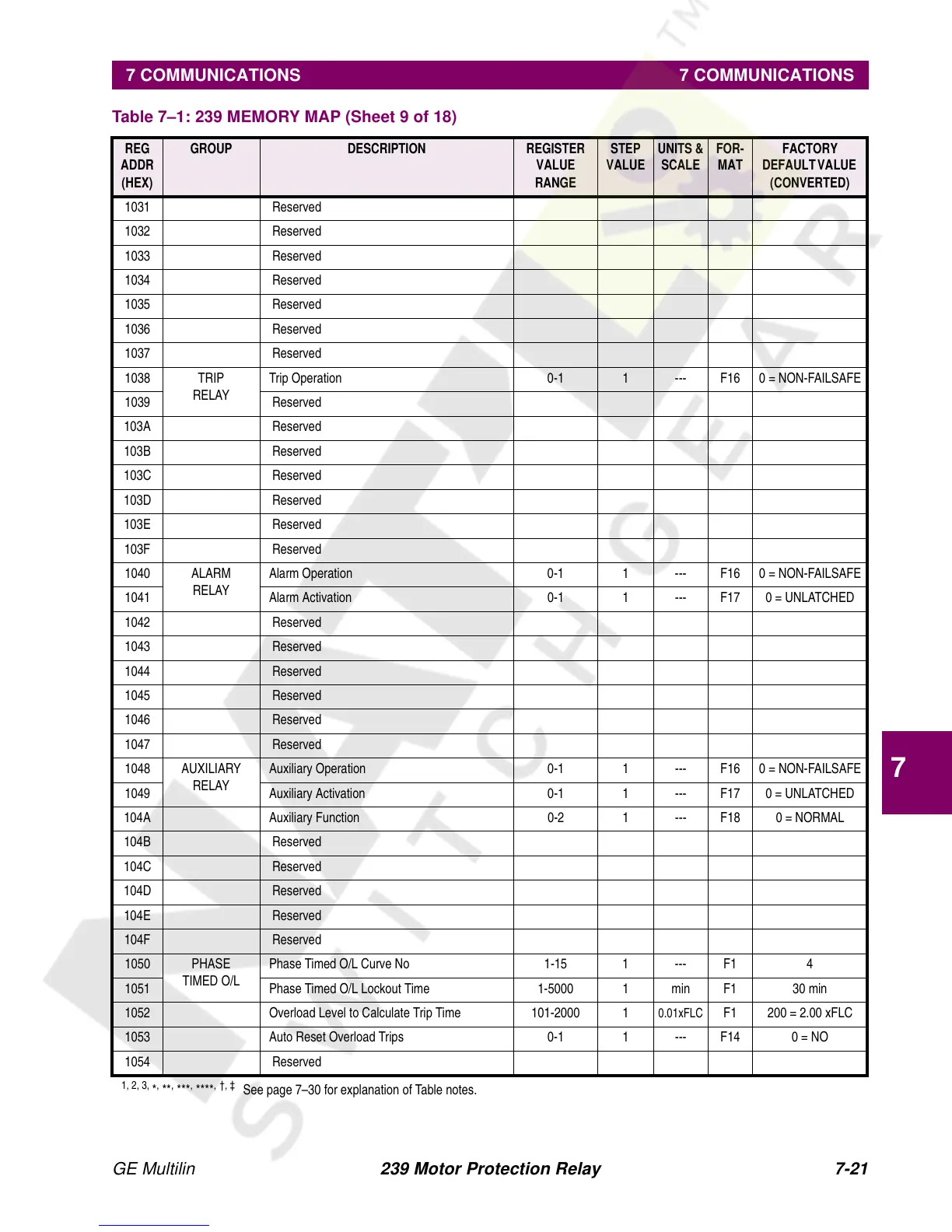

Table 7–1: 239 MEMORY MAP (Sheet 9 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
, †, ‡
See page 7–30 for explanation of Table notes.
