1108 Flash message characters 33 and 34 32-127 1 ASCII F8 " "
1109 Flash message characters 35 and 36 32-127 1 ASCII F8 " "
110A Flash message characters 37 and 38 32-127 1 ASCII F8 " "
110B Flash message characters 39 and 40 32-127 1 ASCII F8 " "
110C Reserved
110D Reserved
110E Reserved
110F Reserved
1110 PROGRAM-
MABLE
MESSAGE
Programmable message characters 1 & 2 32-127 1 ASCII F8 "Ph"
1111 Programmable message characters 3 & 4 32-127 1 ASCII F8 "on "
1112 Programmable message characters 5 & 6 32-127 1 ASCII F8 "e:"
1113 Programmable message characters 7 & 8 32-127 1 ASCII F8 " 9"
1114 Programmable message characters 9 & 10 32-127 1 ASCII F8 "05"
1115 Programmable message characters 11 & 12 32-127 1 ASCII F8 "-2"
1116 Programmable message characters 13 & 14 32-127 1 ASCII F8 "94"
1117 Programmable message characters 15 & 16 32-127 1 ASCII F8 "-6"
1118 Programmable message characters 17 & 18 32-127 1 ASCII F8 "22"
1119 Programmable message characters 19 & 20 32-127 1 ASCII F8 "2 "
111A Programmable message characters 21 & 22 32-127 1 ASCII F8 "GE"
111B Programmable message characters 23 & 24 32-127 1 ASCII F8 "in"
111C Programmable message characters 25 & 26 32-127 1 ASCII F8 "du"
111D Programmable message characters 27 & 28 32-127 1 ASCII F8 "st"
111E Programmable message characters 29 & 30 32-127 1 ASCII F8 "ri"
111F Programmable message characters 31 & 32 32-127 1 ASCII F8 "al"
1120 Programmable message characters 33 & 34 32-127 1 ASCII F8 ".c"
1121 Programmable message characters 35 & 36 32-127 1 ASCII F8 "om"
1122 Programmable message characters 37 & 38 32-127 1 ASCII F8 "/p"
1123 Programmable message characters 39 & 40 32-127 1 ASCII F8 "m "
1124 Reserved
1125 Reserved
1126 Reserved
1127 Reserved
1128 SWITCH
SIMULATION
Simulation 0-1 1 --- F20 0 = OFF
1129 Emergency Restart Input 0-1 1 --- F36 0 = OPEN
112A External Reset Input 0-1 1 --- F36 0 = OPEN
112B Option 1 Input 0-1 1 --- F36 0 = OPEN

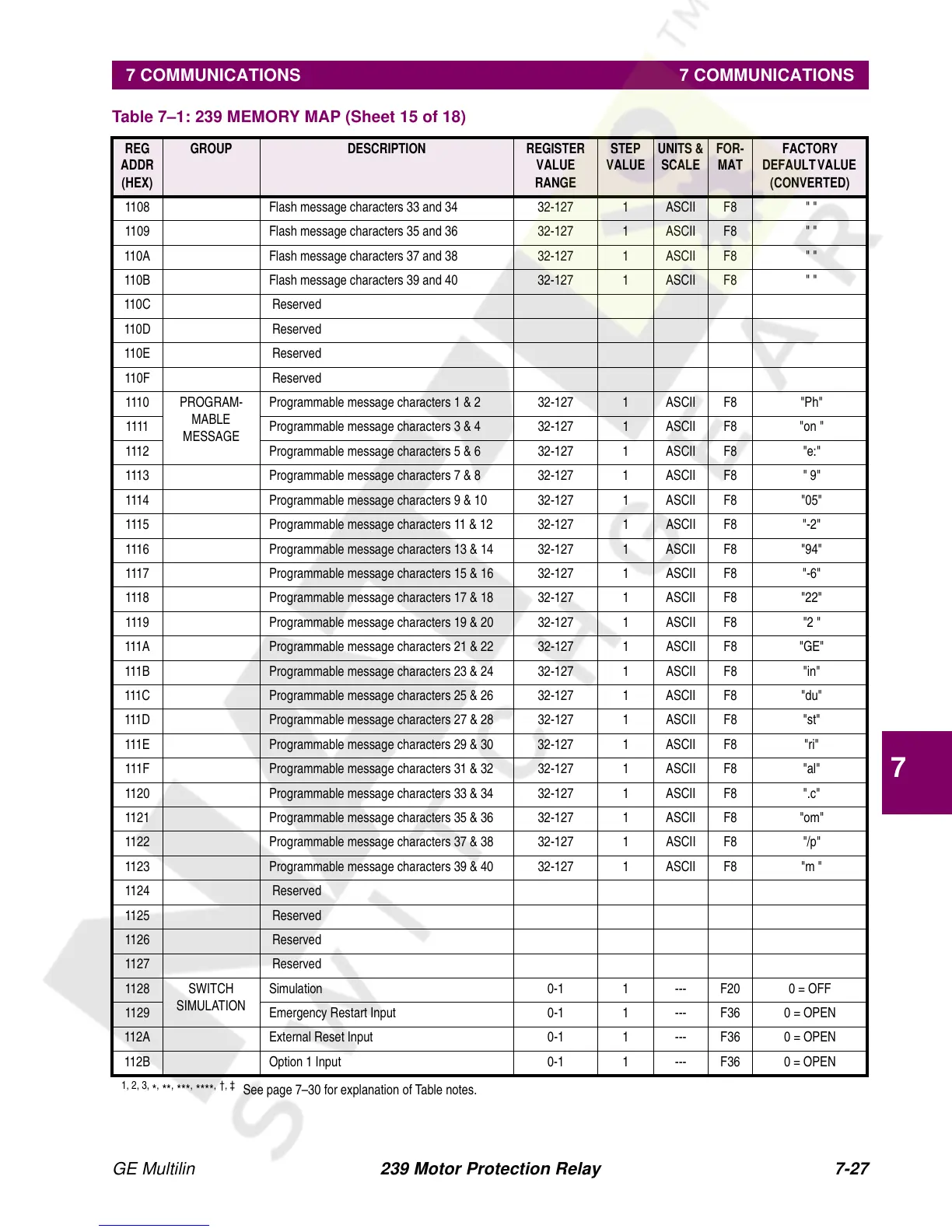

Table 7–1: 239 MEMORY MAP (Sheet 15 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
, †, ‡
See page 7–30 for explanation of Table notes.
