7-28 239 Motor Protection Relay GE Multilin
7 COMMUNICATIONS 7 COMMUNICATIONS
7
112C Option 2 Input 0-1 1 --- F36 0 = OPEN
112D Switch Simulation Period 5-305 5 min F1
3
15 min
112E Reserved
112F Reserved
1130 THERMISTOR
SIMULATION
Simulation 0-1 1 --- F20 0 = OFF
1131 Thermistor Resistance 0-30000 1 Ω F1 0 Ω
1132 Thermistor Simulation Period 5-305 5 min F1
3
15 min
1133 Reserved
1134 Reserved
1135 RTD
SIMULATION
Simulation (RTD Option) 0-1 1 --- F20 0 = OFF
1136 RTD 1 Temperature (RTD Option) 0-240 1 °CF1
1
0 = -40 °C
1137 RTD 1 Temperature (RTD Option) 0-440 1 °FF1
1
0 = -40 °F
1138 RTD 2 Temperature (RTD Option) 0-240 1 °CF1
1
0 = -40 °C
1139 RTD 2 Temperature (RTD Option) 0-440 1 °FF1
1
0 = -40 °F
113A RTD 3 T-1 0-240 1 °CF1
1
0 = -40 °C
113B RTD 3 Temperature (RTD Option) 0-440 1 °FF1
1
0 = -40 °F
113C RTD Simulation Period (RTD Option) 5-305 5 min F1
3
15 min
113D Reserved
113E Reserved
113F TEST
CONFIG.
Disable Start Protection 0-1 1 --- F14 0 = NO
1140 Start Protection Disable Period 5-305 5 min F1
3
15 min
1141 Disable Statistics Logging 0-1 1 --- F14 0 = NO
1142 Reserved
to ↓
118F Reserved
1190 OPTION
SWITCH 1
Option Switch 1 characters 1 and 2 32-127 1 ASCII F8 "OP"
1191 Option Switch 1 characters 3 and 4 32-127 1 ASCII F8 "TI "
1192 Option Switch 1 characters 5 and 6 32-127 1 ASCII F8 "ON"
1193 Option Switch 1 characters 7 and 8 32-127 1 ASCII F8 " S"
1194 Option Switch 1 characters 9 and 10 32-127 1 ASCII F8 "WI"
1195 Option Switch 1 characters 11 and 12 32-127 1 ASCII F8 "TC"
1196 Option Switch 1 characters 13 and 14 32-127 1 ASCII F8 "H "
1197 Option Switch 1 characters 15 and 16 32-127 1 ASCII F8 "1 "
1198 Option Switch 1 characters 17 and 18 32-127 1 ASCII F8 " "
1199 Option Switch 1 characters 19 and 20 32-127 1 ASCII F8 " "
119A 2
nd
Phase CT Primary 5-1500 5 A F1 100 A

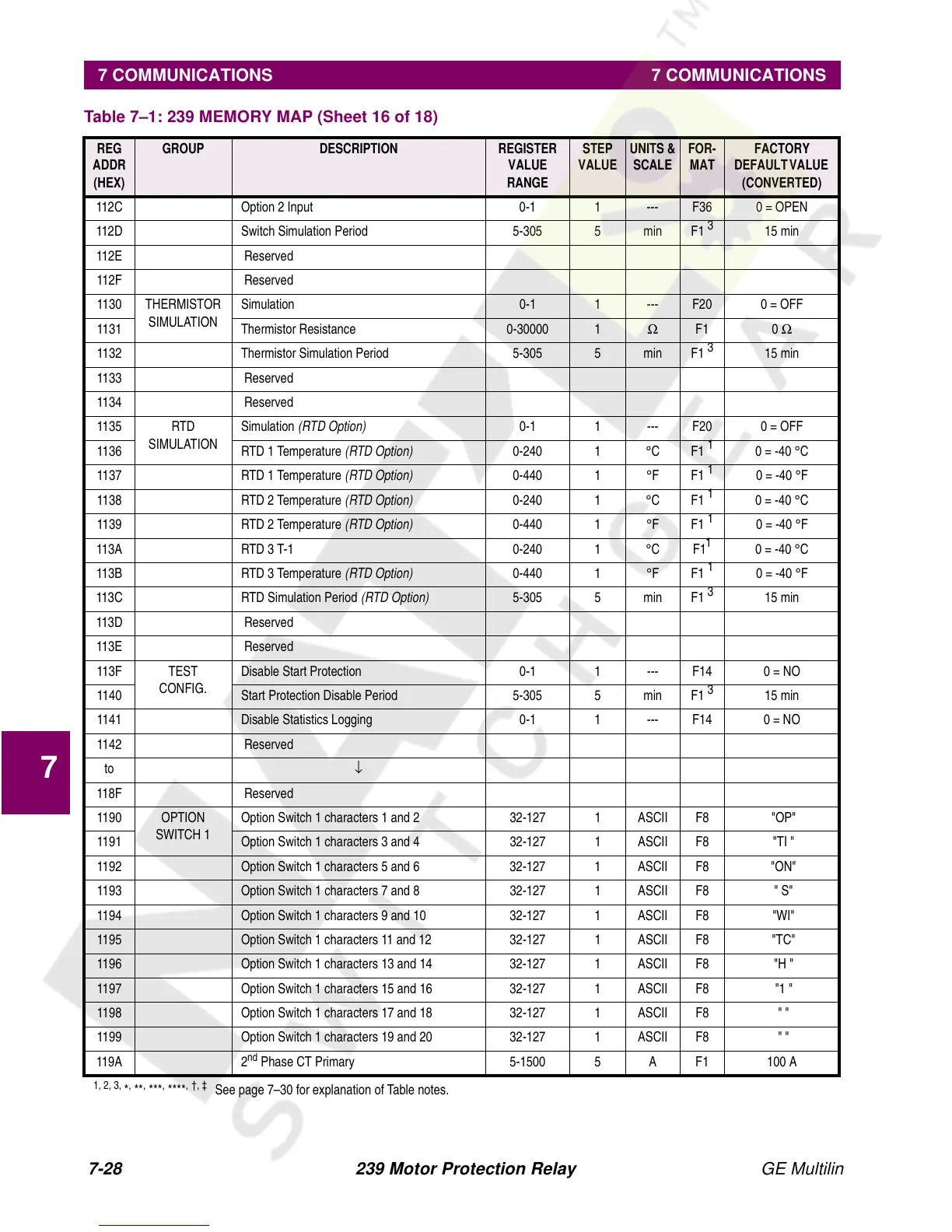

Table 7–1: 239 MEMORY MAP (Sheet 16 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
,
†, ‡
See page 7–30 for explanation of Table notes.
