GE Multilin 239 Motor Protection Relay 7-29
7 COMMUNICATIONS 7 COMMUNICATIONS
7
119B 2
nd
Motor Full Load Current 1-1500 1 *** F1 100 A
119C 2
nd
Phase Timed O/L Curve No 1-15 1 --- F1 4
119D 2
nd
Phase S/C Trip 0-3 1 --- F19 0 = OFF
119E 2
nd
Phase S/C Pickup 10-110 1 0.1 xCT F1 100 = 10.0 xCT
119F 2
nd
Phase S/C Delay 0-60000 10 ms F1
‡
0 ms
11A0 Reserved
to ↓
11AF Reserved
11B0 OPTION
SWITCH 2
Option Switch 2 characters 1 and 2 32-127 1 ASCII F8 "OP"
11B1 Option Switch 2 characters 3 and 4 32-127 1 ASCII F8 "TI "
11B2 Option Switch 2 characters 5 and 6 32-127 1 ASCII F8 "ON"
1193 Option Switch 2 characters 7 and 8 32-127 1 ASCII F8 " S"
11B4 Option Switch 2 characters 9 and 10 32-127 1 ASCII F8 "WI"
11B5 Option Switch 2 characters 11 and 12 32-127 1 ASCII F8 "TC"
11B6 Option Switch 2 characters 13 and 14 32-127 1 ASCII F8 "H "
11B7 Option Switch 2 characters 15 and 16 32-127 1 ASCII F8 "2 "
11B8 Option Switch 2 characters 17 and 18 32-127 1 ASCII F8 " "
11B9 Option Switch 2 characters 19 and 20 32-127 1 ASCII F8 " "
11BA 3
rd
Phase CT Primary 5-1500 5 A F1 100 A
11BB 3
rd
Motor Full Load Current 1-1500 1 *** F1 100 A
11BC 3
rd
Phase Timed O/L Curve No 1-15 1 --- F1 4
11BD 3
rd
Phase S/C Trip 0-3 1 --- F19 0 = OFF
11BE 3
rd
Phase S/C Pickup 10-110 1 0.1 xCT F1 100 = 10.0 xCT
11BF 3
rd
Phase S/C Delay 0-60000 10 ms F1
‡
0 ms
11C0 4
th
Phase CT Primary 5-1500 5 A F1 100 A
11C1 4
th
Motor Full Load Current 1-1500 1 *** F1 100 A
11C2 4
th
Phase Timed O/L Curve No 1-15 1 --- F1 4
11C3 4
th
Phase S/C Trip 0-3 1 --- F19 0 = OFF
11C4 4
th
Phase S/C Pickup 10-110 1 0.1 xCT F1 100 = 10.0 xCT
11C5 4
th
Phase S/C Delay 0-60000 10 ms F1
‡
0 ms
11C6 Reserved
11C7 Reserved
11C8 Reserved
11C9 Reserved
11CA Reserved
11CB Reserved

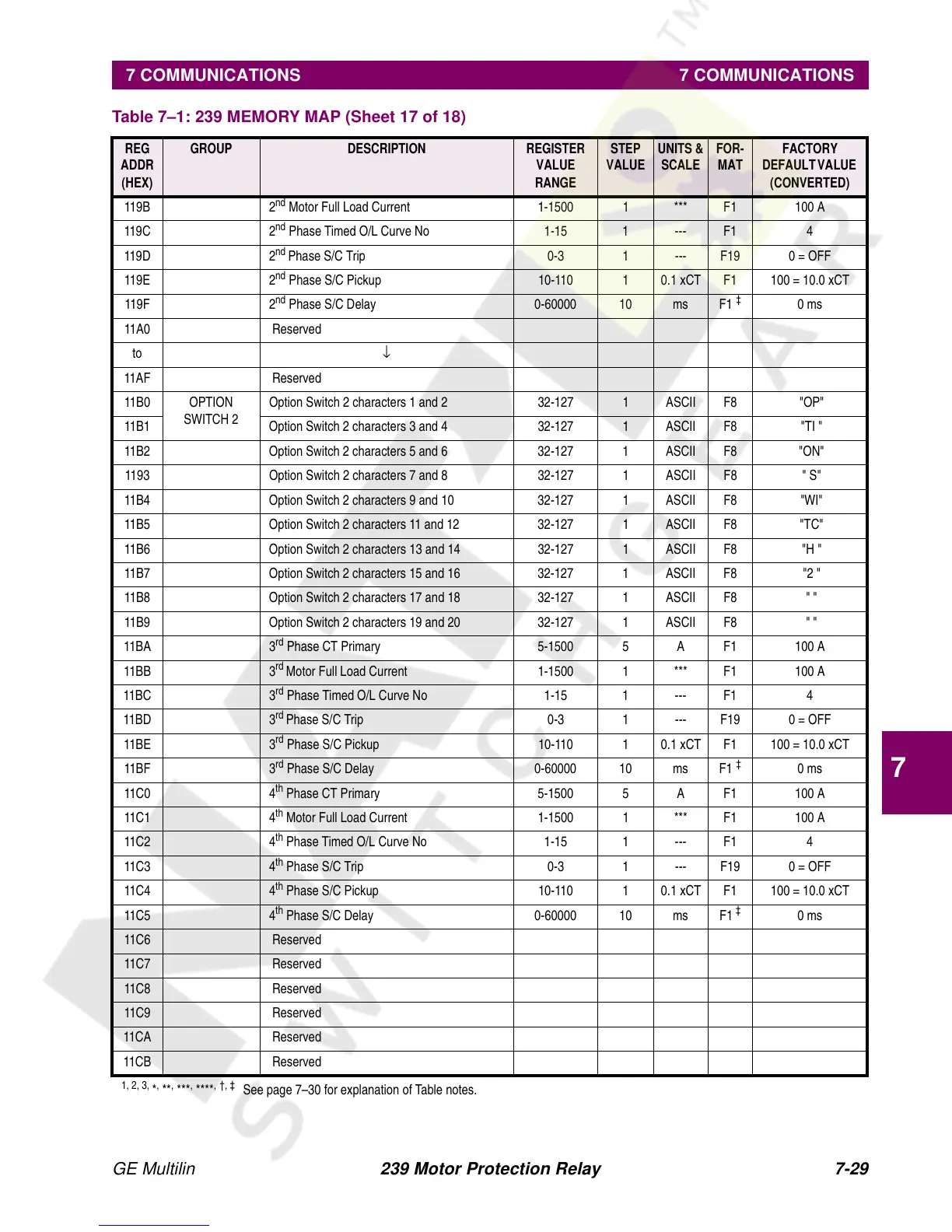

Table 7–1: 239 MEMORY MAP (Sheet 17 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
, †, ‡
See page 7–30 for explanation of Table notes.
