F15 UNSIGNED INTEGER
- GROUND SENSING TYPE
FFFF
0 = Off ---
1 = Core Bal. 50:0.025 ---
2 = Core Bal. x:5 ---
3 = Residual ---
F16 UNSIGNED INTEGER
- FAILSAFE/NONFAILSAFE
FFFF
0 = Non-failsafe ---
1 = Failsafe ---
F17 UNSIGNED INTEGER
- UNLATCHED / LATCHED
FFFF
0 = Unlatched ---
1 = Latched ---
F18 UNSIGNED INTEGER
- AUX RELAY FUNCTION
FFFF
0 = Normal ---
1 = Trips ---
2 = Alarms ---
F19 PHASE S/C TRIP FFFF
0 = Off ---
1 = Trip ---
2 = Auxiliary ---
3 = Trip & Auxiliary ---
F20 UNSIGNED INTEGER - ON / OFF FFFF
0 = Off ---
1 = On ---
F21 UNDERCURRENT FFFF
0 = Off ---
1 = Alarm ---
2 = Auxiliary ---
3 = Trip ---
4 = Alarm & Auxiliary ---
5 = Trip & Auxiliary ---
F22 GROUND ALARM FFFF
0 = Off ---
1 = Momentary ---
2 = Latched ---
F23 THERMISTOR/MECHANICAL JAM FFFF
0 = Off ---

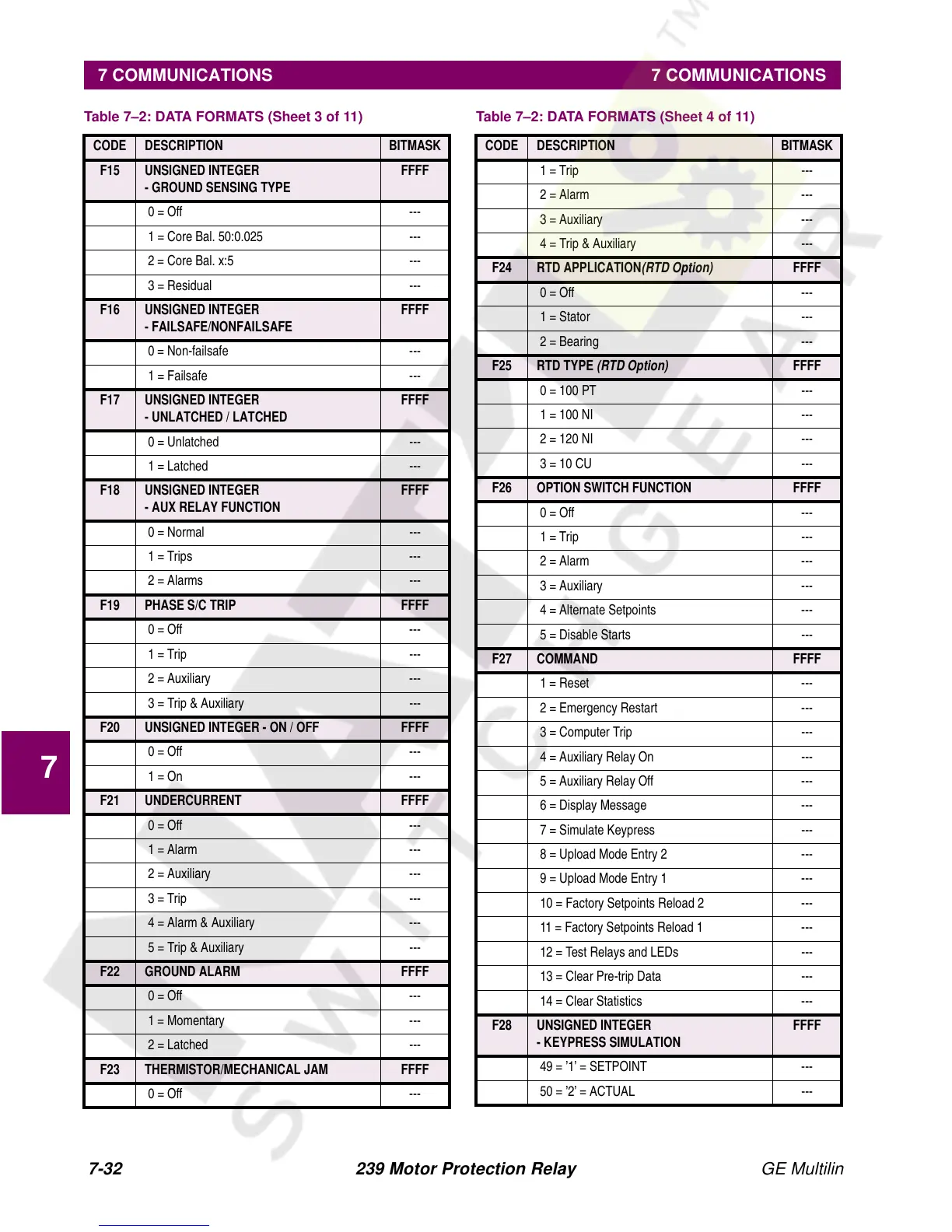

Table 7–2: DATA FORMATS (Sheet 3 of 11)
CODE DESCRIPTION BITMASK
1 = Trip ---
2 = Alarm ---
3 = Auxiliary ---
4 = Trip & Auxiliary ---
F24 RTD APPLICATION(RTD Option) FFFF
0 = Off ---
1 = Stator ---
2 = Bearing ---
F25 RTD TYPE (RTD Option) FFFF
0 = 100 PT ---
1 = 100 NI ---
2 = 120 NI ---
3 = 10 CU ---
F26 OPTION SWITCH FUNCTION FFFF
0 = Off ---
1 = Trip ---
2 = Alarm ---
3 = Auxiliary ---
4 = Alternate Setpoints ---
5 = Disable Starts ---
F27 COMMAND FFFF
1 = Reset ---
2 = Emergency Restart ---
3 = Computer Trip ---
4 = Auxiliary Relay On ---
5 = Auxiliary Relay Off ---
6 = Display Message ---
7 = Simulate Keypress ---
8 = Upload Mode Entry 2 ---
9 = Upload Mode Entry 1 ---
10 = Factory Setpoints Reload 2 ---
11 = Factory Setpoints Reload 1 ---
12 = Test Relays and LEDs ---
13 = Clear Pre-trip Data ---
14 = Clear Statistics ---
F28 UNSIGNED INTEGER
- KEYPRESS SIMULATION
FFFF
49 = ’1’ = SETPOINT ---
50 = ’2’ = ACTUAL ---
Table 7–2: DATA FORMATS (Sheet 4 of 11)
CODE DESCRIPTION BITMASK
