GE Multilin 239 Motor Protection Relay 7-33
7 COMMUNICATIONS 7 COMMUNICATIONS
7
51 = ’3’ = RESET ---
52 = ’4’ = STORE ---
53 = ’5’ = MESSAGE UP ---
54 = ’6’ = MESSAGE DOWN ---
55 = ’7’ = MESSAGE LEFT ---
56 = ’8’ = MESSAGE RIGHT ---
57 = ’9’ = VALUE UP ---
97 = ’a’ = VALUE DOWN ---
F29 UNSIGNED INTEGER - SYSTEM STATUS FFFF
0 = Normal ---
1 = Trip ---
2 = Alarm ---
3 = Trip and Alarm ---
4 = Relays & LEDs Test or Simulation On ---
F30 UNSIGNED INTEGER
- RELAY/LED TEST DATA
FFFF
0 = Relay/LED Test Off ---
1 = Relay/LED Test On ---
F31 RELAY/LED TEST DATA FFFF
Trip Relay 0001
Alarm Relay 0002
Auxiliary Relay 0004
Service Relay 0008
Trip LED 0010
Alarm LED 0020
Auxiliary LED 0040
Service LED 0080
Pickup LED 0100
Communicate LED 0200
F33 RTD SENSOR FAILURE CAUSE
(RTD Option)
FFFF
No Sensor Failure Alarm 0000
RTD 1 0001
RTD 2 0002
RTD 3 0004
F35 PARITY TYPE FFFF
NONE 0000
EVEN 0001
ODD 0002

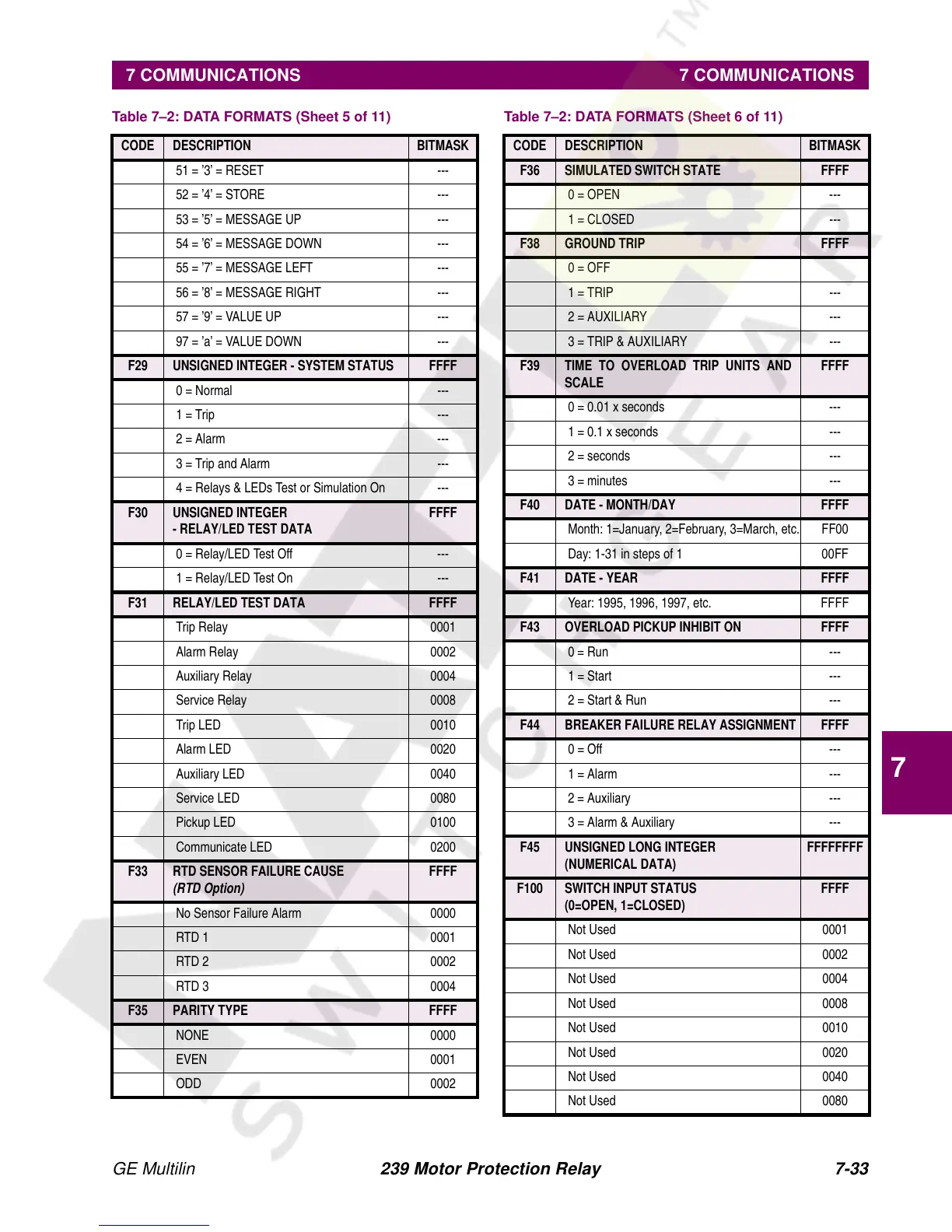

Table 7–2: DATA FORMATS (Sheet 5 of 11)
CODE DESCRIPTION BITMASK
F36 SIMULATED SWITCH STATE FFFF
0 = OPEN ---
1 = CLOSED ---
F38 GROUND TRIP FFFF
0 = OFF
1 = TRIP ---
2 = AUXILIARY ---
3 = TRIP & AUXILIARY ---
F39 TIME TO OVERLOAD TRIP UNITS AND
SCALE
FFFF
0 = 0.01 x seconds ---
1 = 0.1 x seconds ---
2 = seconds ---
3 = minutes ---
F40 DATE - MONTH/DAY FFFF
Month: 1=January, 2=February, 3=March, etc. FF00
Day: 1-31 in steps of 1 00FF
F41 DATE - YEAR FFFF
Year: 1995, 1996, 1997, etc. FFFF
F43 OVERLOAD PICKUP INHIBIT ON FFFF
0 = Run ---
1 = Start ---
2 = Start & Run ---
F44 BREAKER FAILURE RELAY ASSIGNMENT FFFF
0 = Off ---
1 = Alarm ---
2 = Auxiliary ---
3 = Alarm & Auxiliary ---
F45 UNSIGNED LONG INTEGER
(NUMERICAL DATA)
FFFFFFFF
F100 SWITCH INPUT STATUS
(0=OPEN, 1=CLOSED)
FFFF
Not Used 0001
Not Used 0002
Not Used 0004
Not Used 0008
Not Used 0010
Not Used 0020
Not Used 0040
Not Used 0080
Table 7–2: DATA FORMATS (Sheet 6 of 11)
CODE DESCRIPTION BITMASK
