7-34 239 Motor Protection Relay GE Multilin
7 COMMUNICATIONS 7 COMMUNICATIONS
7
Access 0100
Emergency Restart 0200
External Reset 0400
Option 1 0800
Option 2 1000
Not Used 2000
Not Used 4000
Not Used 8000
F101 LED STATUS FLAGS: (0 = OFF, 1 = ON) FFFF
Trip 0001
Auxiliary 0002
Pickup 0004
Alarm 0008
Service 0010
Communicate 0020
Not Used 0040
Not Used 0080
Not Used 0100
Not Used 0200
Not Used 0400
Not Used 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000
F102 ALARM STATUS FLAGS: FFFF
Immediate Overload Alarm 0001
Undercurrent Alarm 0002
Unbalance Alarm 0004
Ground Alarm 0008
Thermistor Alarm 0010
Thermistor Open Alarm 0020
Stator RTD Alarm (RTD Option) 0040
Bearing RTD Alarm (RTD Option) 0080
RTD Failure Alarm (RTD Option) 0100
Communication Failure 0200
Internal Fault Alarm 0400
Thermal Capacity Alarm 0800
Option Switch 1 Alarm 1000

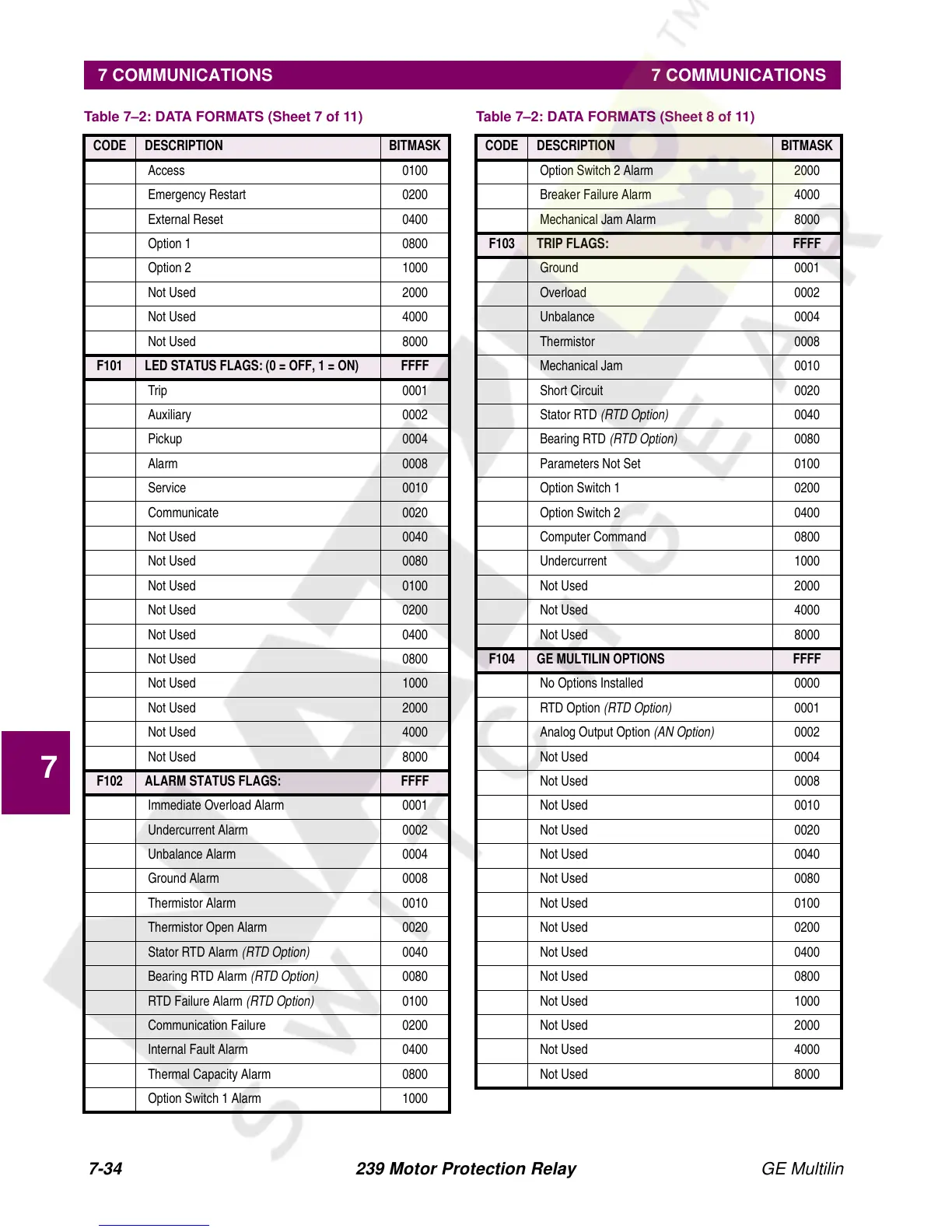

Table 7–2: DATA FORMATS (Sheet 7 of 11)
CODE DESCRIPTION BITMASK
Option Switch 2 Alarm 2000
Breaker Failure Alarm 4000
Mechanical Jam Alarm 8000
F103 TRIP FLAGS: FFFF
Ground 0001
Overload 0002
Unbalance 0004
Thermistor 0008
Mechanical Jam 0010
Short Circuit 0020
Stator RTD (RTD Option) 0040
Bearing RTD (RTD Option) 0080
Parameters Not Set 0100
Option Switch 1 0200
Option Switch 2 0400
Computer Command 0800
Undercurrent 1000
Not Used 2000
Not Used 4000
Not Used 8000
F104 GE MULTILIN OPTIONS FFFF
No Options Installed 0000
RTD Option (RTD Option) 0001
Analog Output Option (AN Option) 0002
Not Used 0004
Not Used 0008
Not Used 0010
Not Used 0020
Not Used 0040
Not Used 0080
Not Used 0100
Not Used 0200
Not Used 0400
Not Used 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000
Table 7–2: DATA FORMATS (Sheet 8 of 11)
CODE DESCRIPTION BITMASK
