7 COMMUNICATIONS 7 COMMUNICATIONS
7
F105 INTERNAL FAULT ERROR CODE FFFF
ADC Reference Out of Range 0001
HC705 Processor not Responding 0002
Switch Input Circuit Fault 0004
RTD Reference Out of Range (RTD Option) 0008
HC705 MOR Byte Not Programmed 0010
Not Used 0020
Not Used 0040
Not Used 0080
Not Used 0100
Not Used 0200
Not Used 0400
Not Used 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000
F106 AUXILIARY STATUS FLAGS: FFFF
Undercurrent 0001
Option Switch 1 0002
Option Switch 2 0004
Alarms 0008
Trips 0010
Short Circuit 0020
Ground 0040
Thermistor 0080
Breaker Failure 0100
Mechanical Jam 0200
Not Used 0400
Not Used 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000
F107 RELAYS
(0 = DE-ENERGIZED, 1 = ENERGIZED)
FFFF
Trip Relay 0001
Alarm Relay 0002
Auxiliary Relay 0004

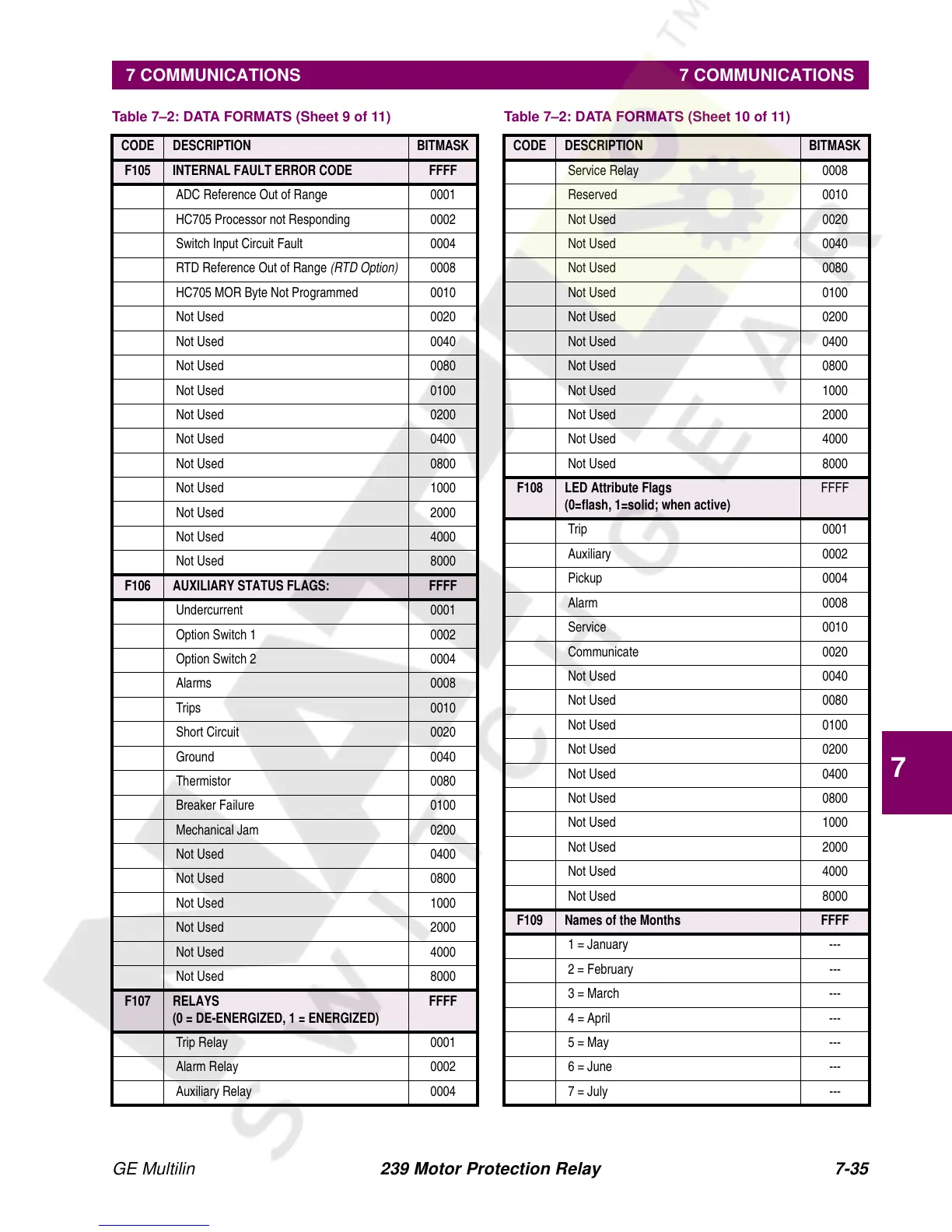

Table 7–2: DATA FORMATS (Sheet 9 of 11)
CODE DESCRIPTION BITMASK
Service Relay 0008
Reserved 0010
Not Used 0020
Not Used 0040
Not Used 0080
Not Used 0100
Not Used 0200
Not Used 0400
Not Used 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000
F108 LED Attribute Flags
(0=flash, 1=solid; when active)
FFFF
Trip 0001
Auxiliary 0002
Pickup 0004
Alarm 0008
Service 0010
Communicate 0020
Not Used 0040
Not Used 0080
Not Used 0100
Not Used 0200
Not Used 0400
Not Used 0800
Not Used 1000
Not Used 2000
Not Used 4000
Not Used 8000
F109 Names of the Months FFFF
1 = January ---
2 = February ---
3 = March ---
4 = April ---
5 = May ---
6 = June ---
7 = July ---
Table 7–2: DATA FORMATS (Sheet 10 of 11)
CODE DESCRIPTION BITMASK
