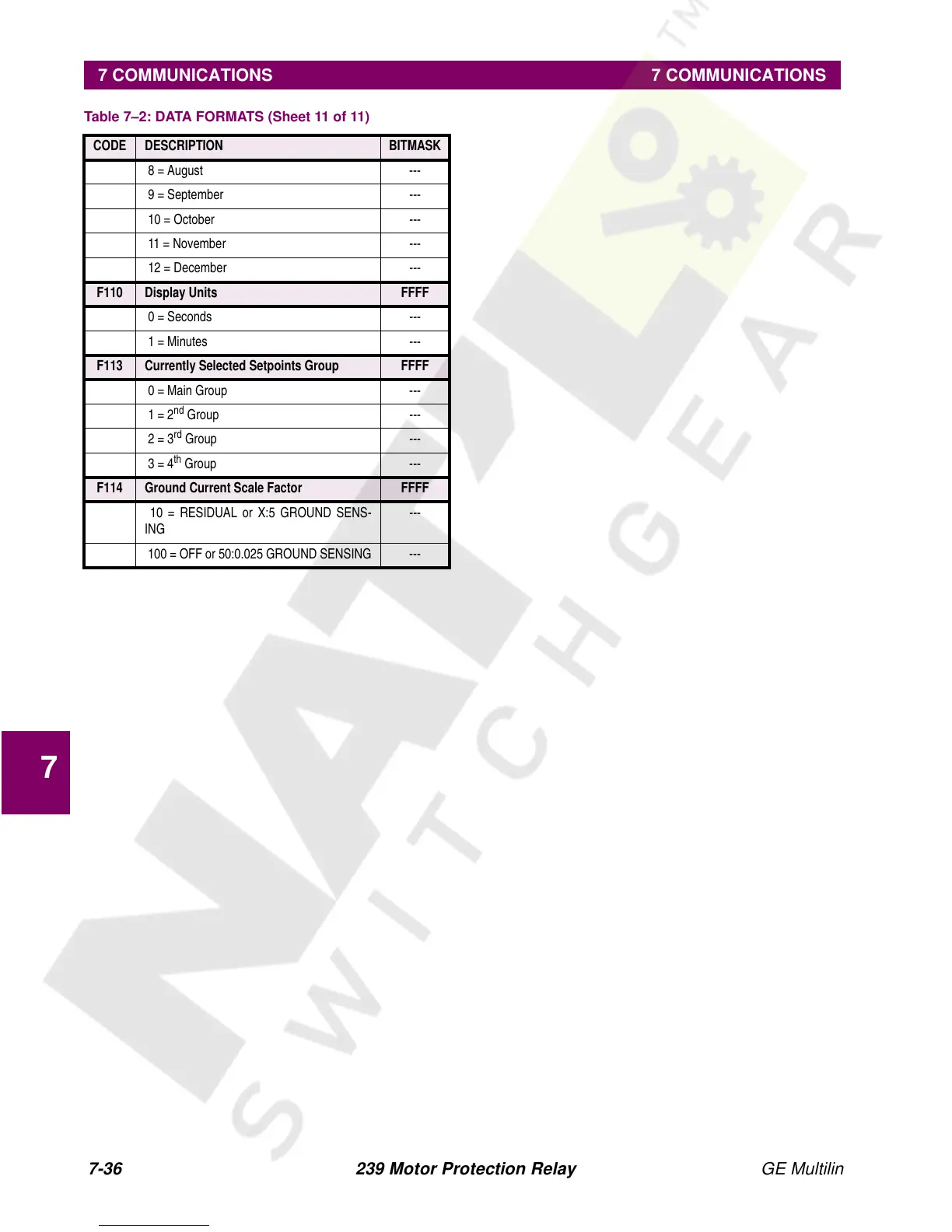

7 COMMUNICATIONS 7 COMMUNICATIONS
7
8 = August ---
9 = September ---
10 = October ---
11 = November ---
12 = December ---
F110 Display Units FFFF
0 = Seconds ---
1 = Minutes ---
F113 Currently Selected Setpoints Group FFFF
0 = Main Group ---
1 = 2
nd
Group ---
2 = 3
rd
Group ---
3 = 4
th
Group ---
F114 Ground Current Scale Factor FFFF
10 = RESIDUAL or X:5 GROUND SENS-
ING
---
100 = OFF or 50:0.025 GROUND SENSING ---
Table 7–2: DATA FORMATS (Sheet 11 of 11)
CODE DESCRIPTION BITMASK
