GE Multilin 239 Motor Protection Relay 3-5
3 OPERATION 3 OPERATION
3

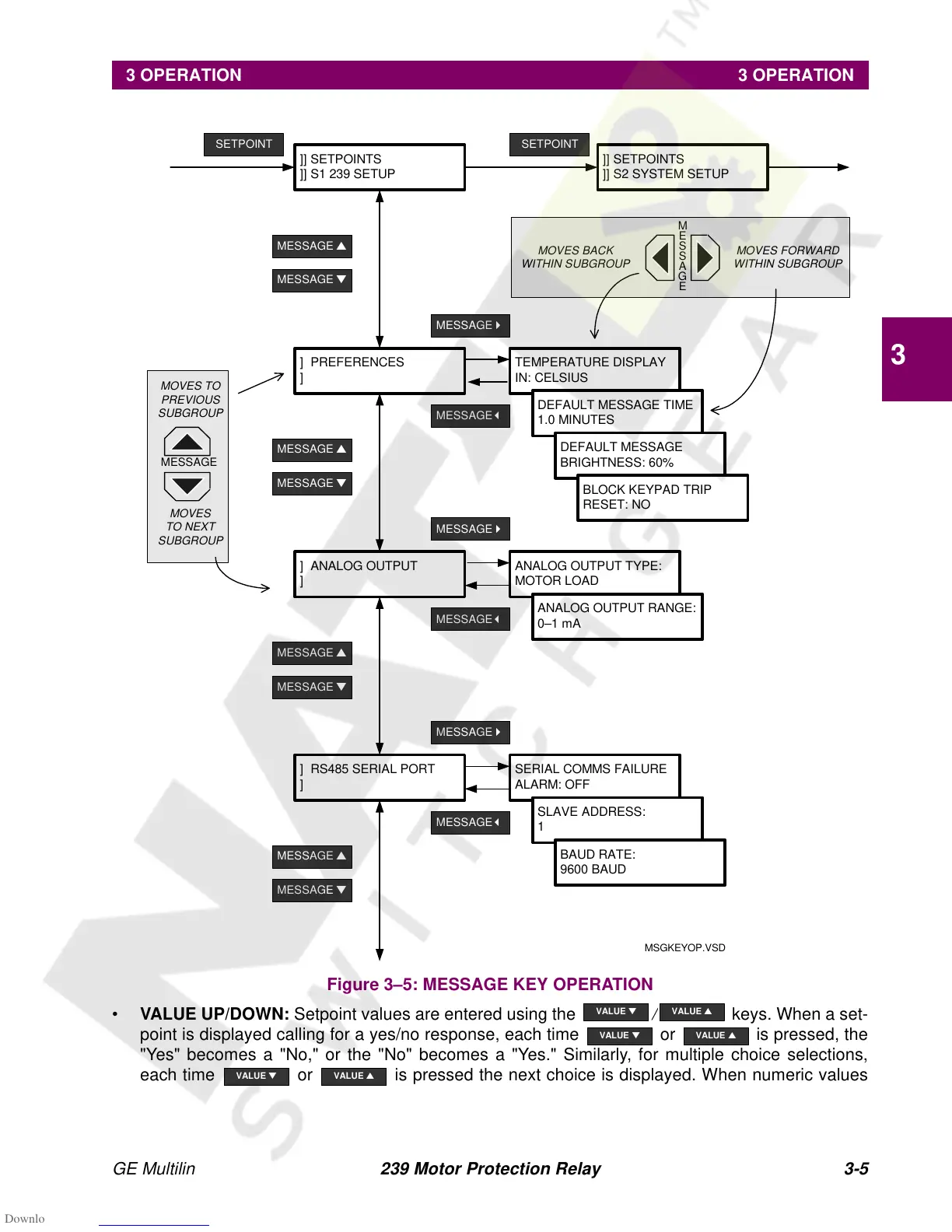

Figure 3–5: MESSAGE KEY OPERATION
• VALUE UP/DOWN: Setpoint values are entered using the
/ keys. When a set-
point is displayed calling for a yes/no response, each time or is pressed, the
"Yes" becomes a "No," or the "No" becomes a "Yes." Similarly, for multiple choice selections,
each time or is pressed the next choice is displayed. When numeric values
]] SETPOINTS
]] S1 239 SETUP
] PREFERENCES
]
] ANALOG OUTPUT
]
] RS485 SERIAL PORT
]
TEMPERATURE DISPLAY
IN: CELSIUS
DEFAULT MESSAGE TIME
1.0 MINUTES
DEFAULT MESSAGE
BRIGHTNESS: 60%
BLOCK KEYPAD TRIP
RESET: NO
MESSAGE ▲
MESSAGE ▼
SETPOINT
MESSAGE 4
MESSAGE 3
]] SETPOINTS
]] S2 SYSTEM SETUP
SETPOINT
ANALOG OUTPUT TYPE:
MOTOR LOAD
ANALOG OUTPUT RANGE:
0–1 mA
MESSAGE 4
MESSAGE 3
SERIAL COMMS FAILURE
ALARM: OFF
SLAVE ADDRESS:
1
BAUD RATE:
9600 BAUD
MESSAGE ▲
MESSAGE ▼
MESSAGE ▲
MESSAGE ▼
MESSAGE 4
MESSAGE 3
MESSAGE ▲
MESSAGE ▼
M
E
S
S
A
G
E
MOVES FORWARD
WITHIN SUBGROUP
MOVES BACK
WITHIN SUBGROUP
MOVES
TO NEXT
SUBGROUP
MOVES TO
PREVIOUS
SUBGROUP
MESSAGE
MSGKEYOP.VSD
VALUE ▼ VALUE ▲
VALUE ▼ VALUE ▲
VALUE ▼
VALUE ▲
